Power Mirror Switch: Locations

Door Component Views

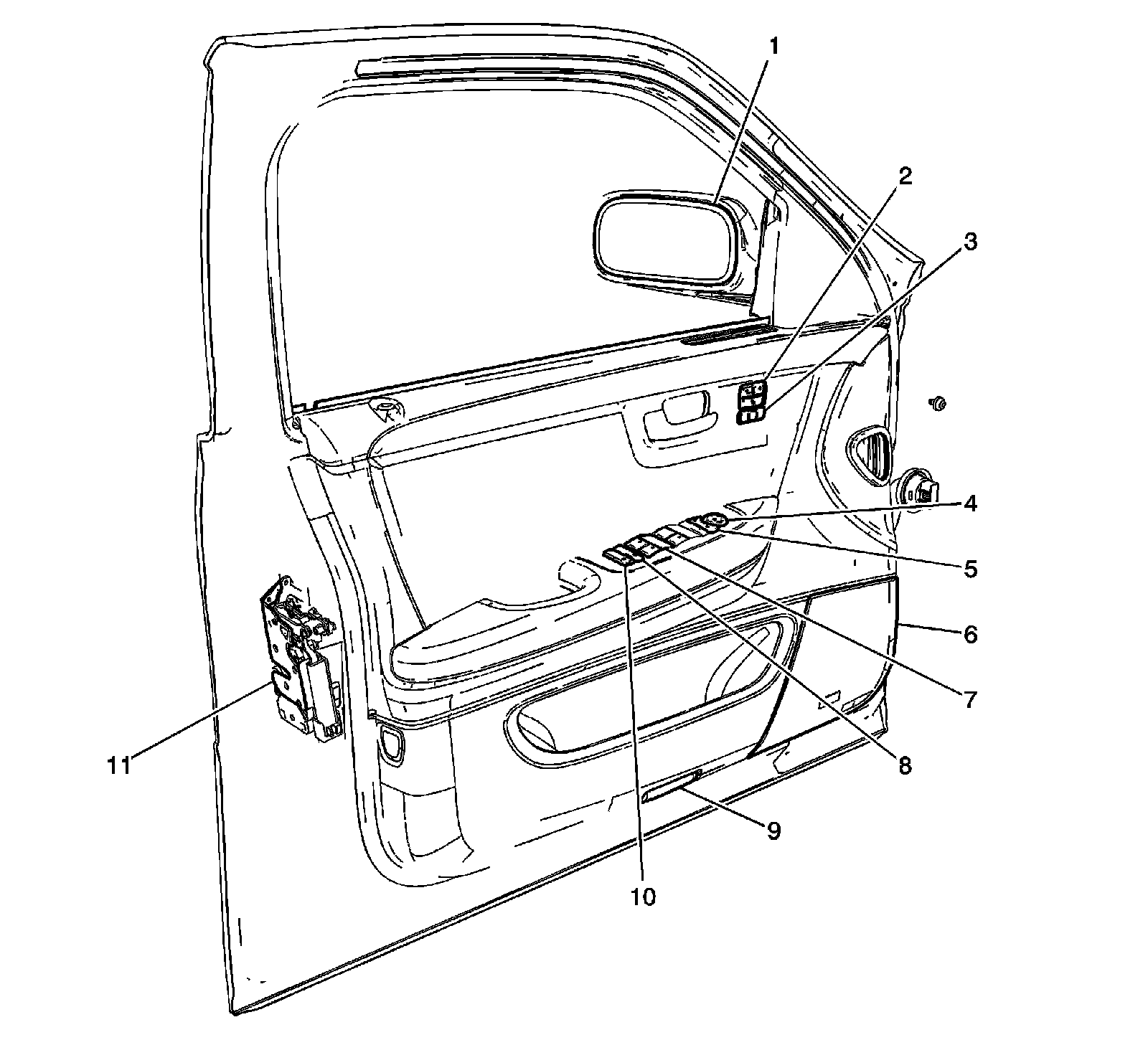

Driver Door




1 - Outside Rearview Mirror - Driver
2 - Heated and Cooled Seat Switch - Driver (KB6)
3 - Memory/Personalization Switch (A45)
4 - Outside Rearview Mirror Switch
5 - Outside Power Folding Mirror Switch (DL3)
6 - Speaker - Left Front Door
7 - Power Window Switches
8 - Window Lock-Out Switch
9 - Courtesy Lamp - Left Front Door
10 - Door Lock-Out Switch
11 - Door Latch Assembly

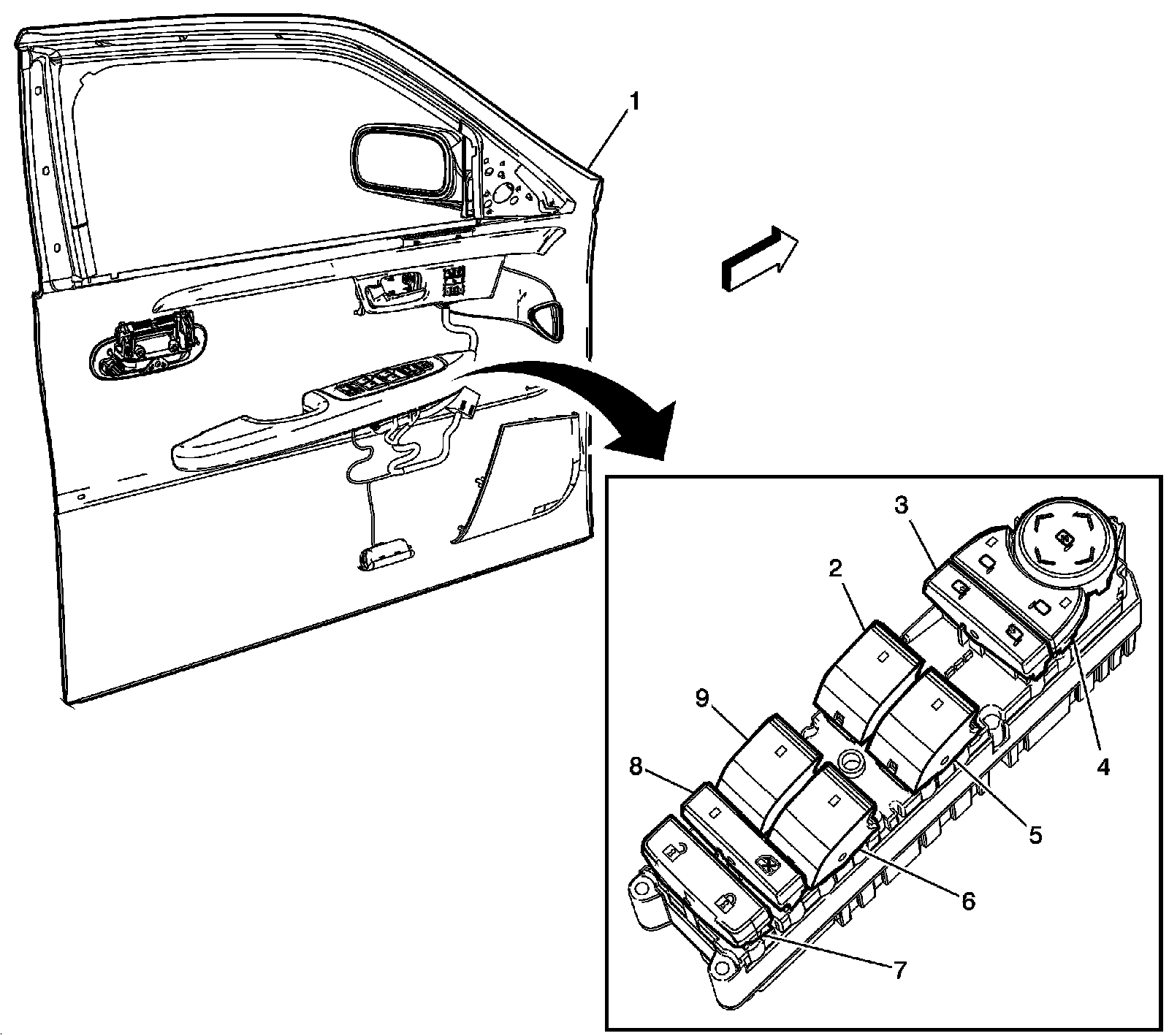

Driver Door Module - Window/Lock Switch




1 - Driver Door
2 - Driver Window Switch
3 - Outside Rearview Mirror Retract/Extend Switch (DL3)
4 - Outside Rearview Mirror Switch
5 - Right Front Window Switch
6 - Right Rear Window Switch
7 - Door Lock/ Unlock Switch
8 - Window Lockout Switch
9 - Left Rear Window Switch
