Outside Rearview Mirror Schematics

Outside Rearview Mirror Schematics

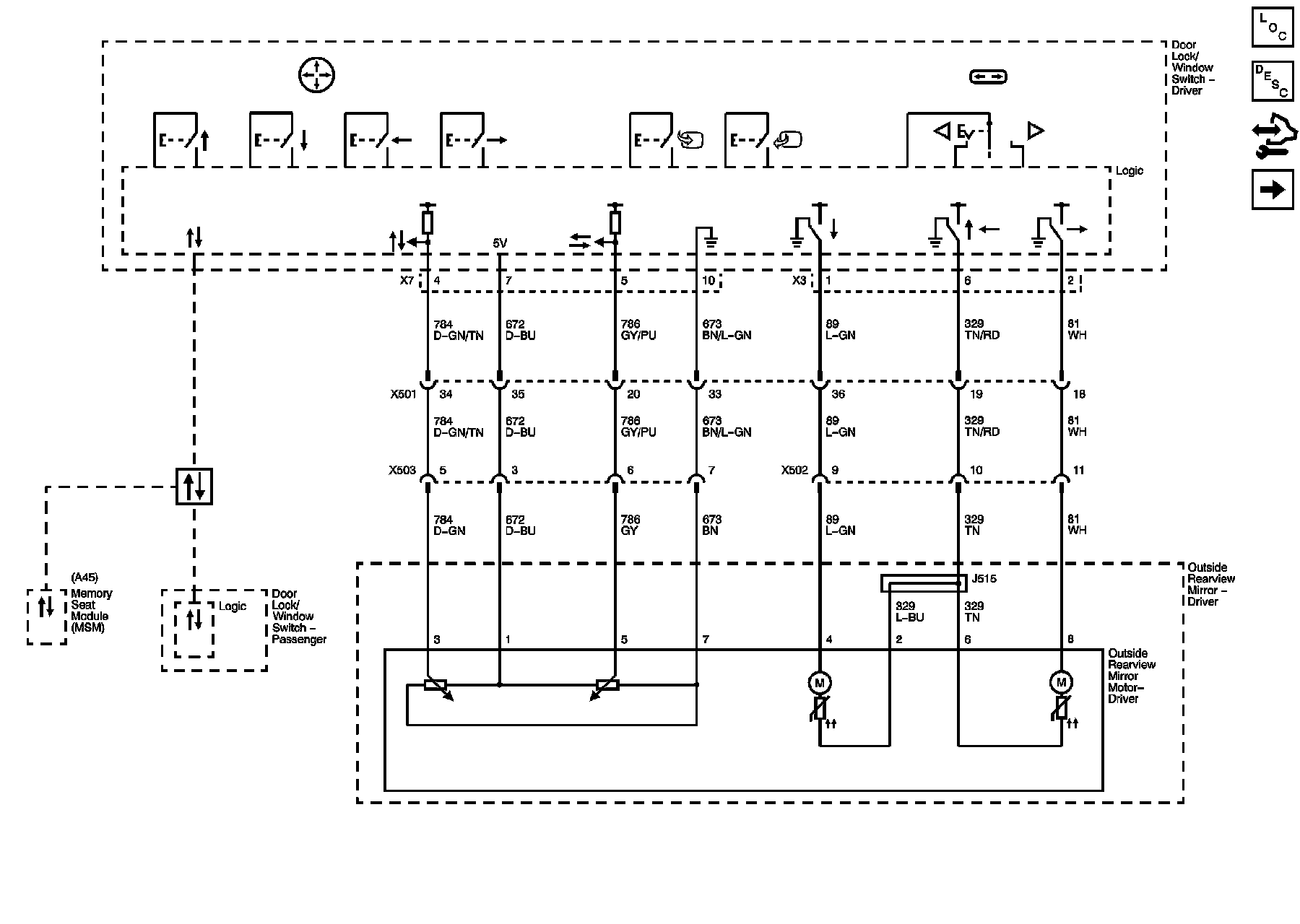

Driver Outside Rearview Mirror

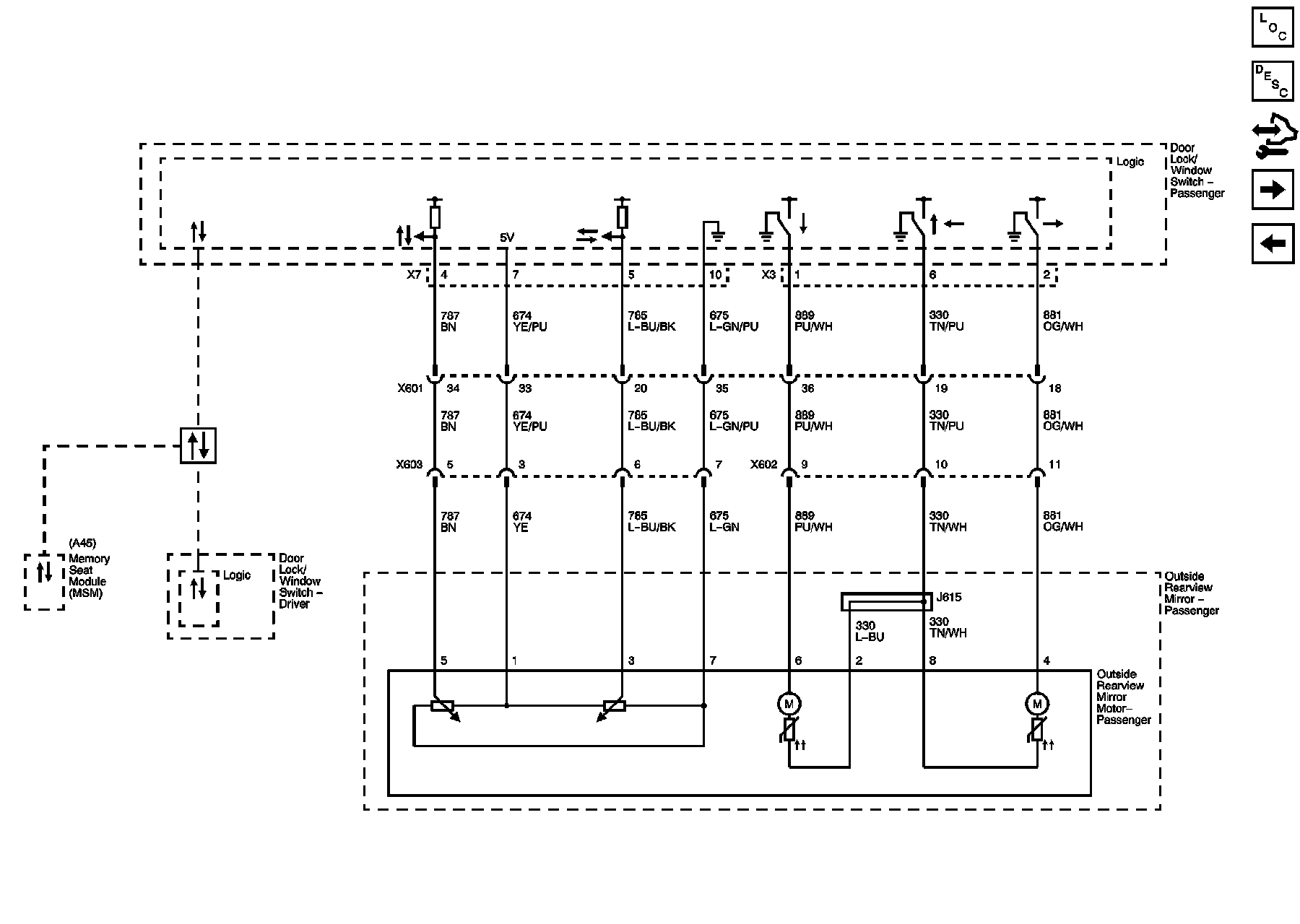

Passenger Outside Rearview Mirror

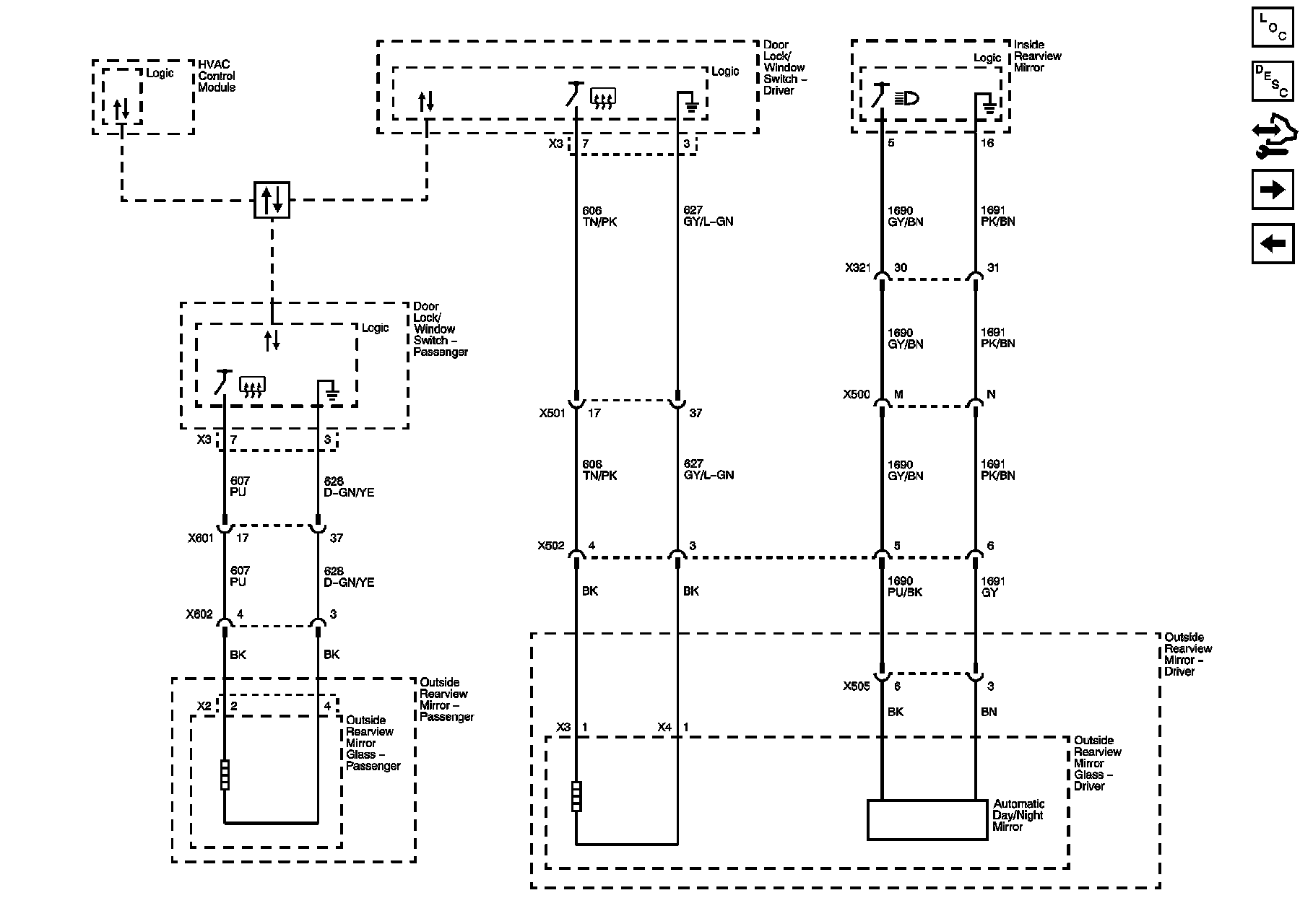

Heated Mirrors (DR2)

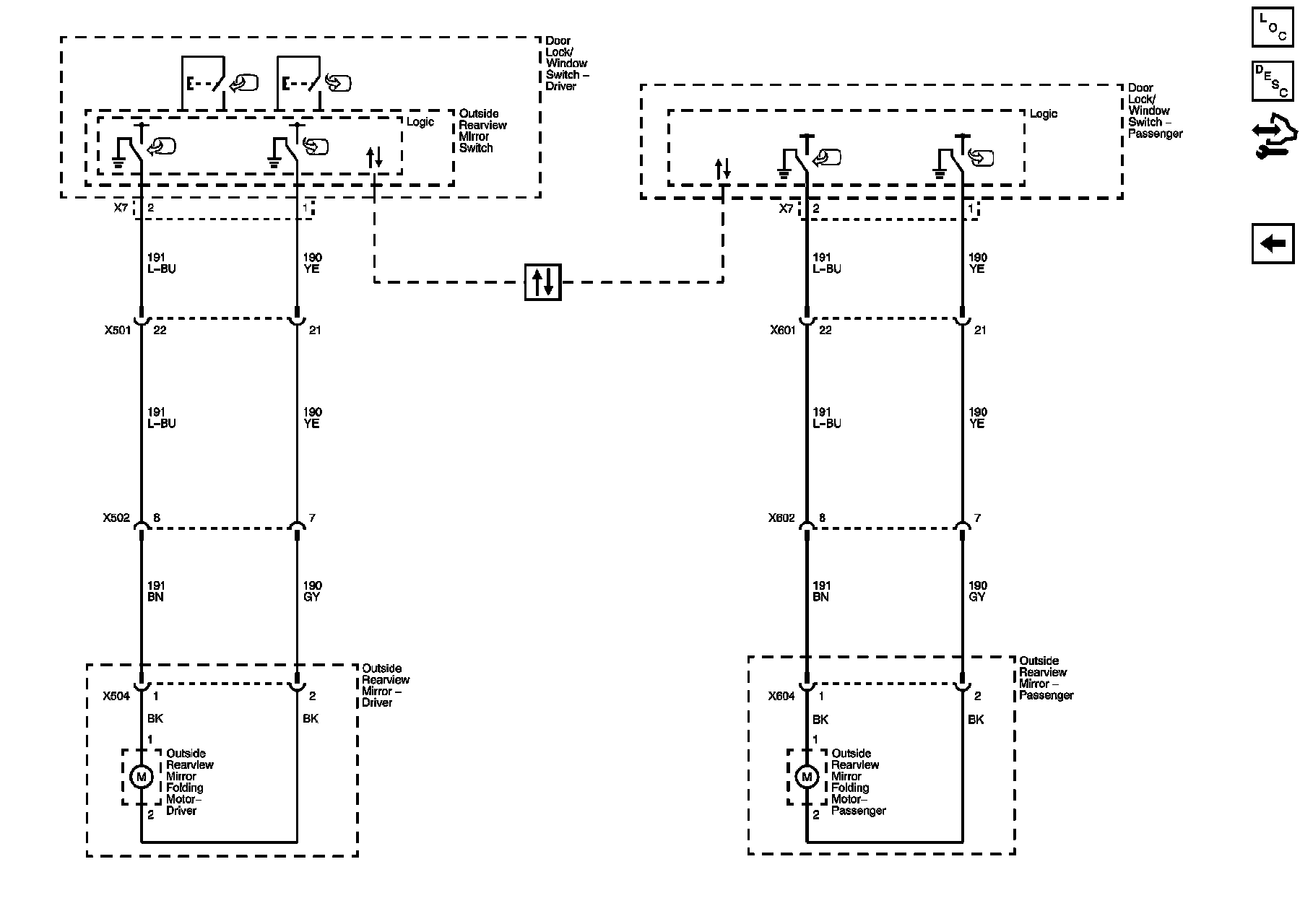

Folding Mirrors (DL3)
