Door Lock/Indicator Schematics




Door Lock/Indicator Schematics

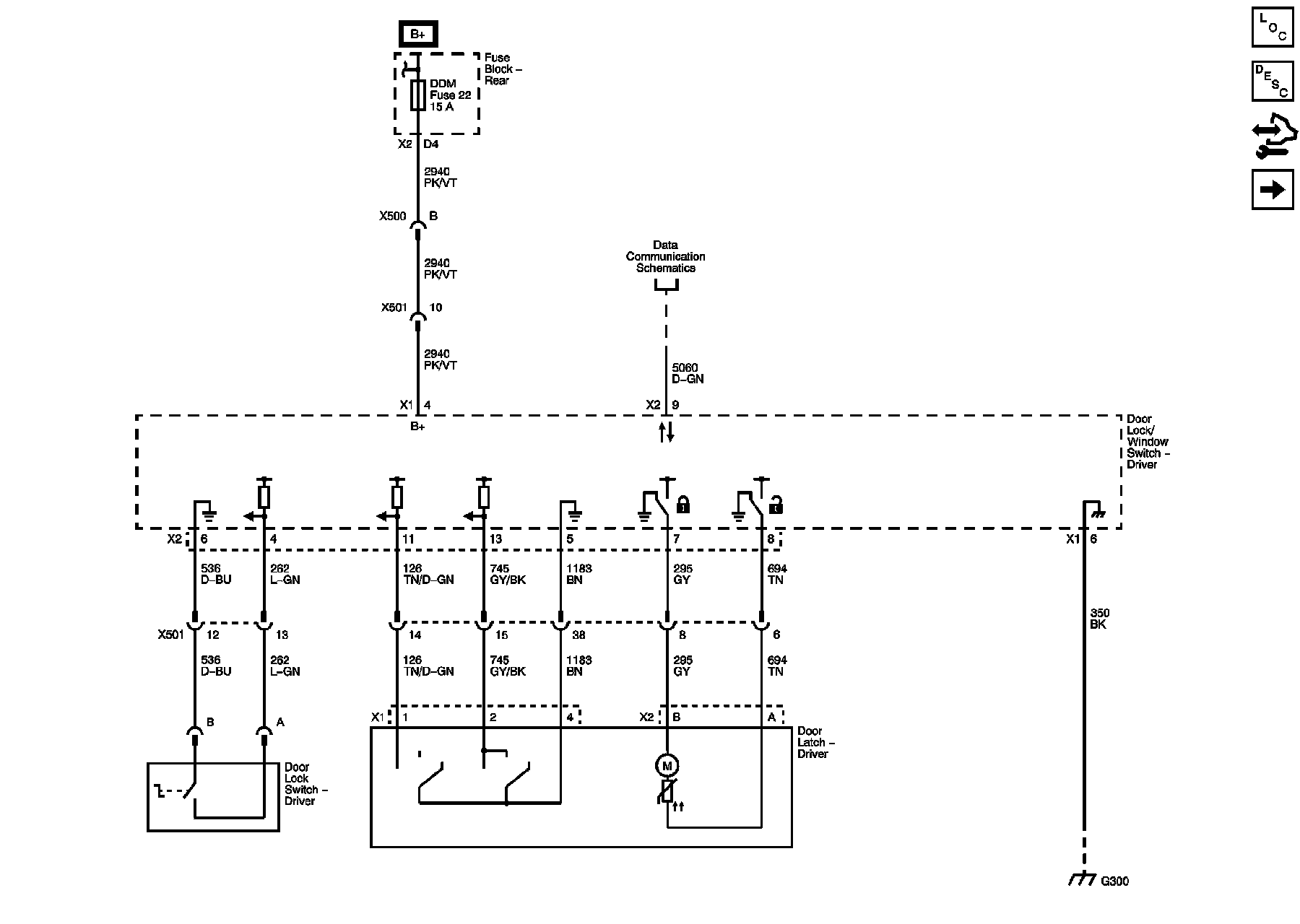

Driver Door Module, Power and Ground

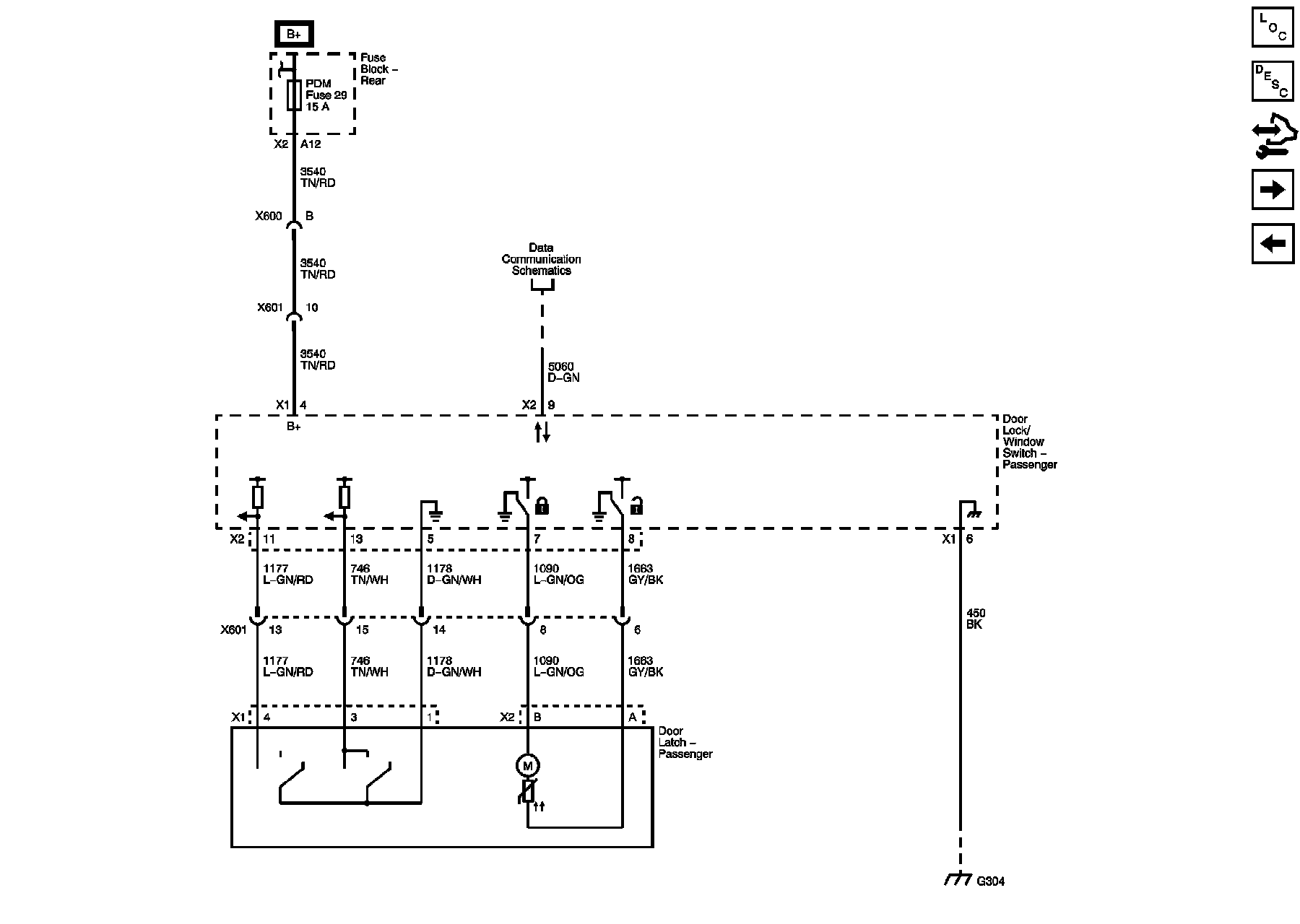

Front Passenger Door Module, Power and Ground

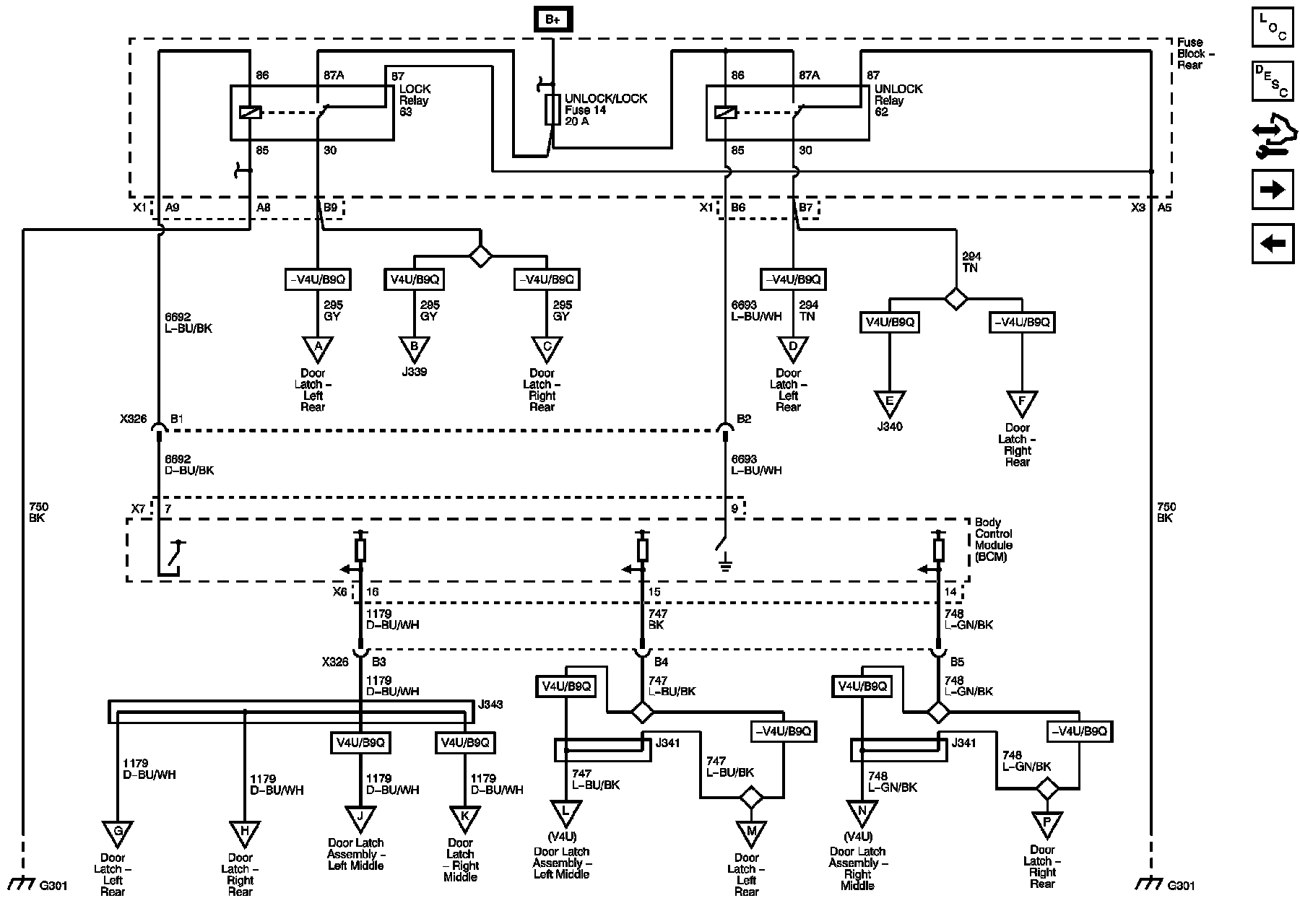

Door Lock, Unlock Relays

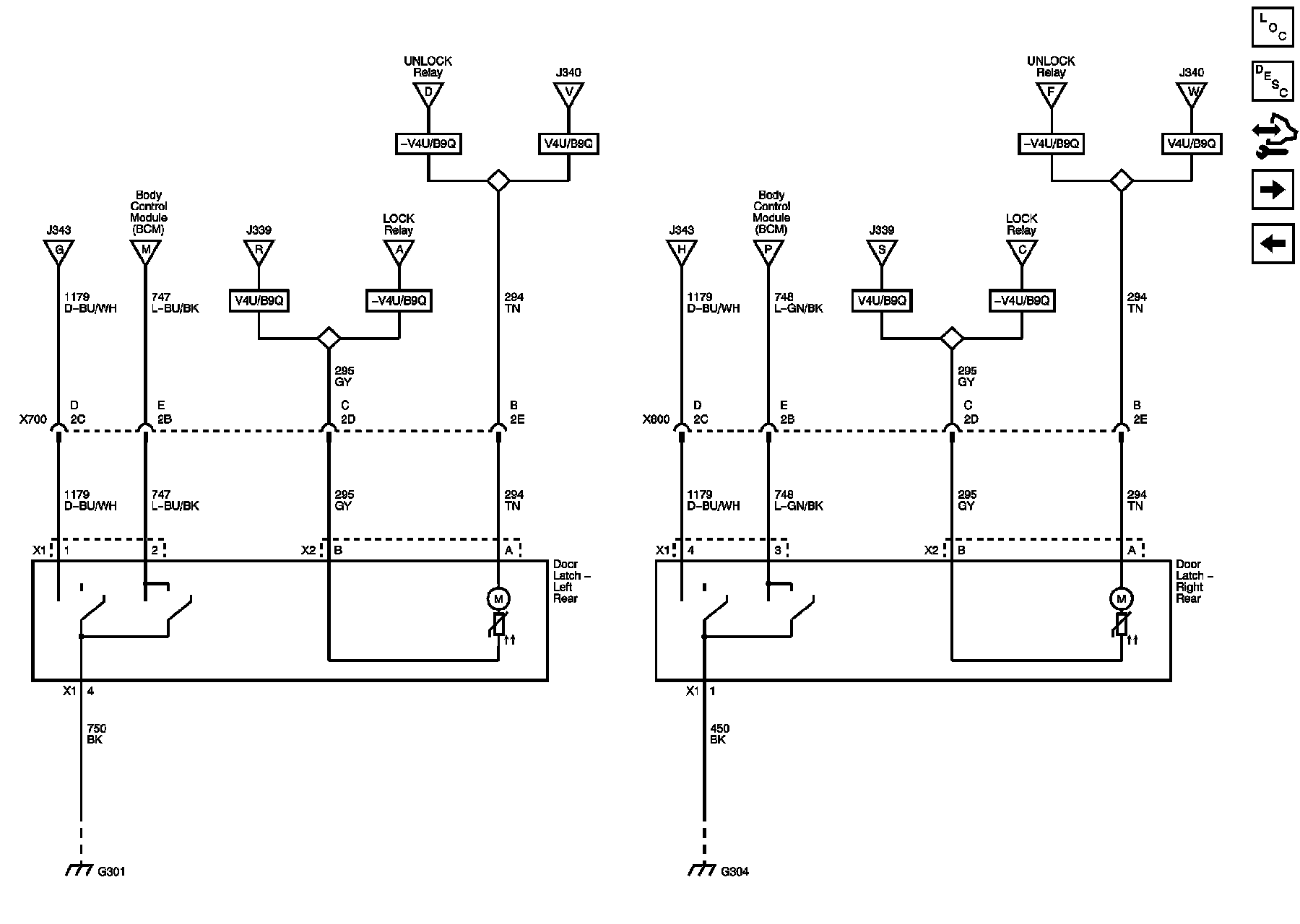

Rear Door Latch Assemblies

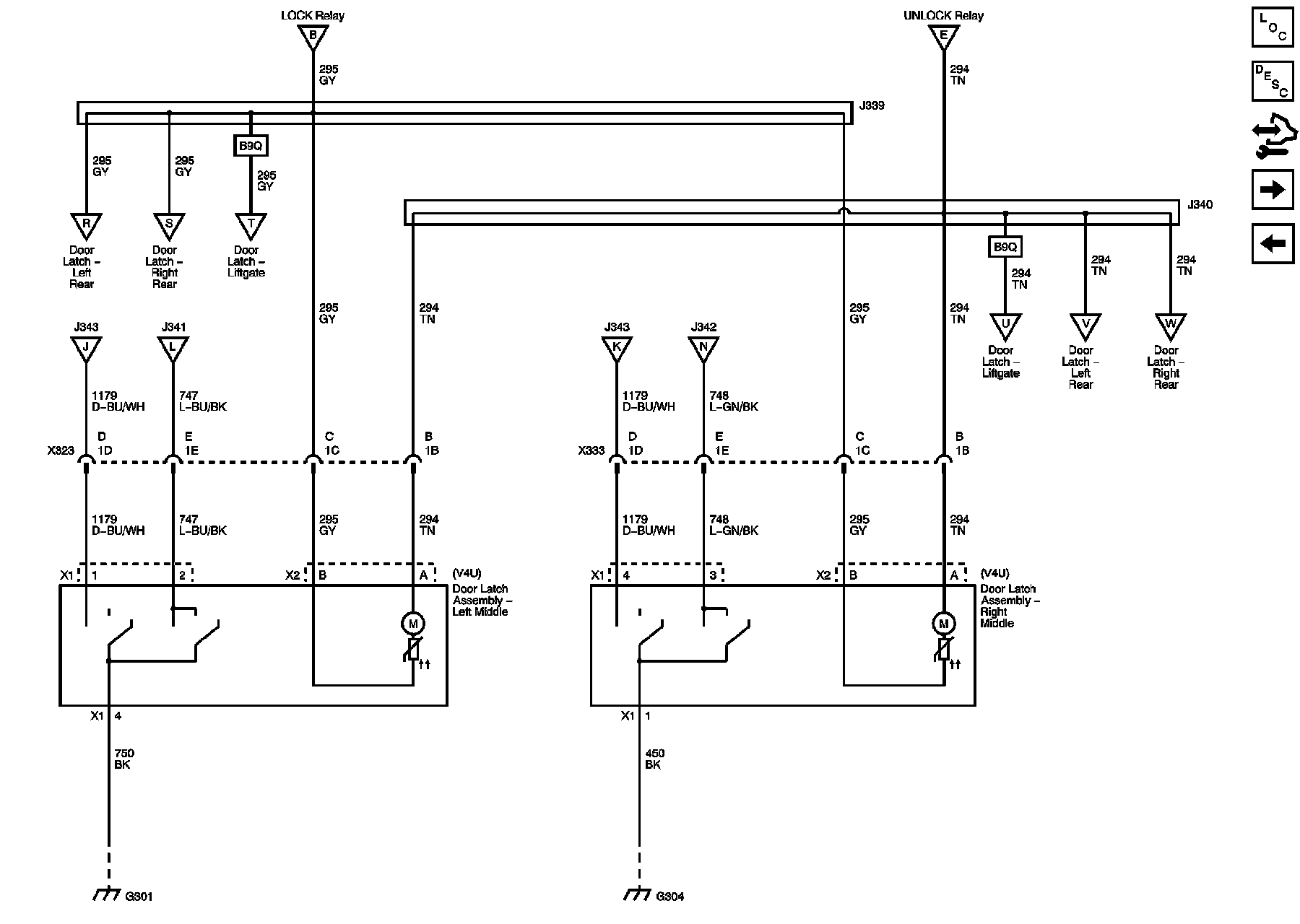

Middle Door Latch Assemblies (V4U)

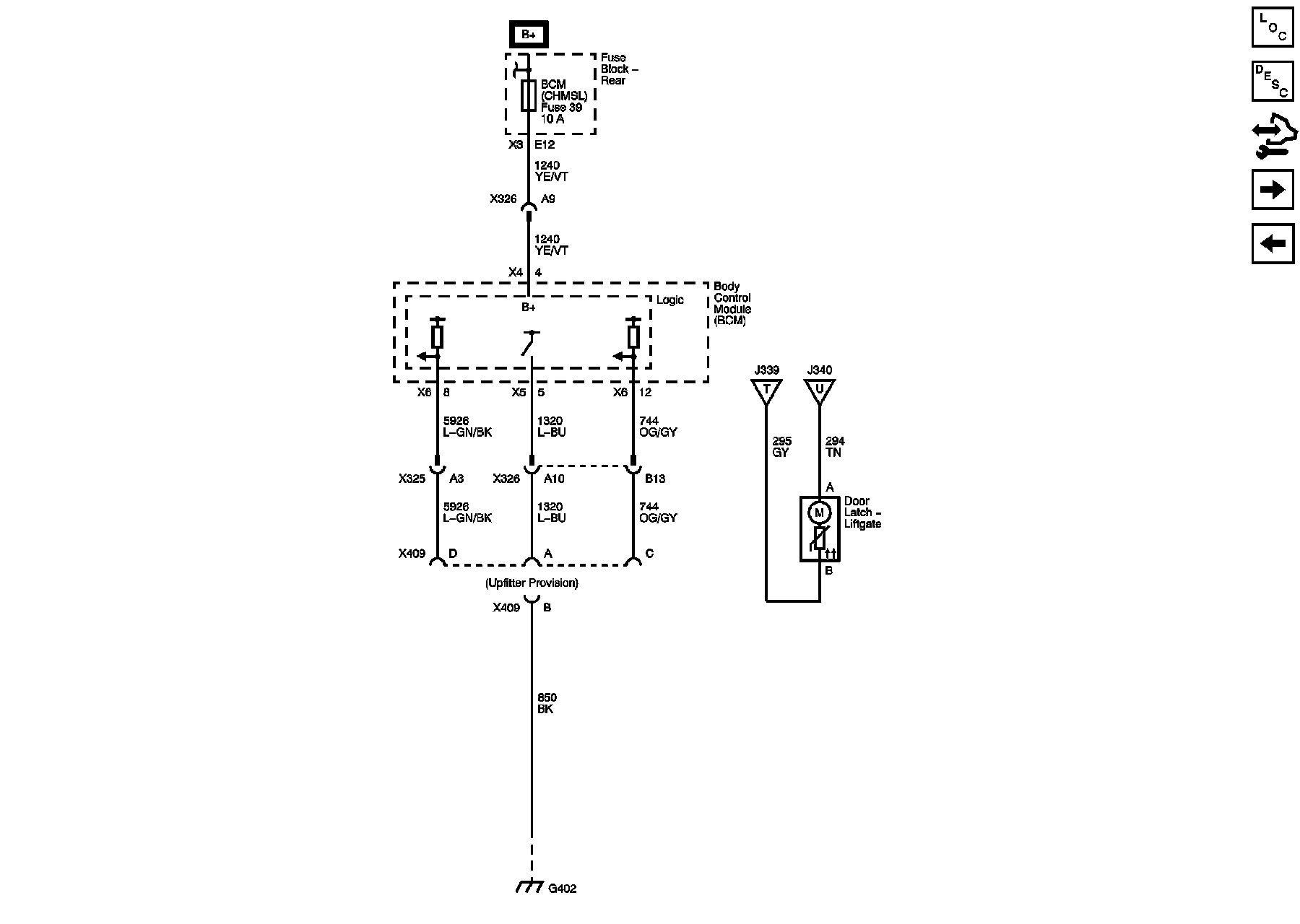

Rear Door Latch Assemblies (B9Q)

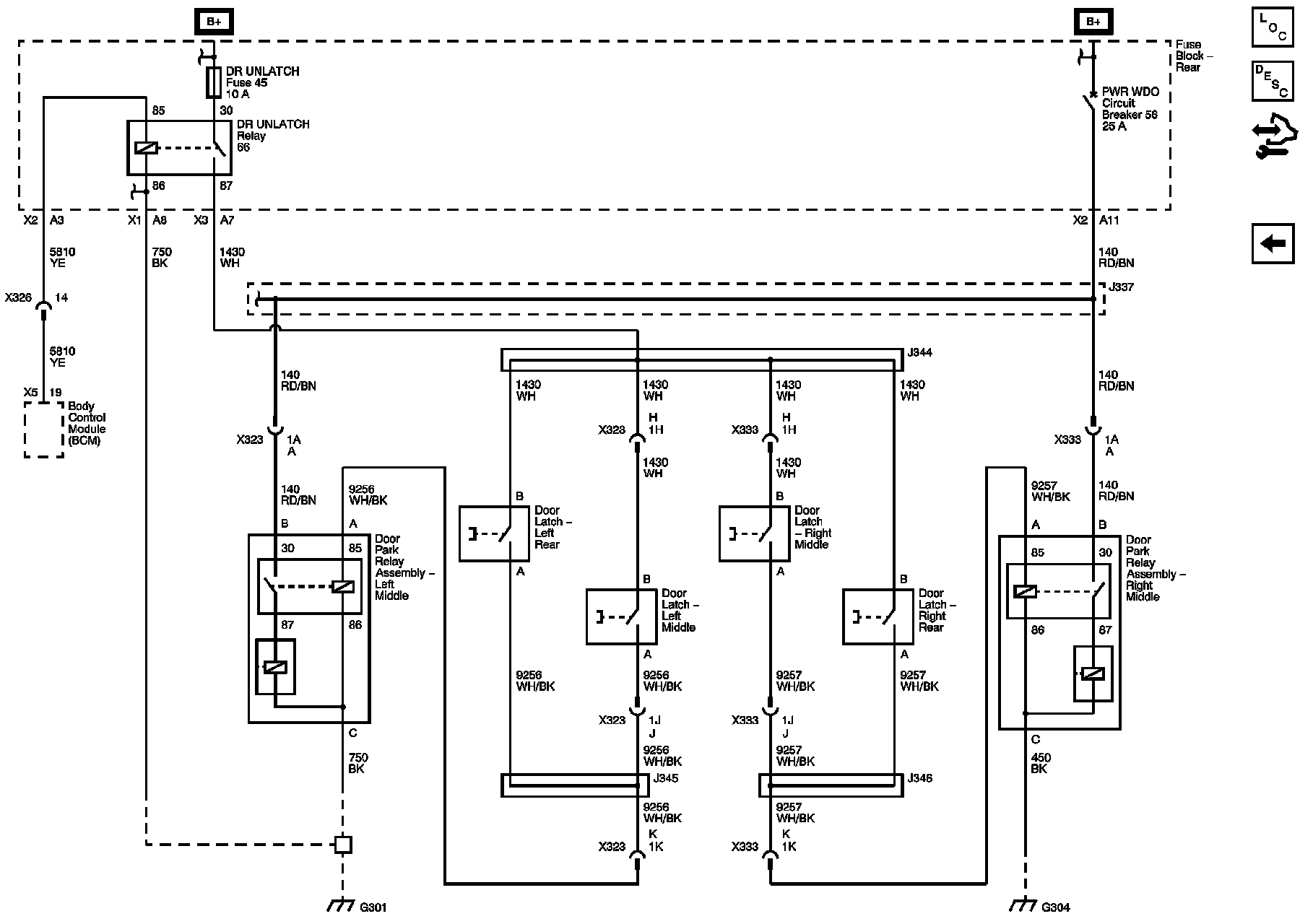

Door Release Switch (V4U)
