Seal Replacement - Fender to Hood

Seal Replacement - Fender to Hood

Removal Procedure

1. Open the hood.

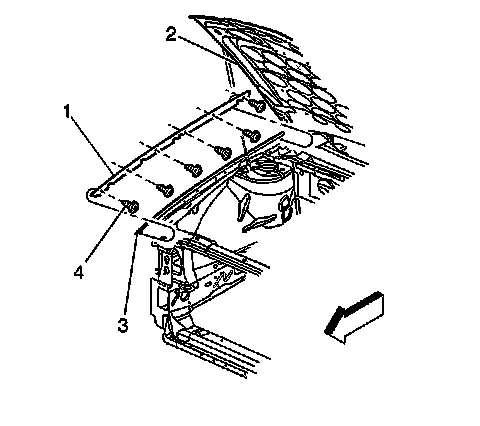

2. Remove the push in retainers (4) securing the front fender to hood seal (1) to the front fender (3).
3. Remove the front fender to hood seal (1) from the front fender (3).

Installation Procedure




1. Install the front fender to hood seal (1) to the front fender (3).
2. Install the push in retainers (4) in order to secure the front fender to hood seal (1) to the front fender (3).
3. Close the hood.
