Hood Rear Seal Replacement

Hood Rear Seal Replacement

Removal Procedure

1. Open the hood.

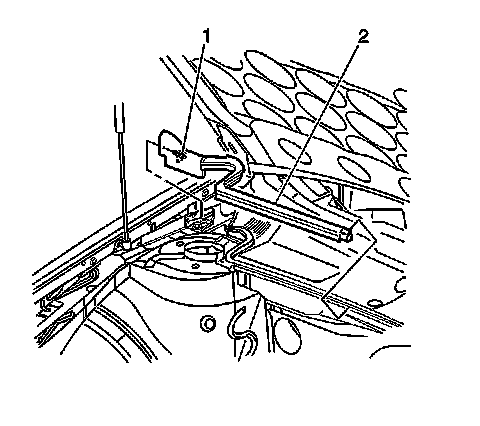

2. Remove the push in retainers (1) securing the outer end of each rear hood seal (2) to the vehicle.

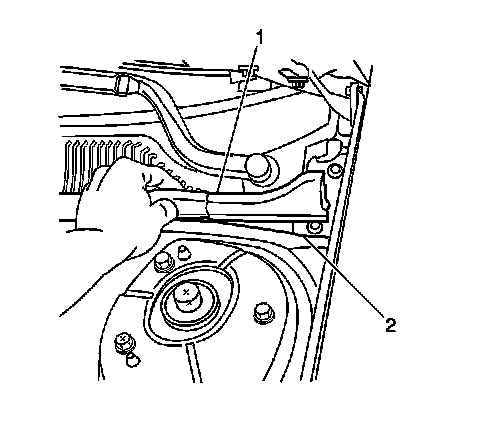

3. Remove the rear hood seal (1) by peeling it from the flange (2).

Installation Procedure




1. Install the rear hood sea (1) to the flange (2).




2. Install the push in retainers (1) in order to secure the rear hood seal (2) to the vehicle.
3. Close the hood.
