Front Door Striker: Adjustments

Door Lock Striker Adjustment

Special Tools

J 39346-A Mini-Wedge Alignment Tool

Warning

Striker alignment is crucial for proper operation of the door systems. Do not hit the striker with a hammer or force alignment in any other way. Failure to properly adjust striker will result in excessive door efforts or extensive damage to door system operation which could result in personal injury.




1. Loosen the 2 mini wedge striker fasteners (1).
2. Tighten the 2 striker fasteners so that the striker can still be moved.

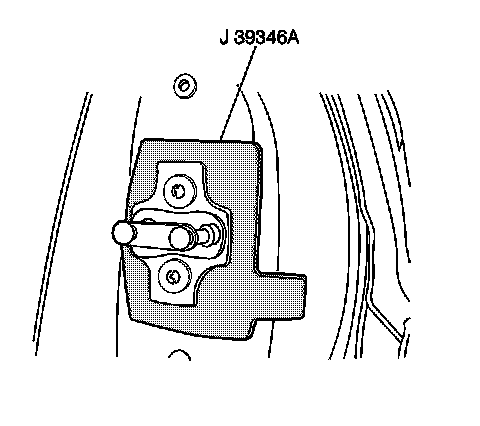

3. Place the J 39346-A over the striker.
4. Hold the outside door handle out and gently push the door flush against the body to locate the striker.

Caution: Refer to Fastener Caution (Fastener Caution).

5. Slowly open the door.

Tighten the striker fasteners to 27 Nm (20 lb ft).

6. Remove the J 39346-A.
7. After the striker adjustment touch up any exposed or unpainted surface with body color paint.
