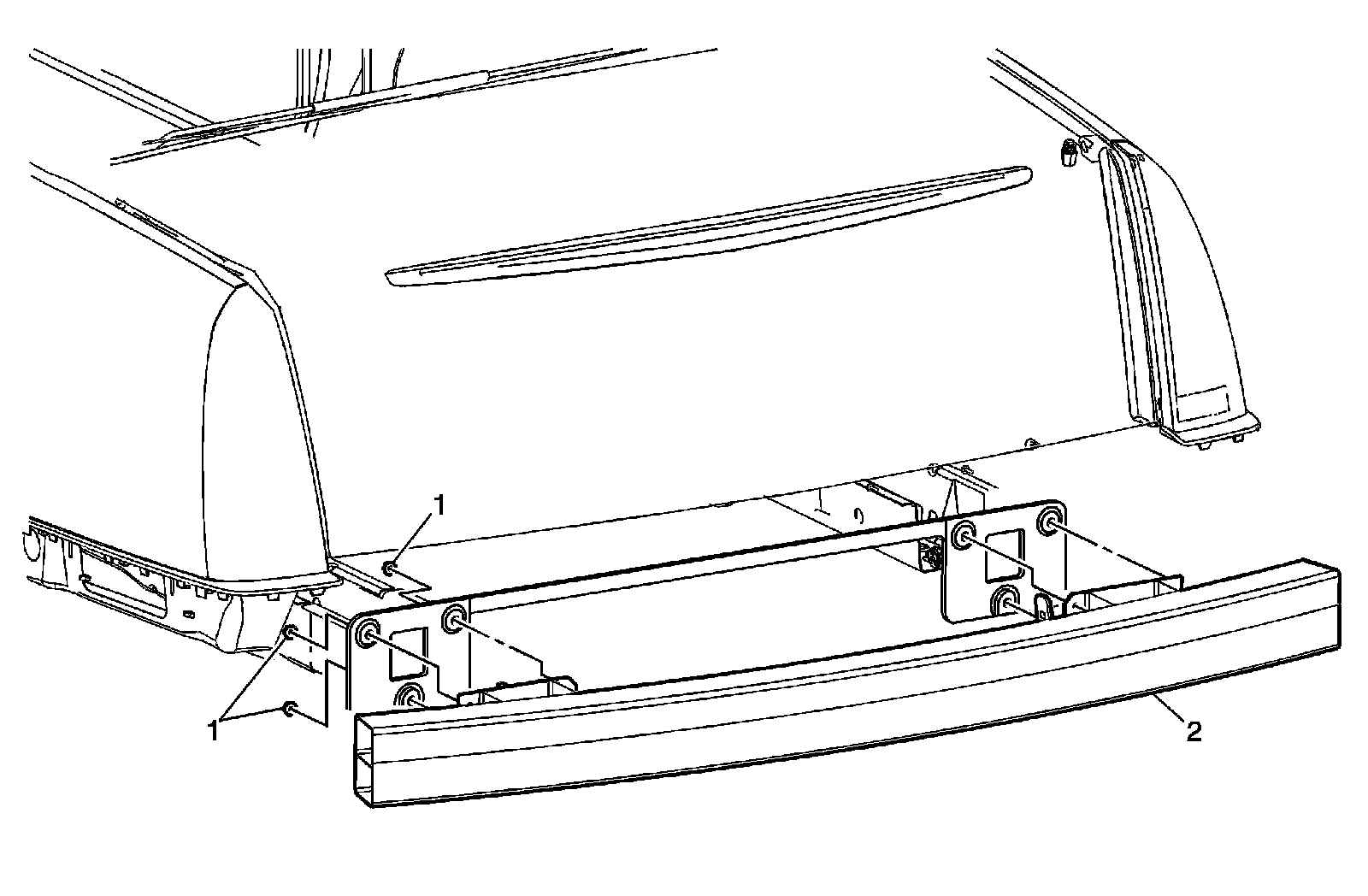

Rear Bumper Impact Bar Replacement

Rear Bumper Impact Bar Replacement

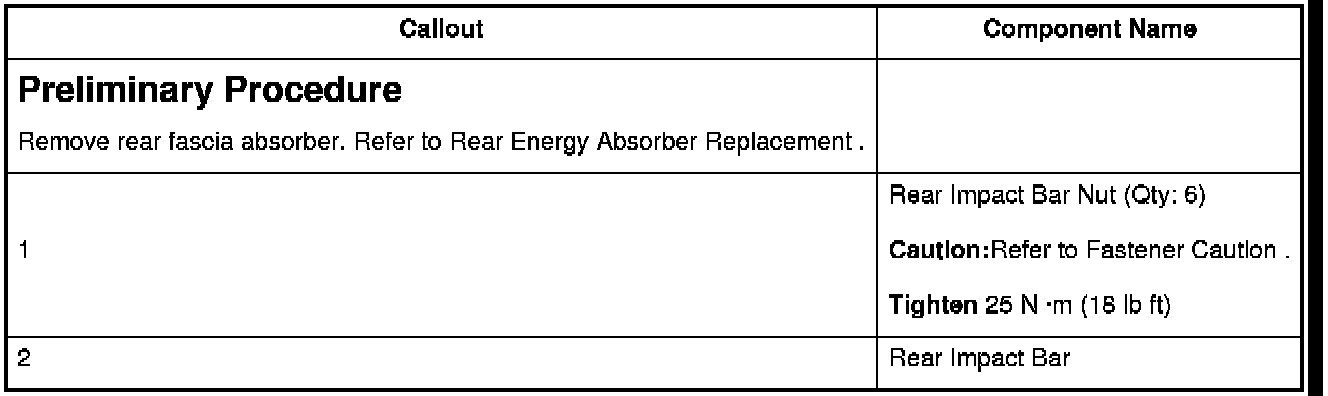

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
