Rear Bumper Fascia Replacement

Rear Bumper Fascia Replacement

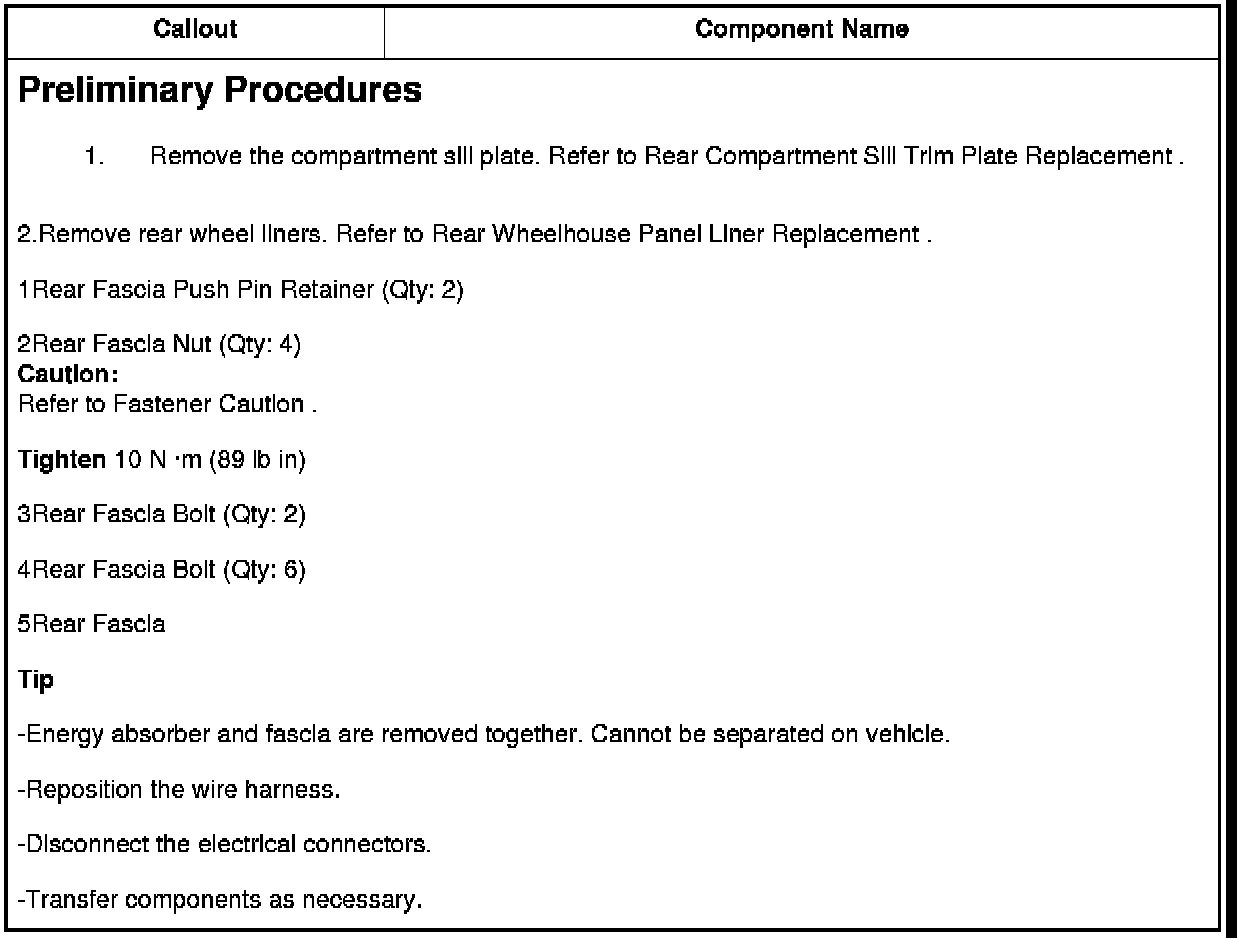

2.Remove rear wheel liners. Refer to Rear Wheelhouse Panel Liner Replacement .

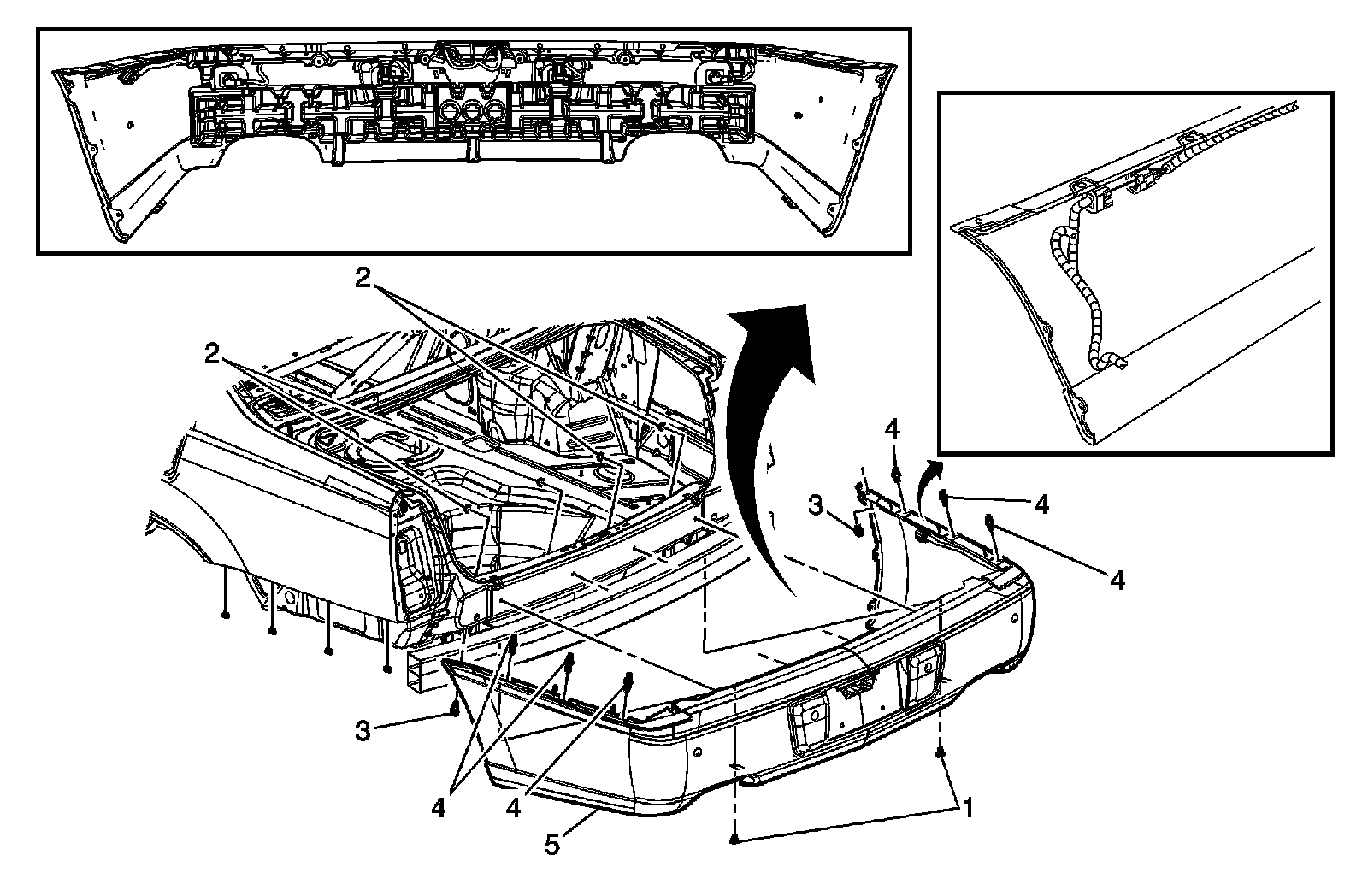

1Rear Fascia Push Pin Retainer (Qty: 2)

2Rear Fascia Nut (Qty: 4)
Caution:Refer to Fastener Caution .
Tighten 10 N �m (89 lb in)

3Rear Fascia Bolt (Qty: 2)

4Rear Fascia Bolt (Qty: 6)

5Rear Fascia
Tip
-Energy absorber and fascia are removed together. Cannot be separated on vehicle.

-Reposition the wire harness.

-Disconnect the electrical connectors.

-Transfer components as necessary.
