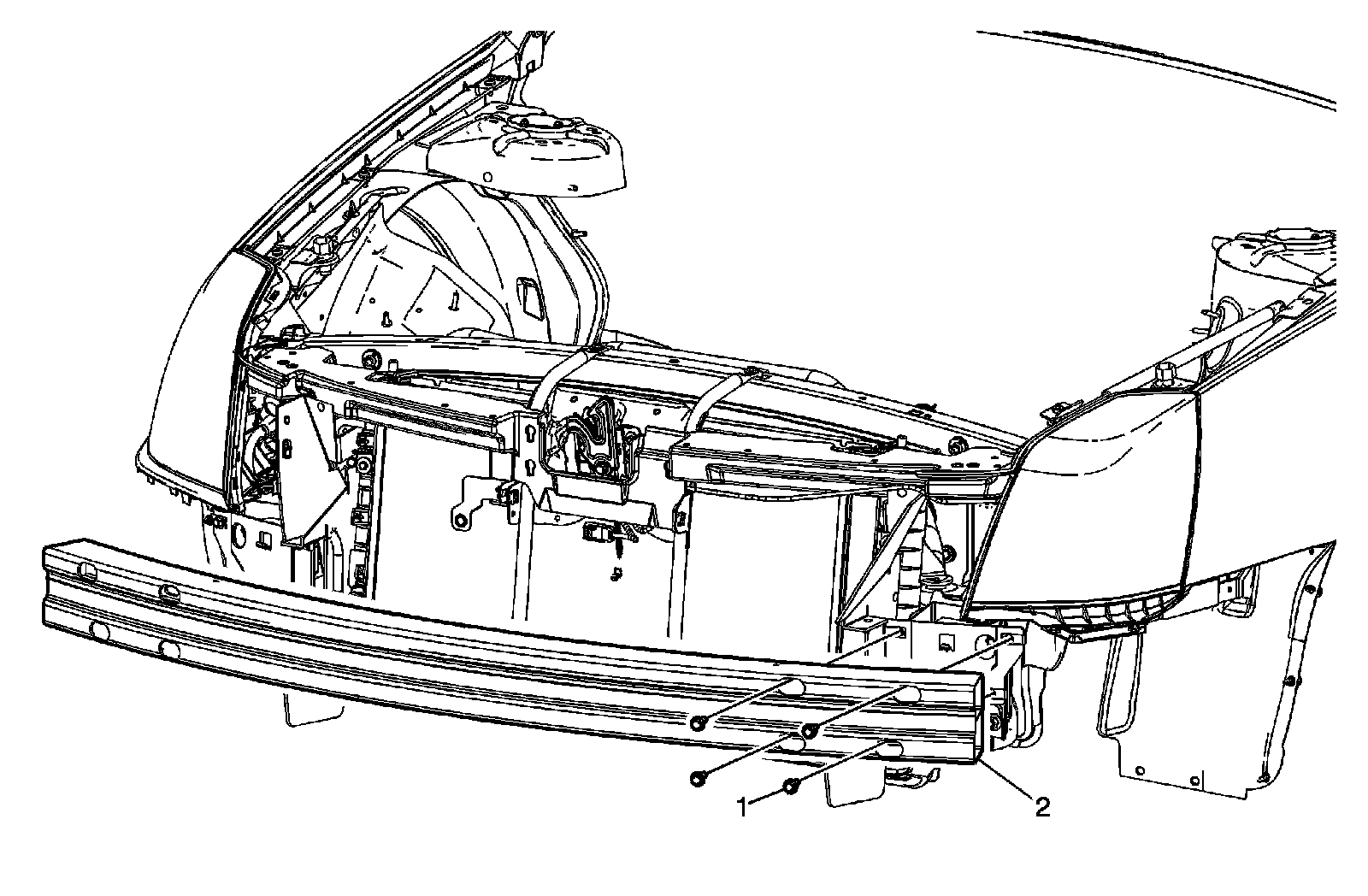

Front Bumper Impact Bar Replacement


Front Bumper Impact Bar Replacement

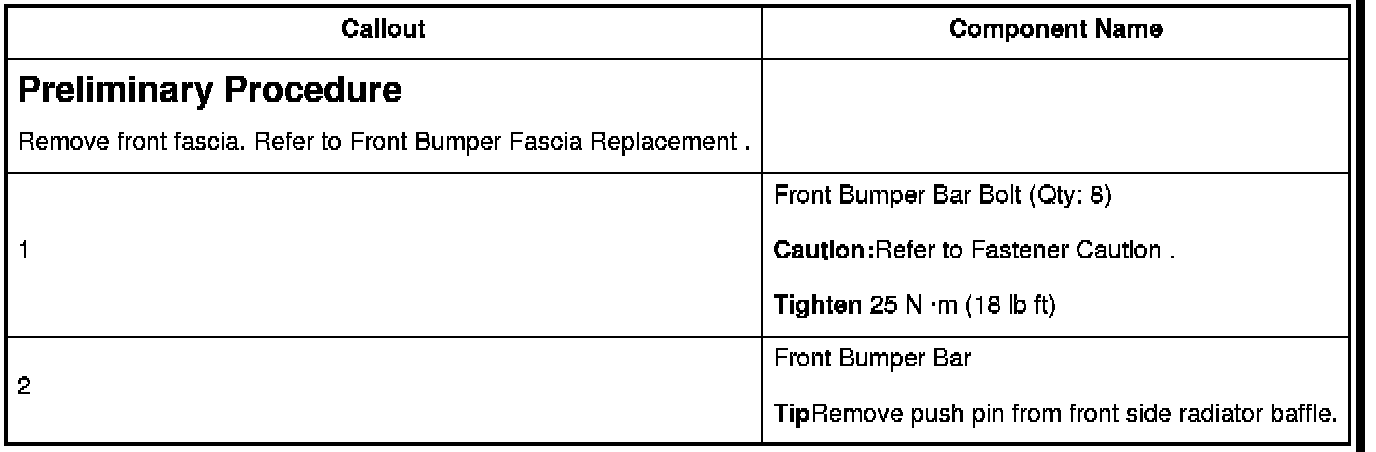

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
TipRemove push pin from front side radiator baffle.
