Front of Vehicle/Engine Compartment Component Views




Front of Vehicle/Engine Compartment Component Views

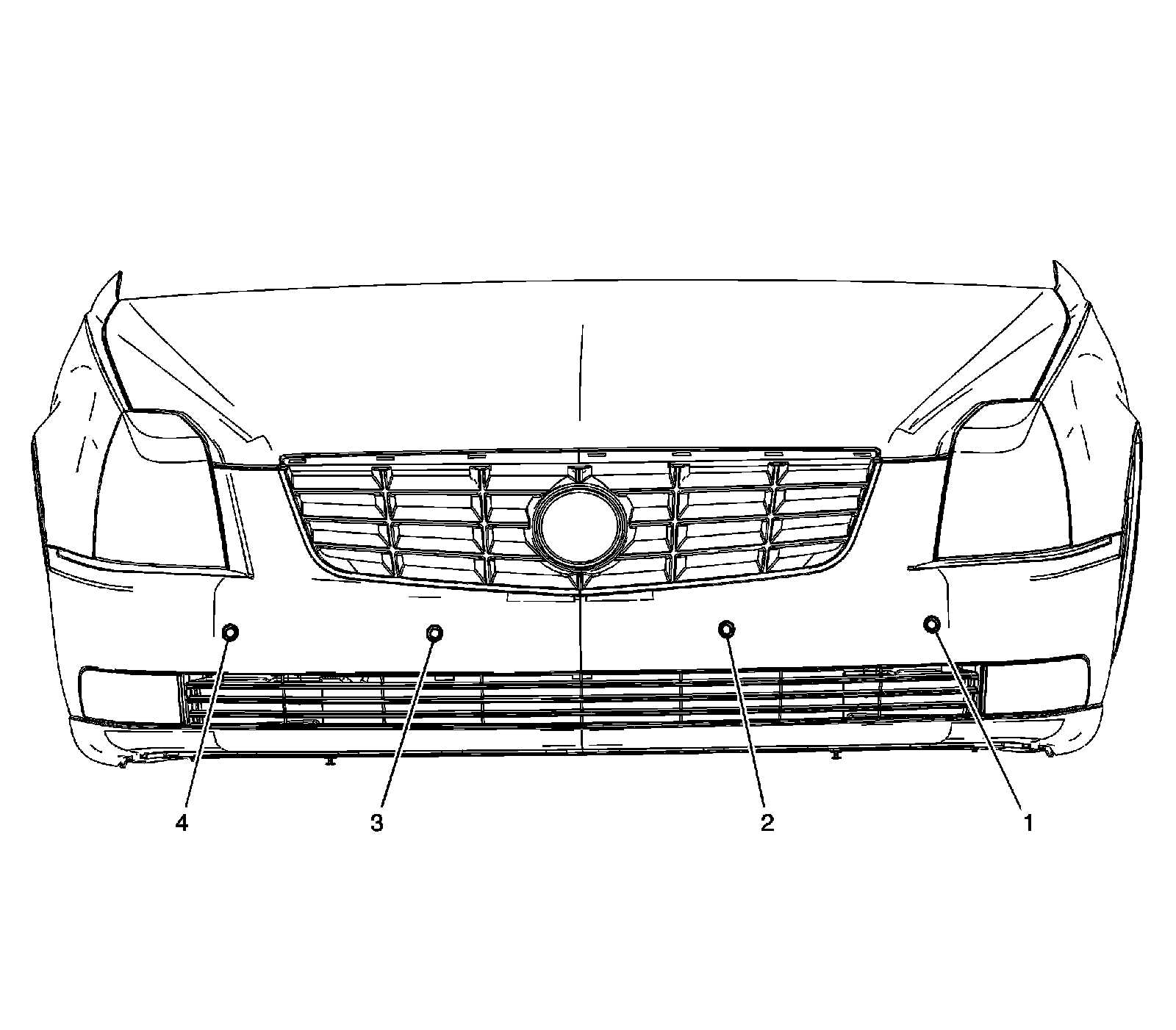

Front Fascia




1 - Object Alarm Sensor - Left Front Corner (UFR)
2 - Object Alarm Sensor - Left Front Middle (UFR)
3 - Object Alarm Sensor - Right Front Middle (UFR)
4 - Object Alarm Sensor - Right Front Corner (UFR)
