Electrical Diagrams




Object Detection Schematics

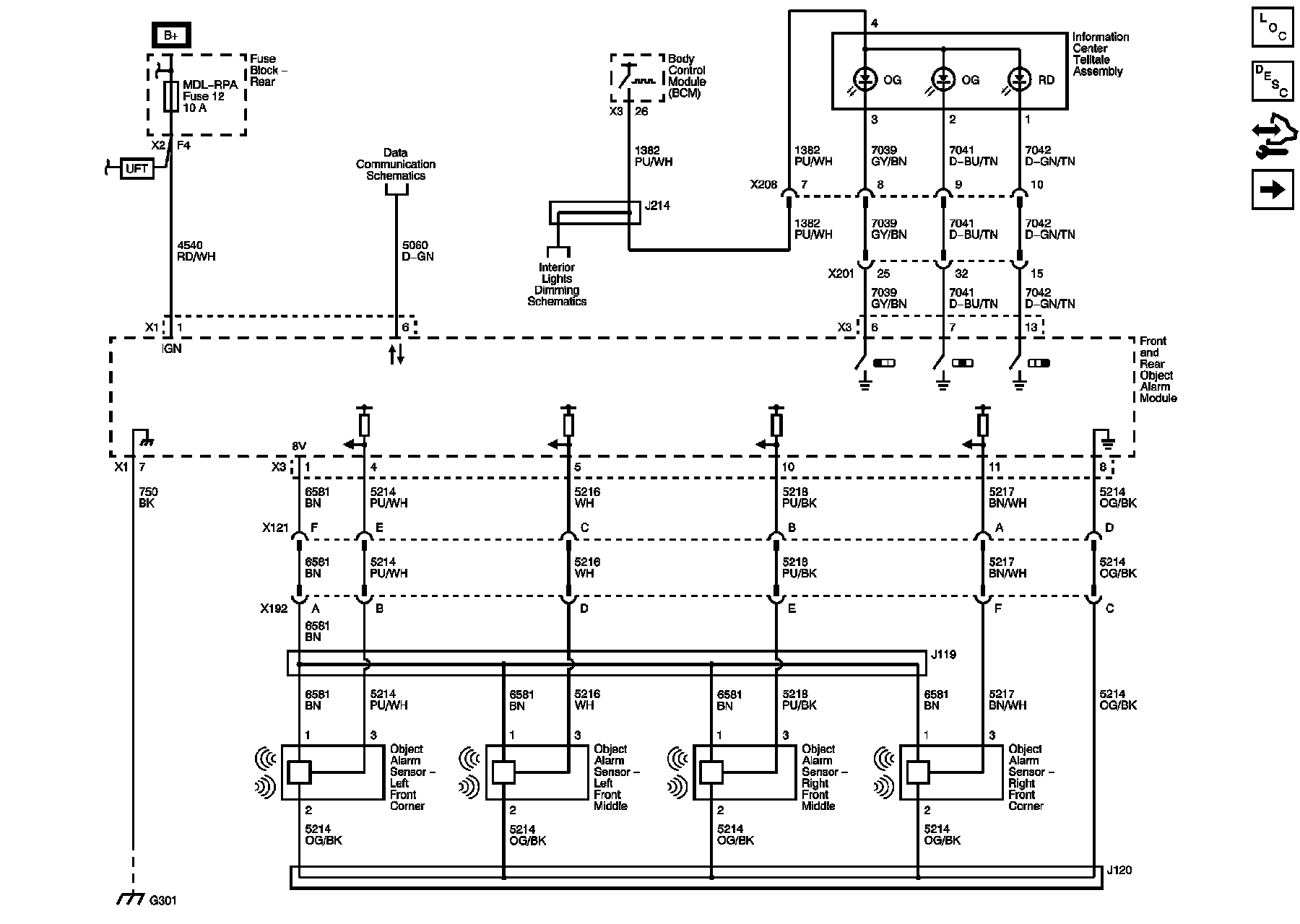

Front Park Assist (UFR)

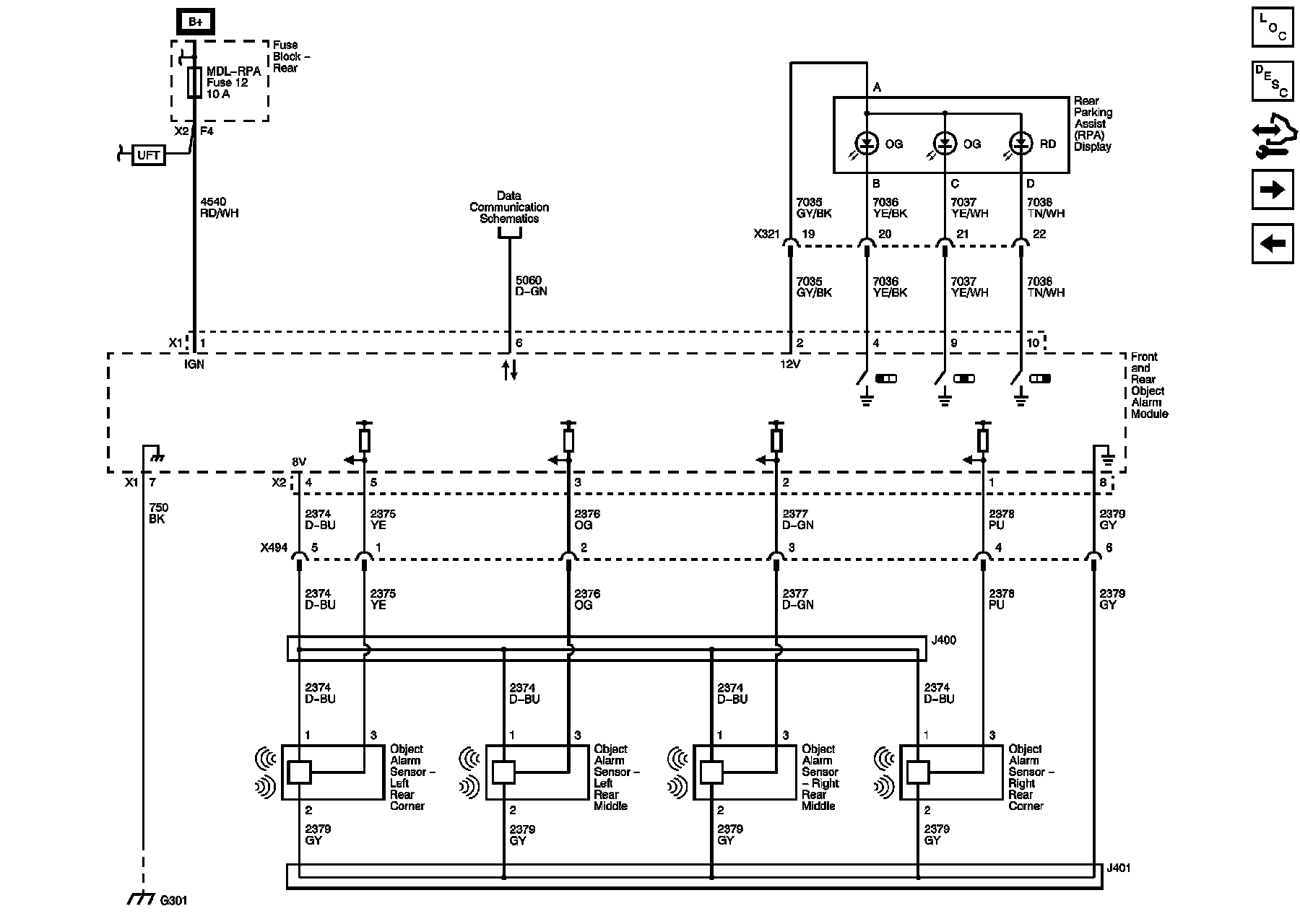

Rear Park Assist (UFR)





Lane Departure Warning System (UFL)

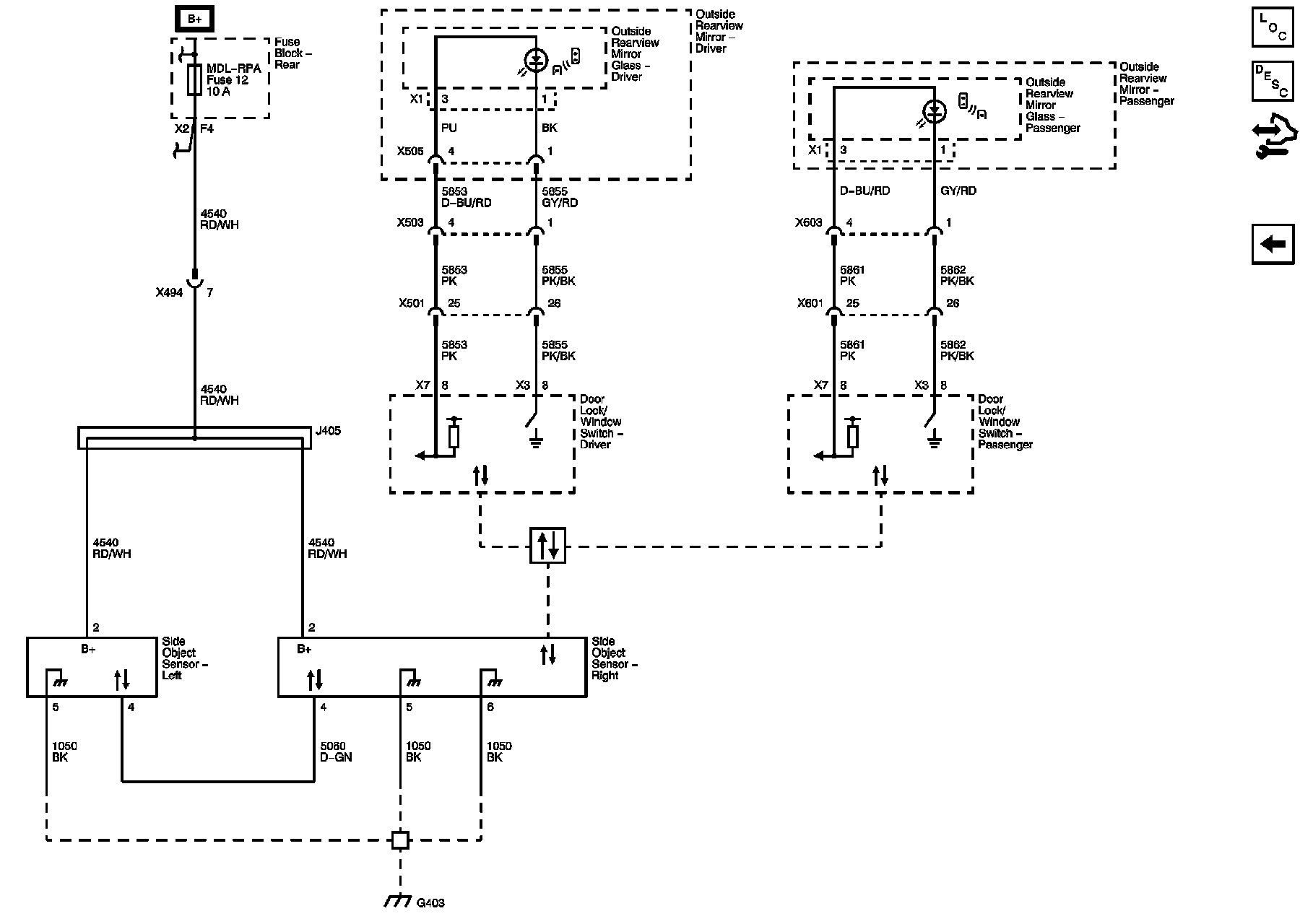

Side Object Detection (UFT)
