Collision Avoidance Module: Locations

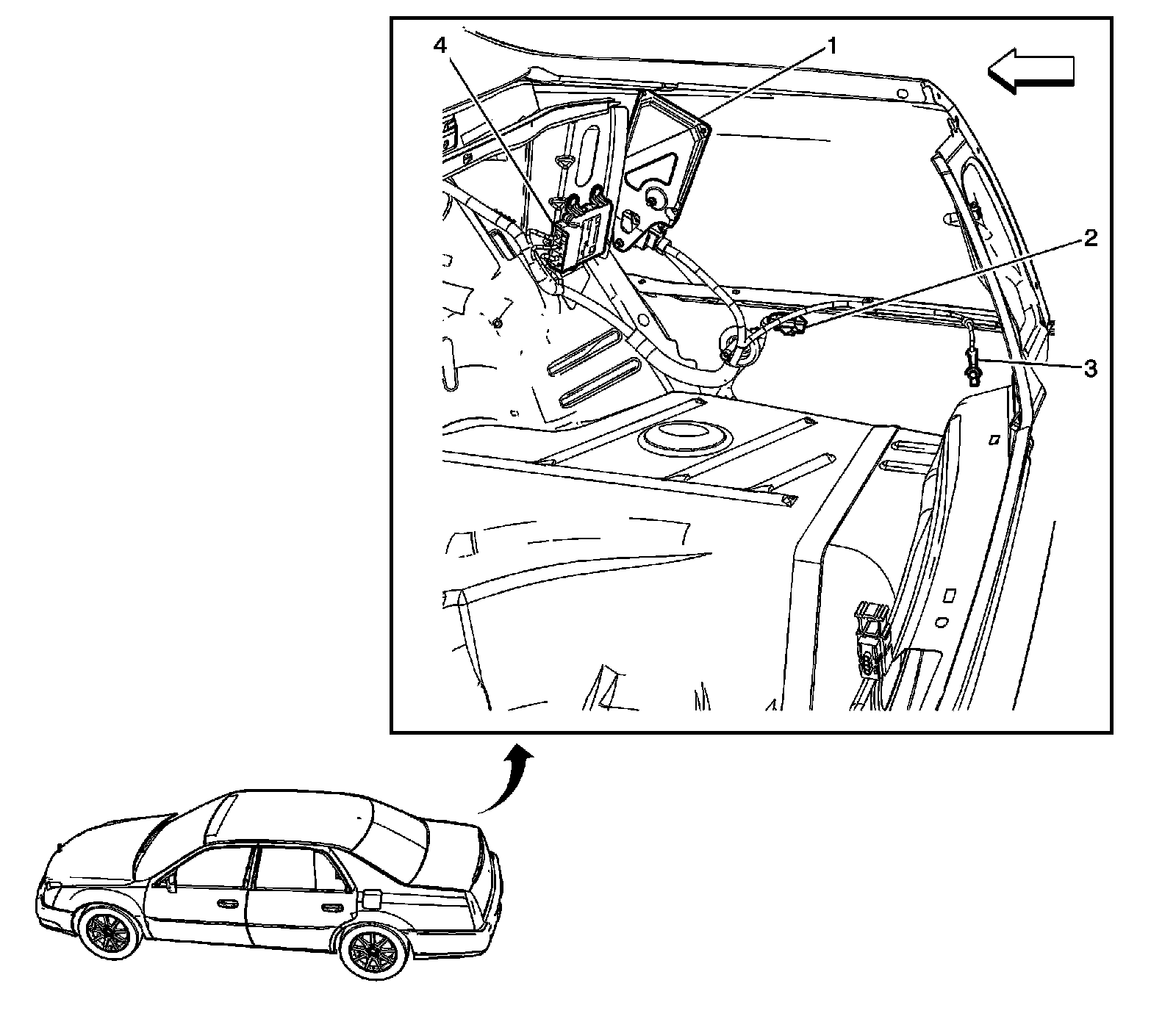

Luggage Compartment/Rear of Vehicle Component Views

Quarter Panel - Right Rear




1 - Electronic Suspension Control (ESC) Module (F55)
2 - X494 Body Harness to Rear Fascia Harness (UFR)
3 - G403
4 - Front and Rear Object Alarm Module (UFR)
