Home >> Cadillac >> 2009 >> XLR V8-4.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Assemble, Disassemble, and Installation >> 3-5 Reverse Clutch Backing Plate Retaining Ring Measurement

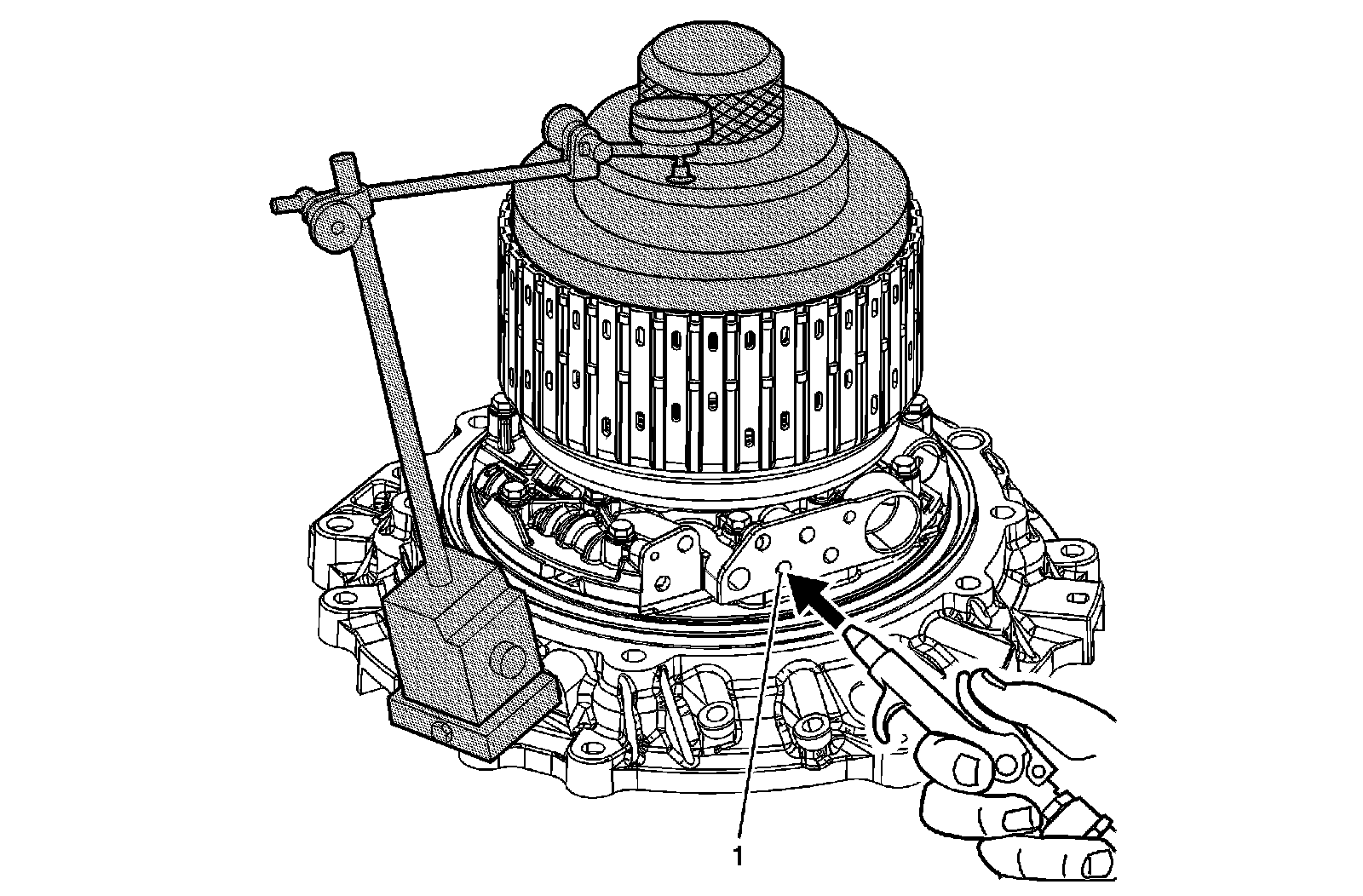

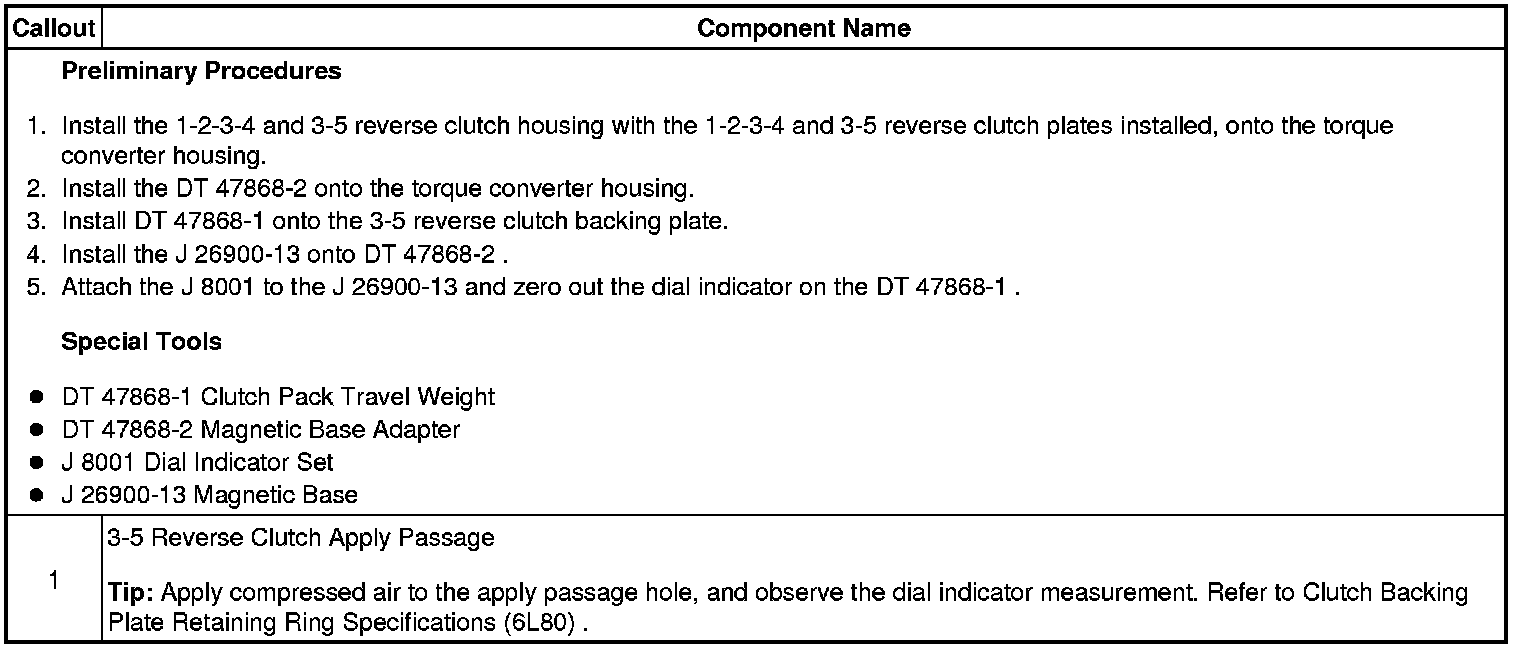

3-5 Reverse Clutch Backing Plate Retaining Ring Measurement




3-5 Reverse Clutch Backing Plate Retaining Ring Measurement
