Seat Belt Retractor Replacement - Left Front

Seat Belt Retractor Replacement - Left Front

Removal Procedure

1. Remove the passenger seat. Refer to Driver or Passenger Seat Replacement (Driver or Passenger Seat Replacement).
2. Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Service and Repair).

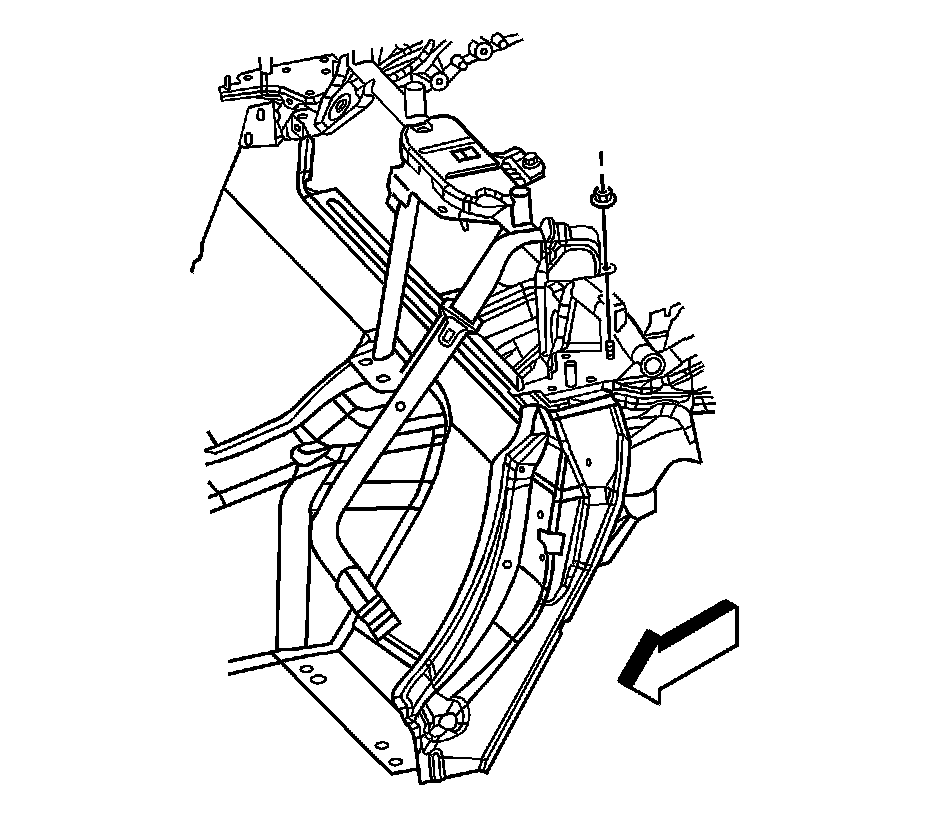

3. Remove the bolt attaching the retractor.
4. Remove the retractor assembly from the vehicle.

Installation Procedure

1. Install the retractor assembly to the vehicle.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the retractor and attaching bolt and tighten to 41 Nm (31 lb ft).
3. Install the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Service and Repair).
4. Install the passenger seat. Refer to Driver or Passenger Seat Replacement (Driver or Passenger Seat Replacement).
