Inflatable Restraint Steering Wheel Module Coil X4
Inflatable Restraint Steering Wheel Module Coil X4

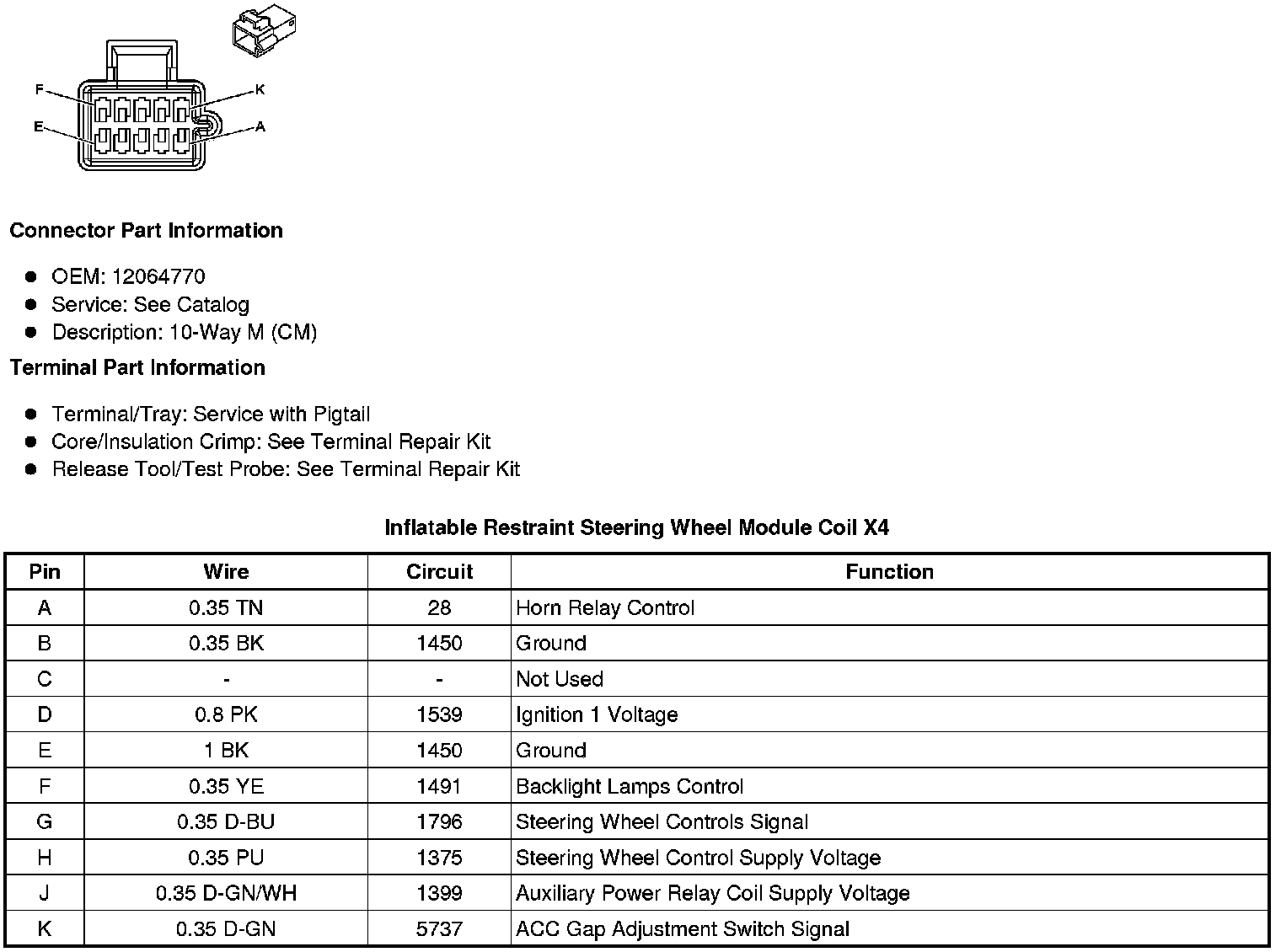

Component Connector End Views
Inflatable Restraint Steering Wheel Module Coil X4
