Electrical Diagrams




Automatic Transmission Controls Schematics

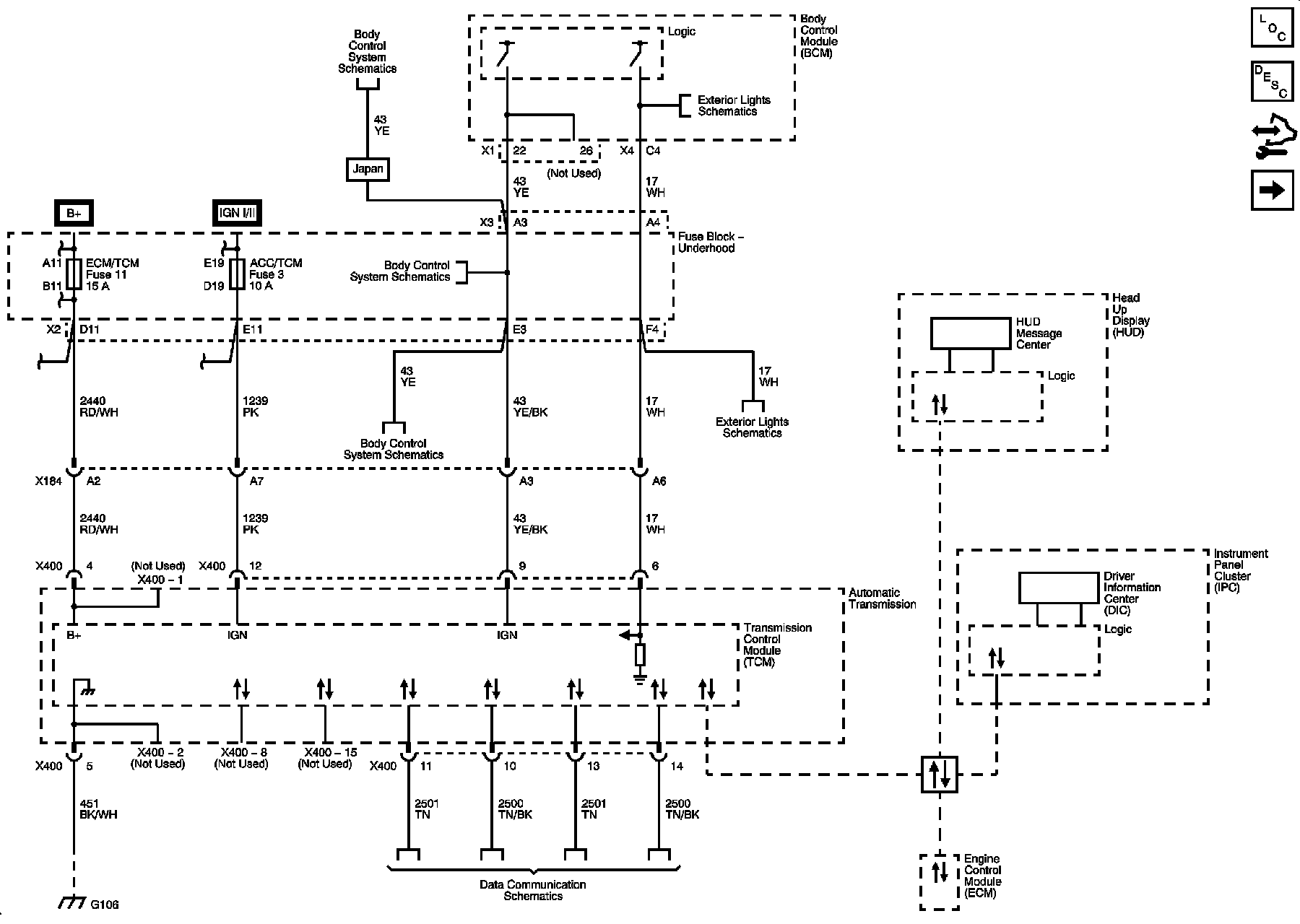

Power, Ground, and Serial Data

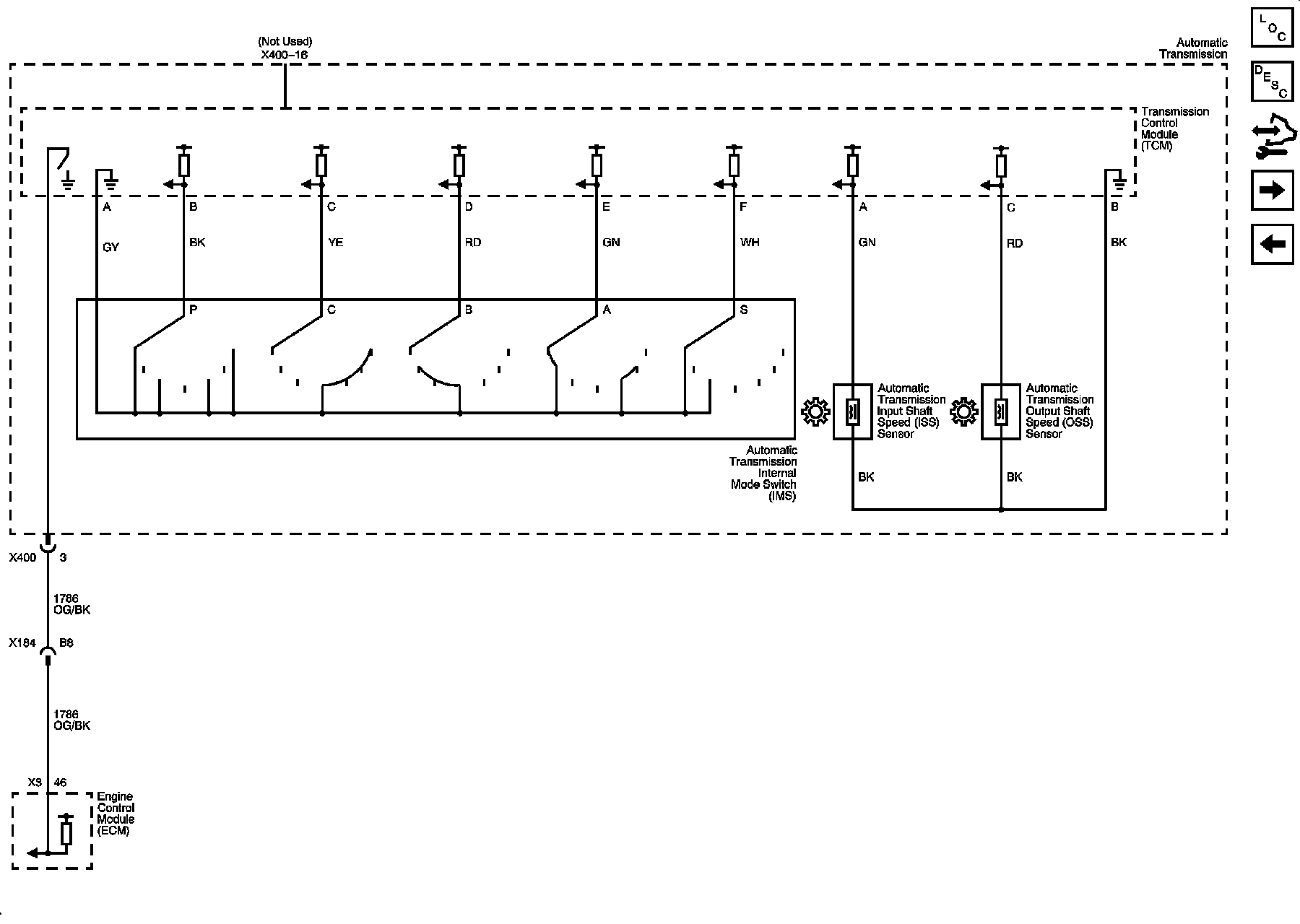

IMS Switch, and ISS, OSS Sensors

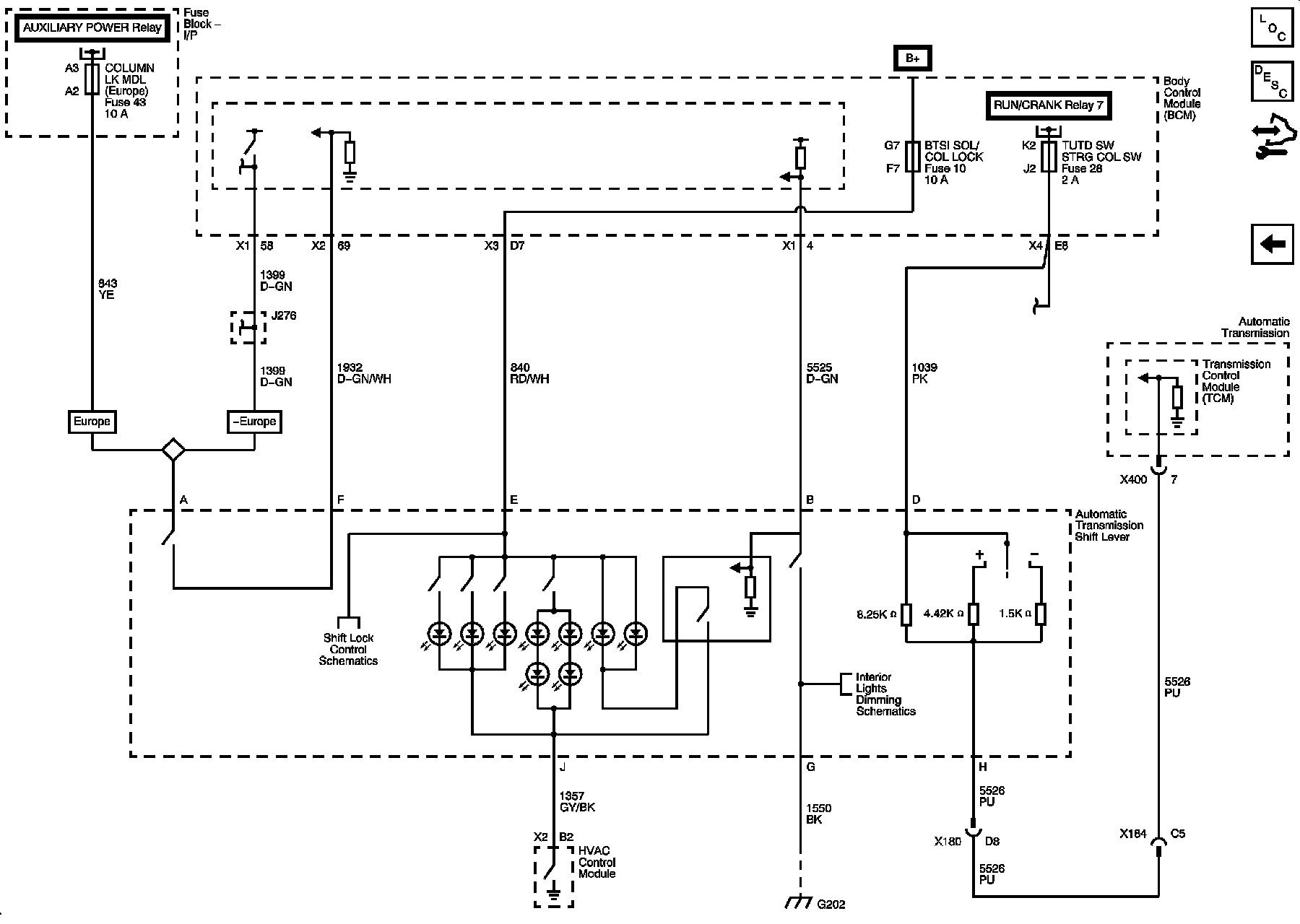

Shift Lever
