Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

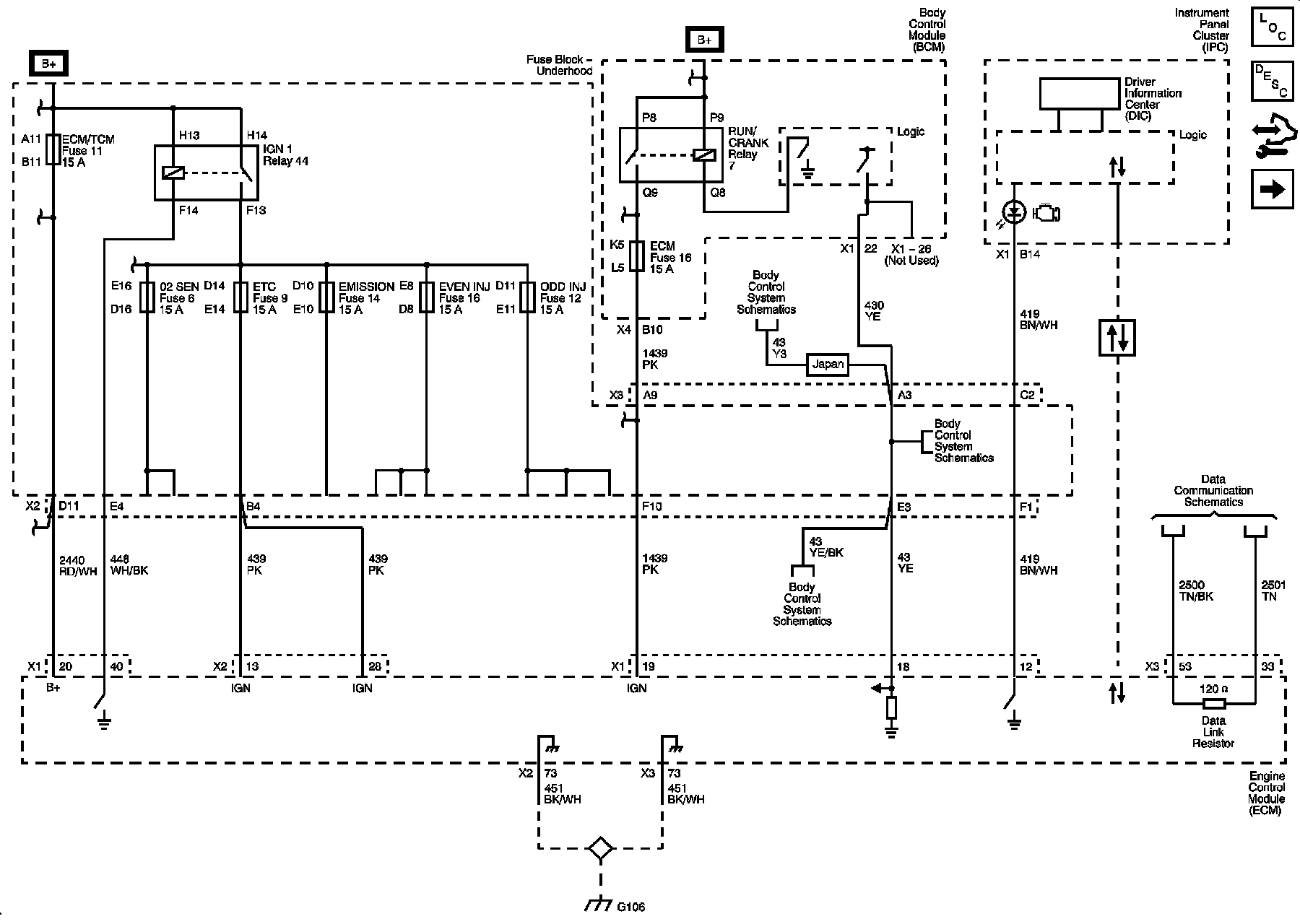

ECM Power, Ground, MIL, and Serial Data

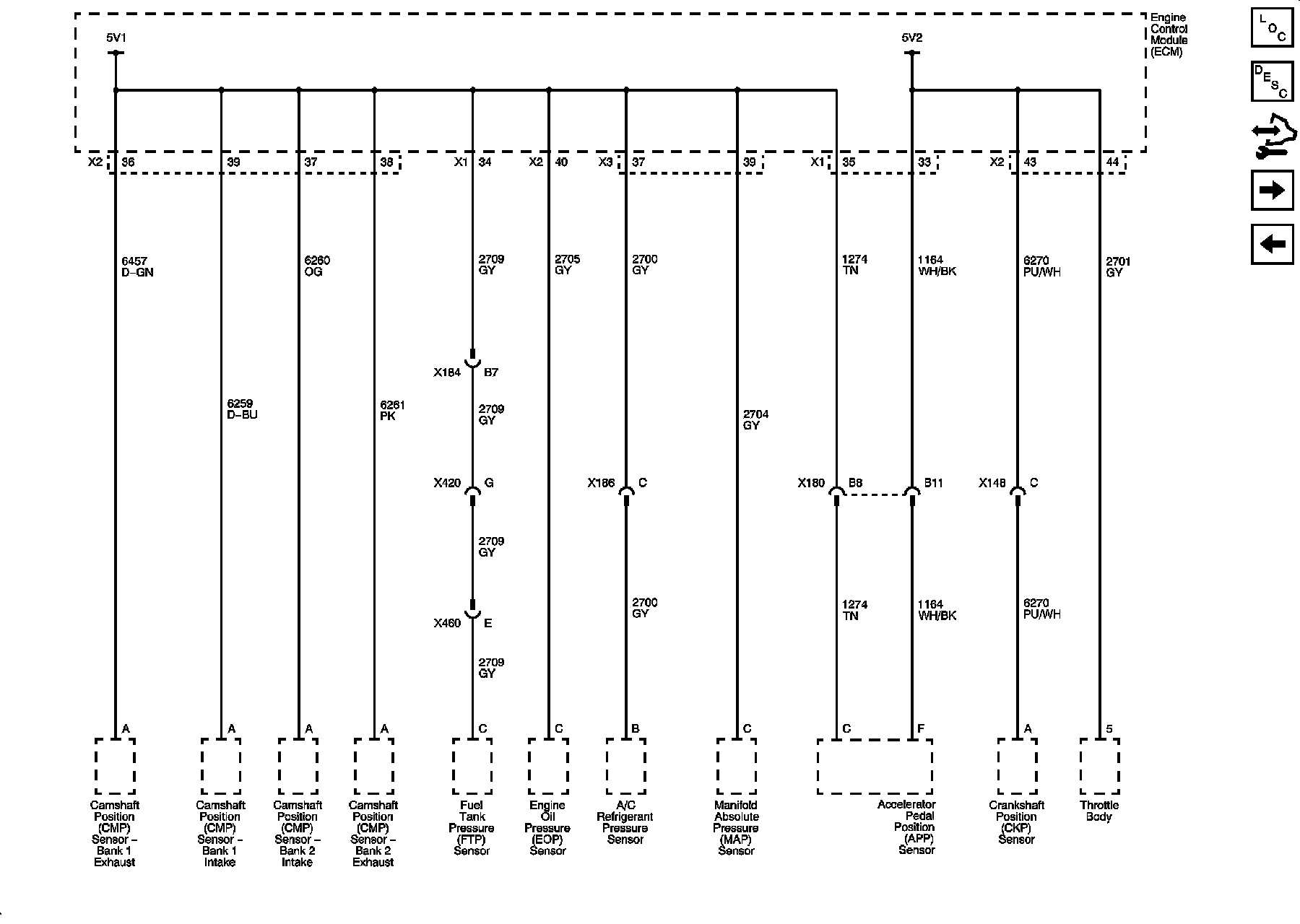

5-Volt Reference Bussing

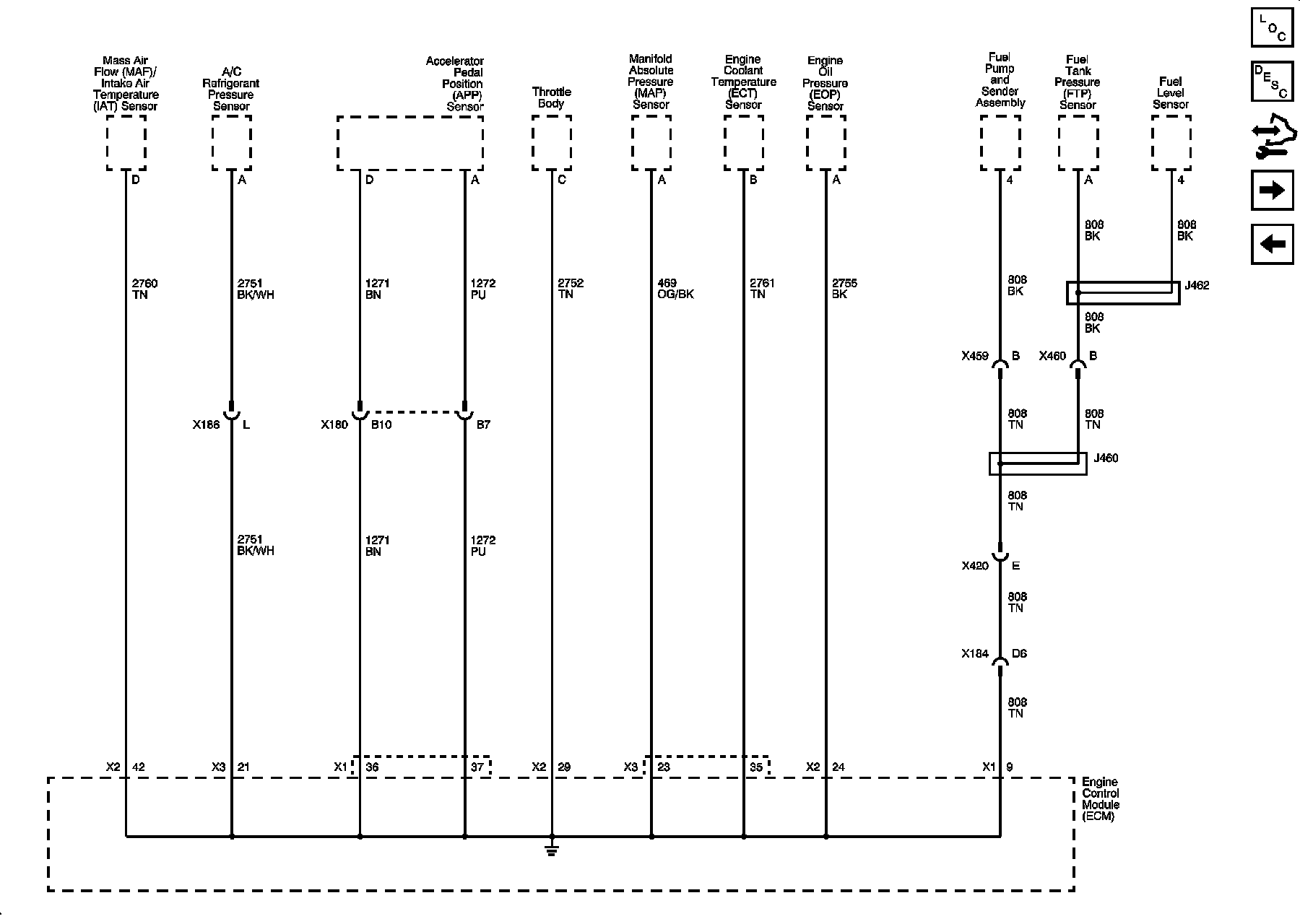

Low Reference Bussing

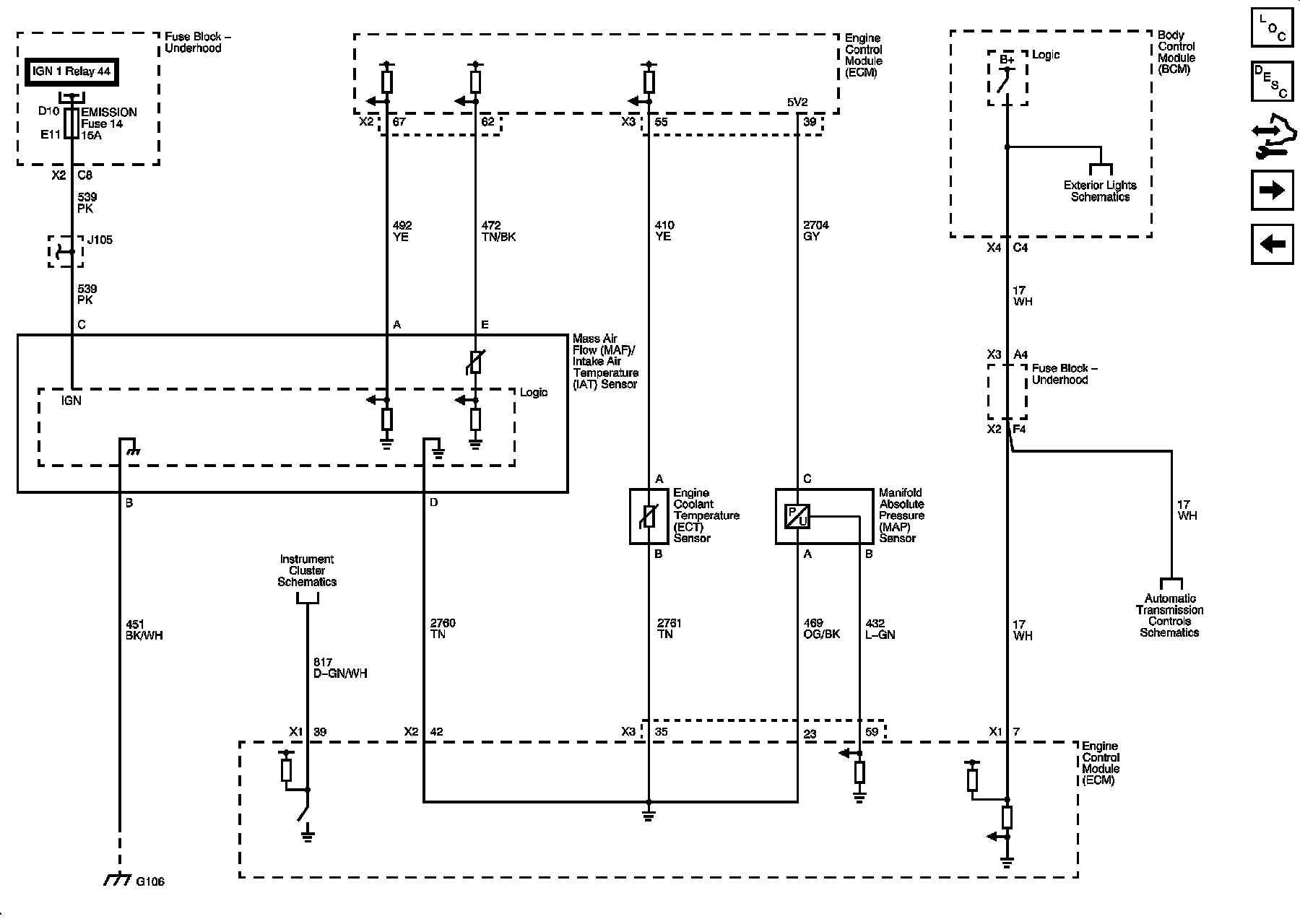

MAF/IAT, ECT, MAP Sensors, and Stop Lamp Switch Signal

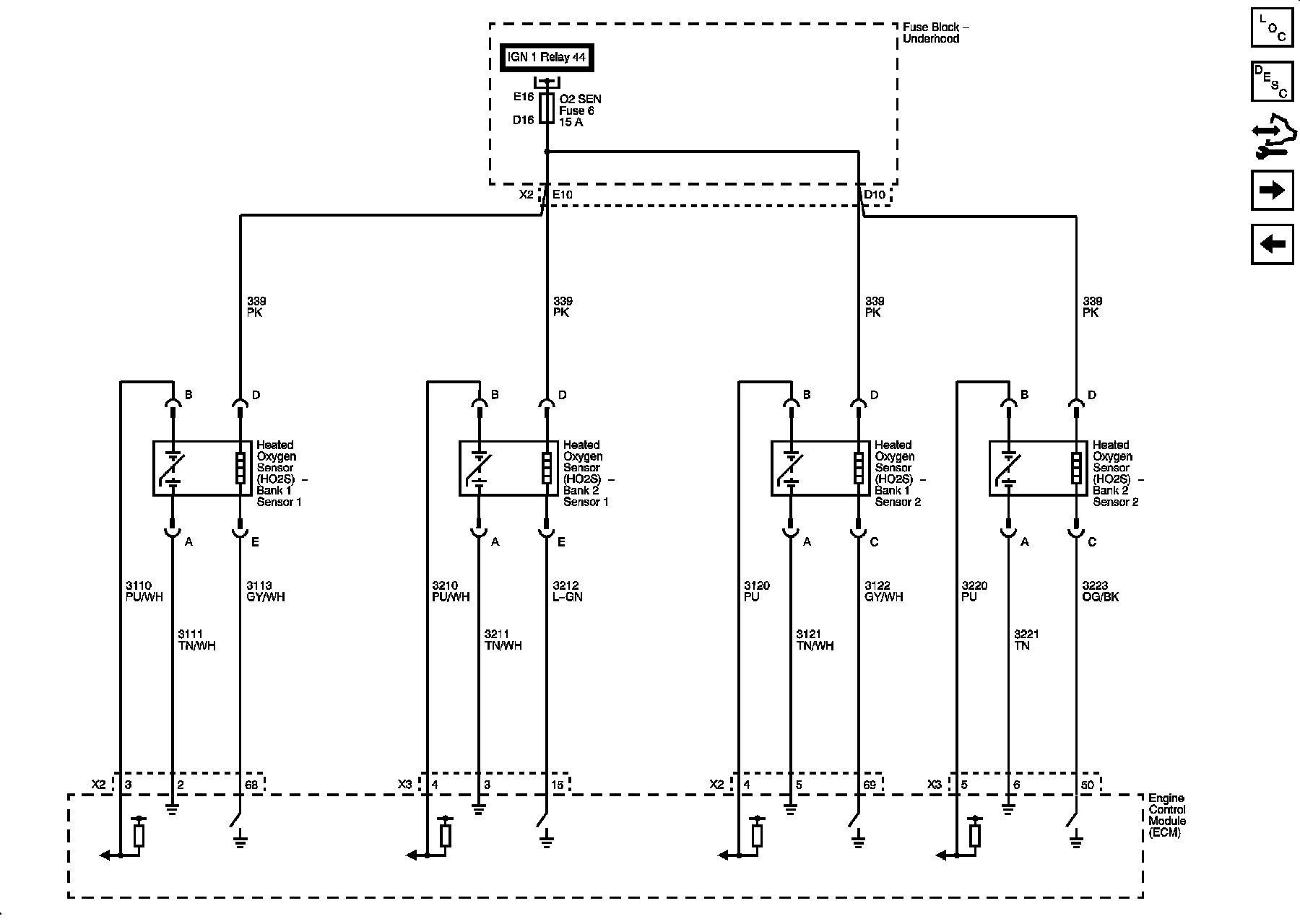

Heated Oxygen Sensors

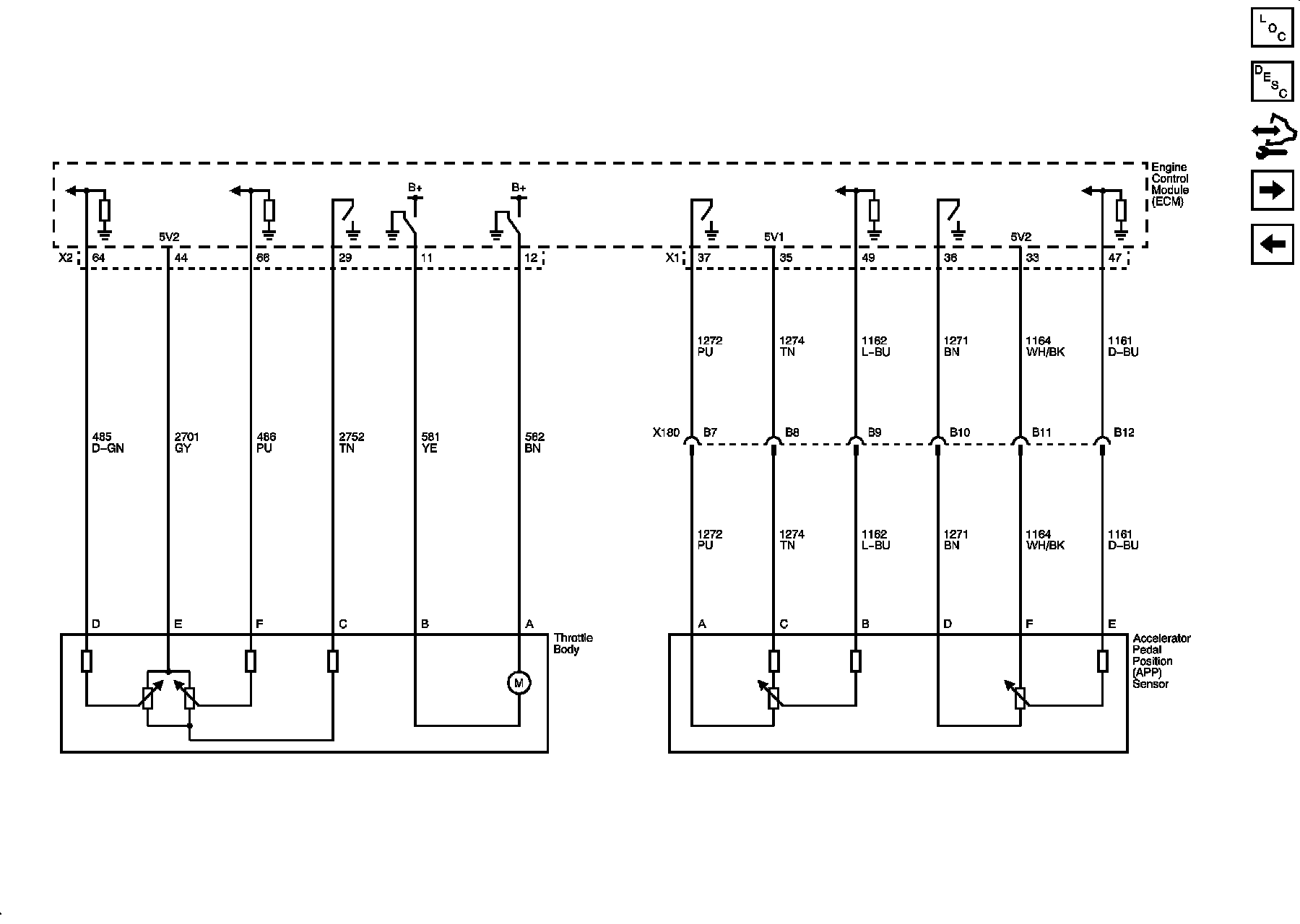

Electronic Throttle Controls

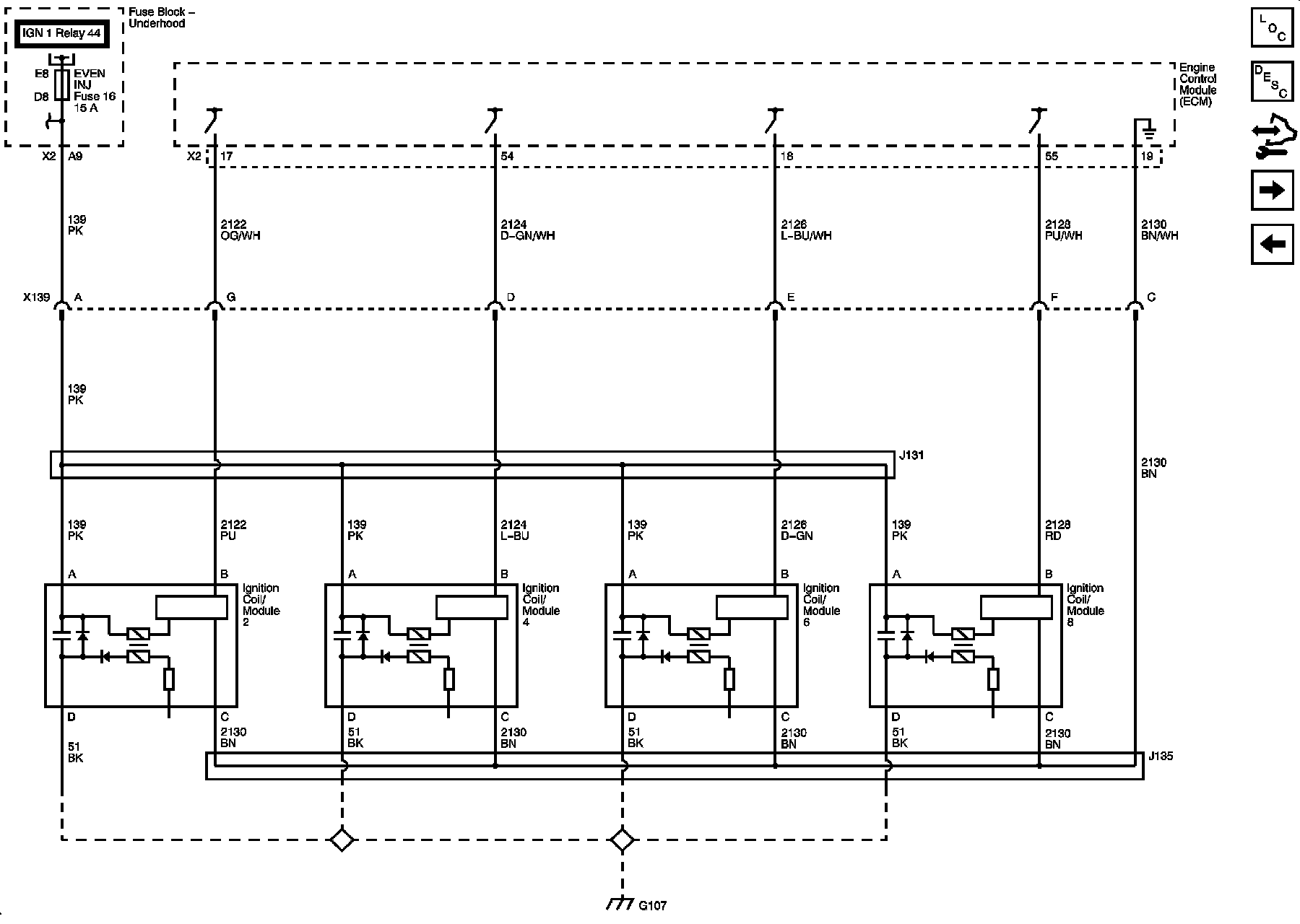

Ignition Coils Bank 1







Ignition Coils Bank 2

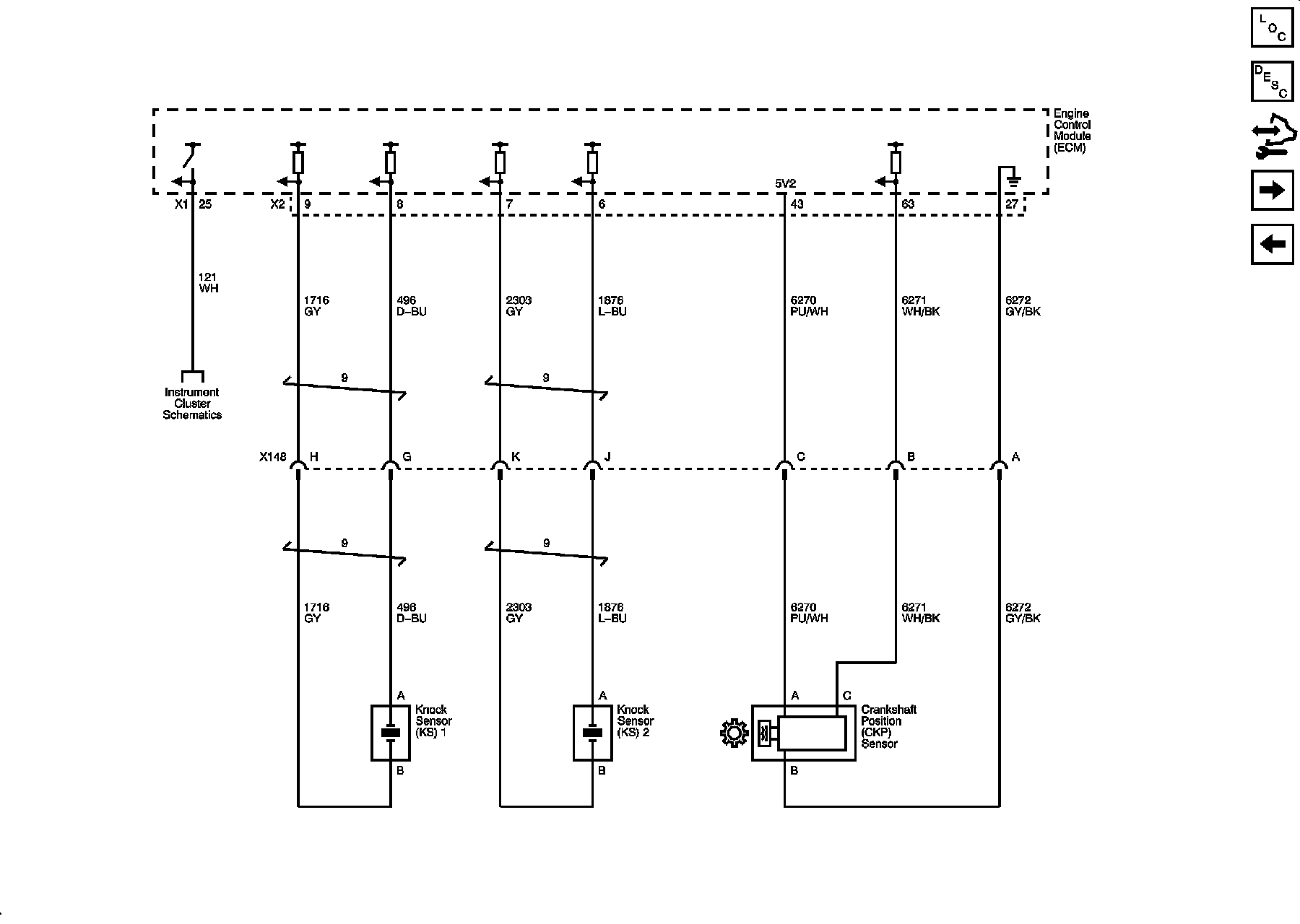

CKP and KS Sensors

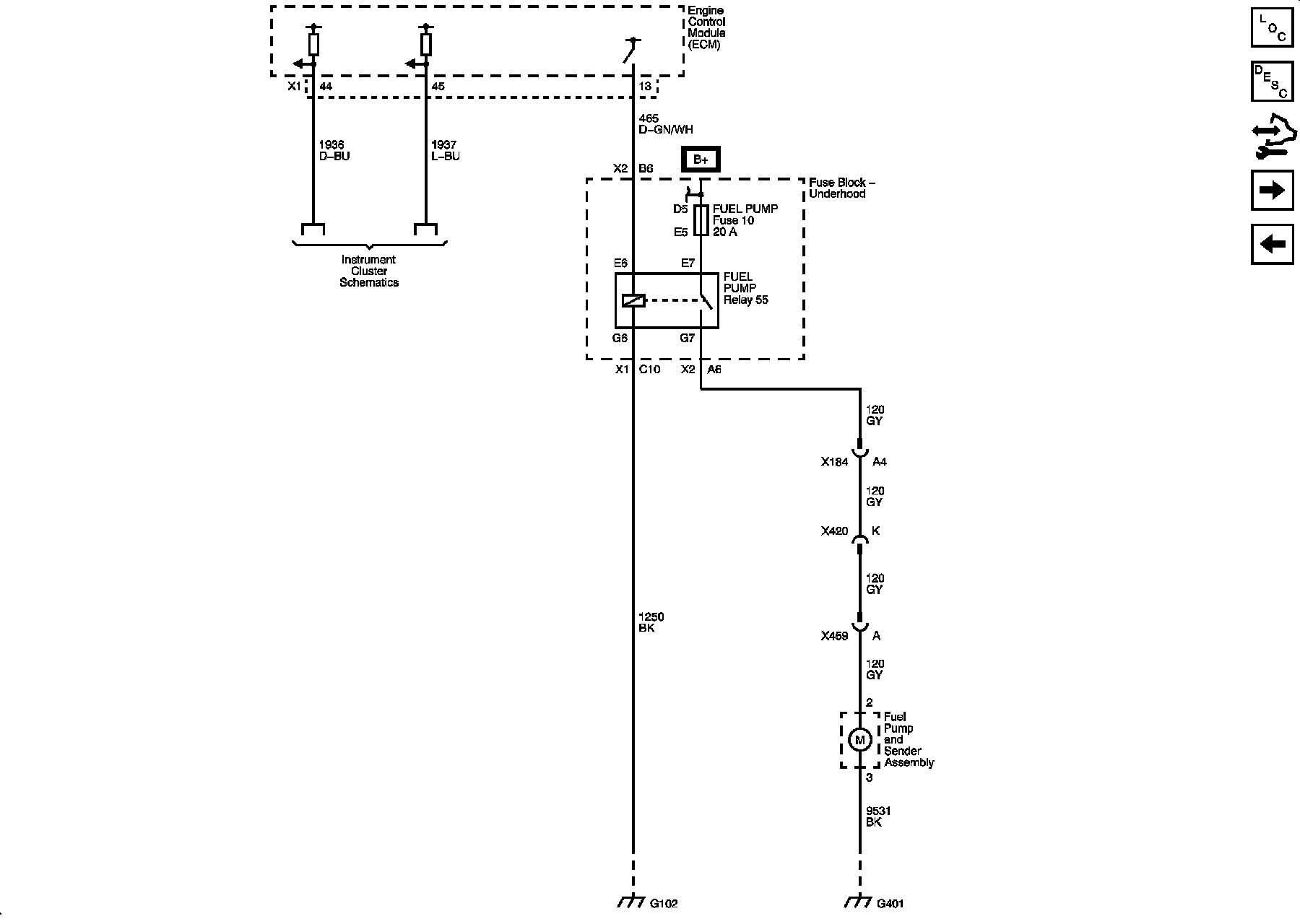

Fuel Pump Controls

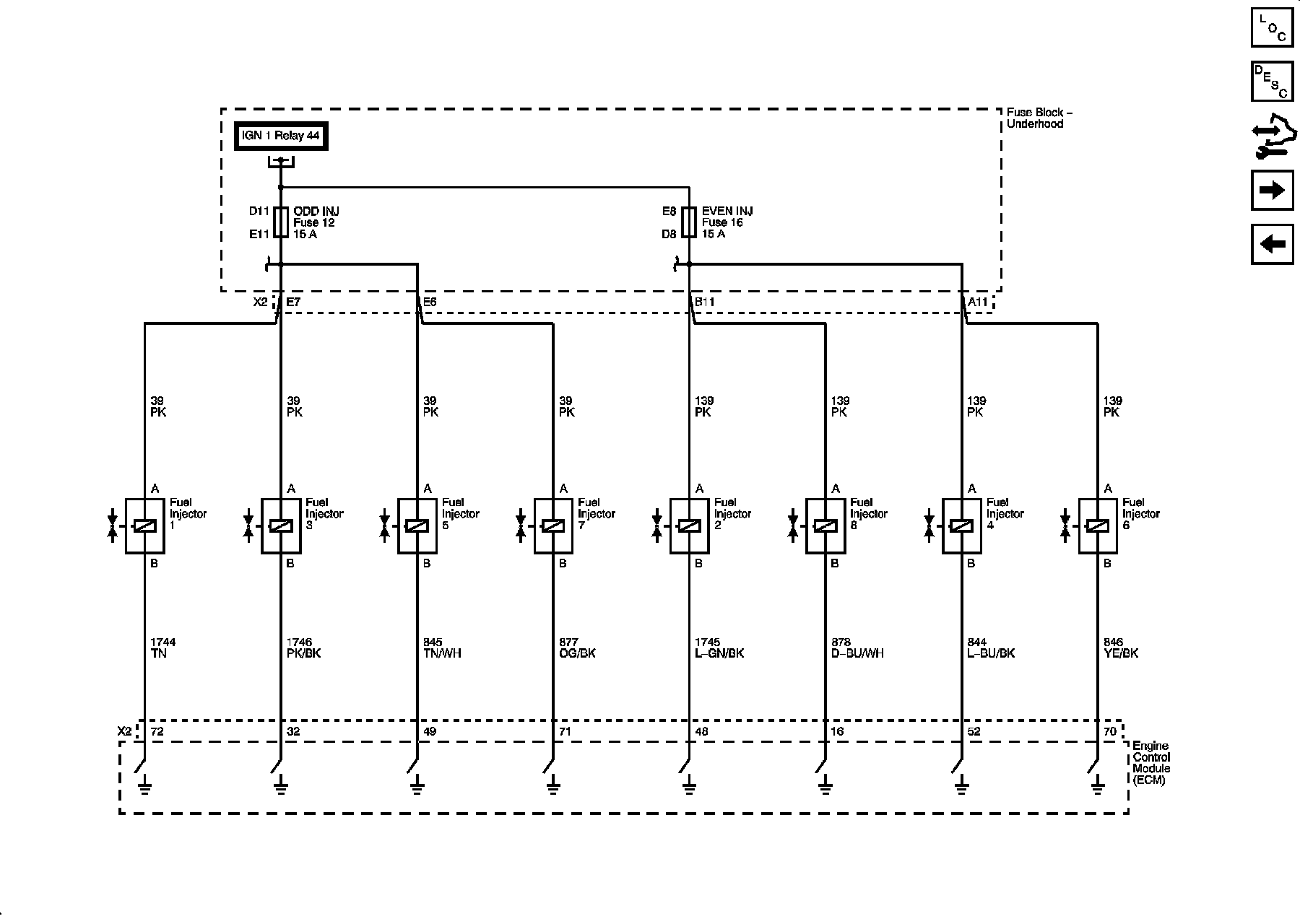

Fuel Injectors

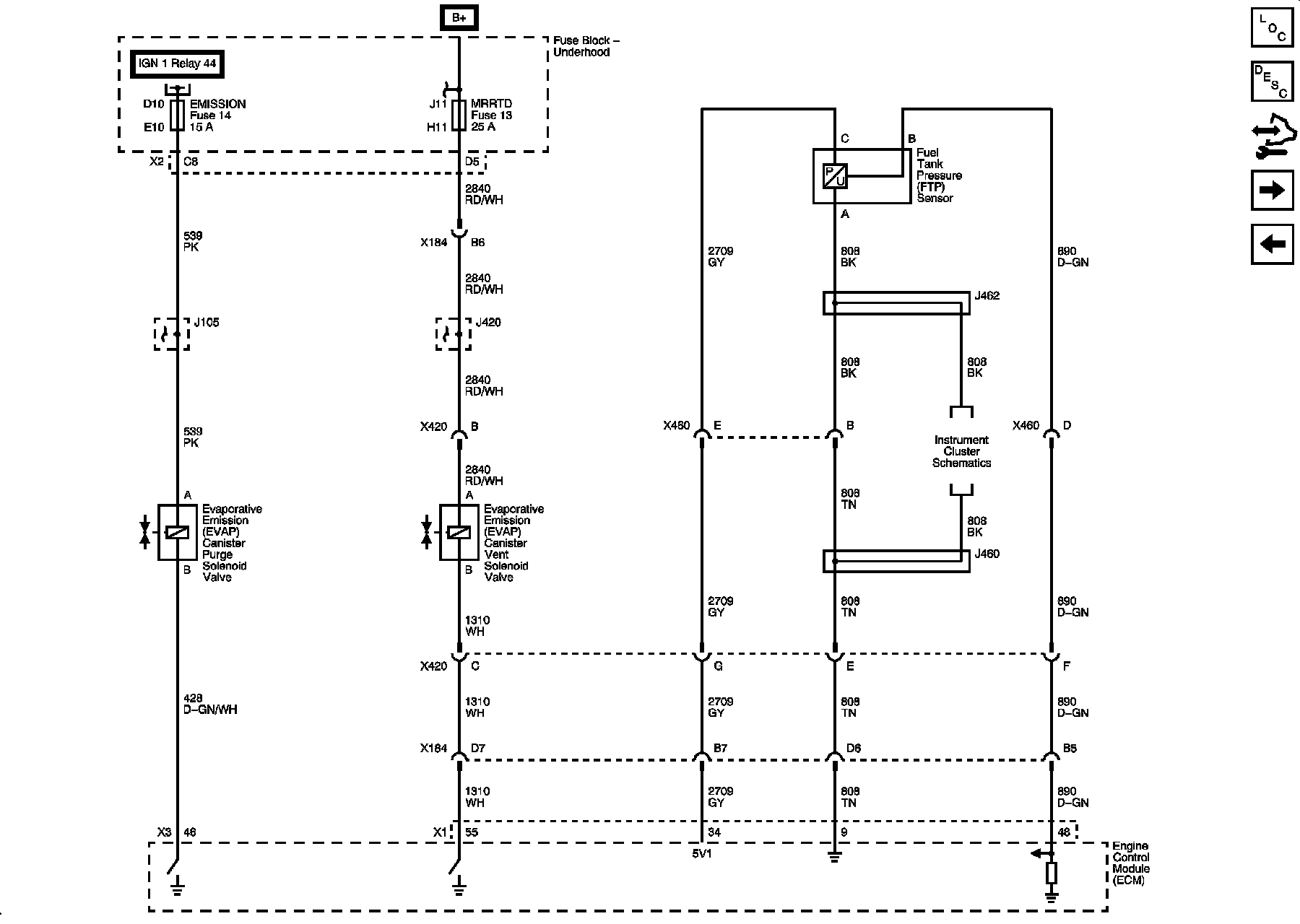

EVAP Solenoids, and FTP Sensor

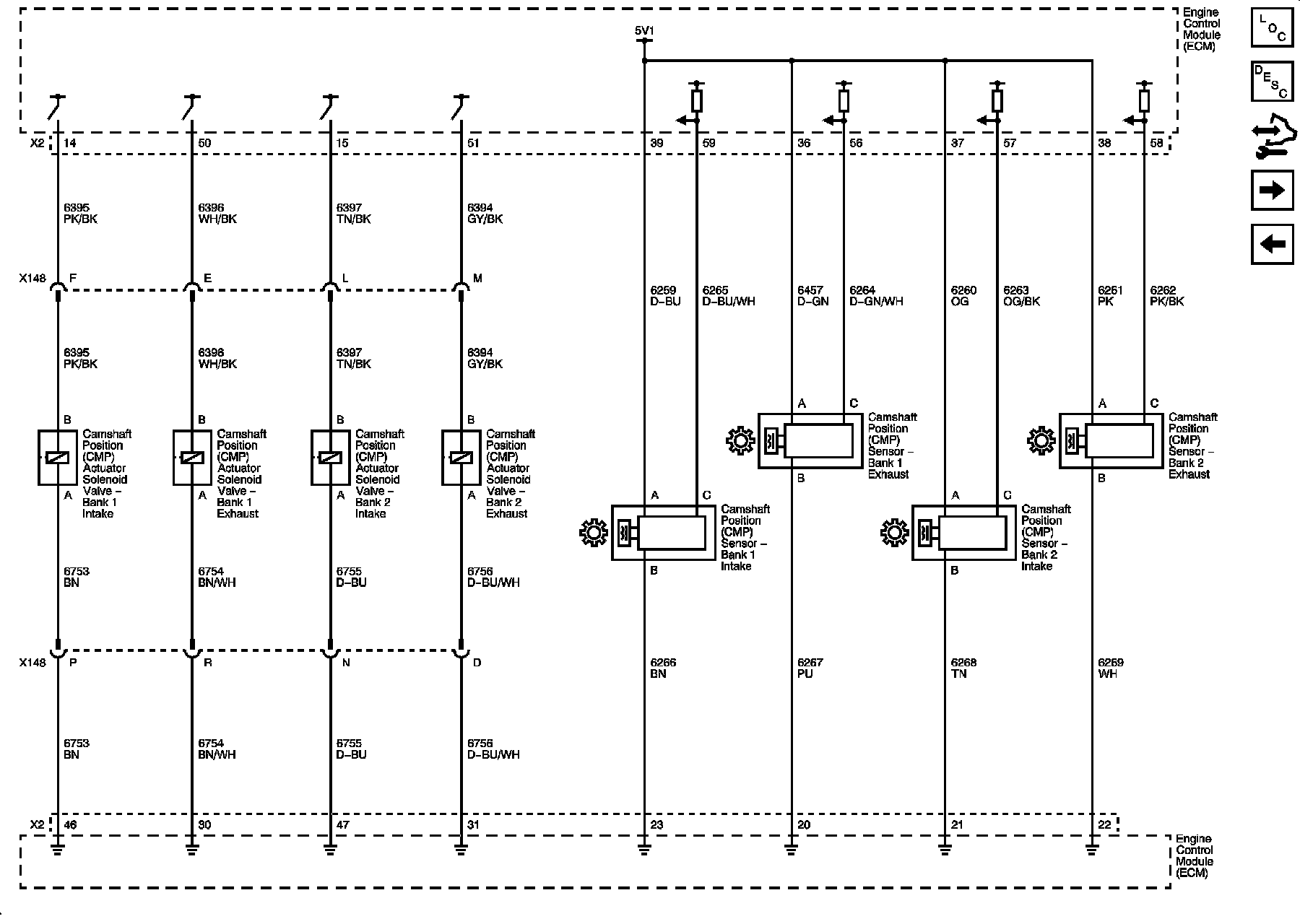

CMP Sensors, and Actuators

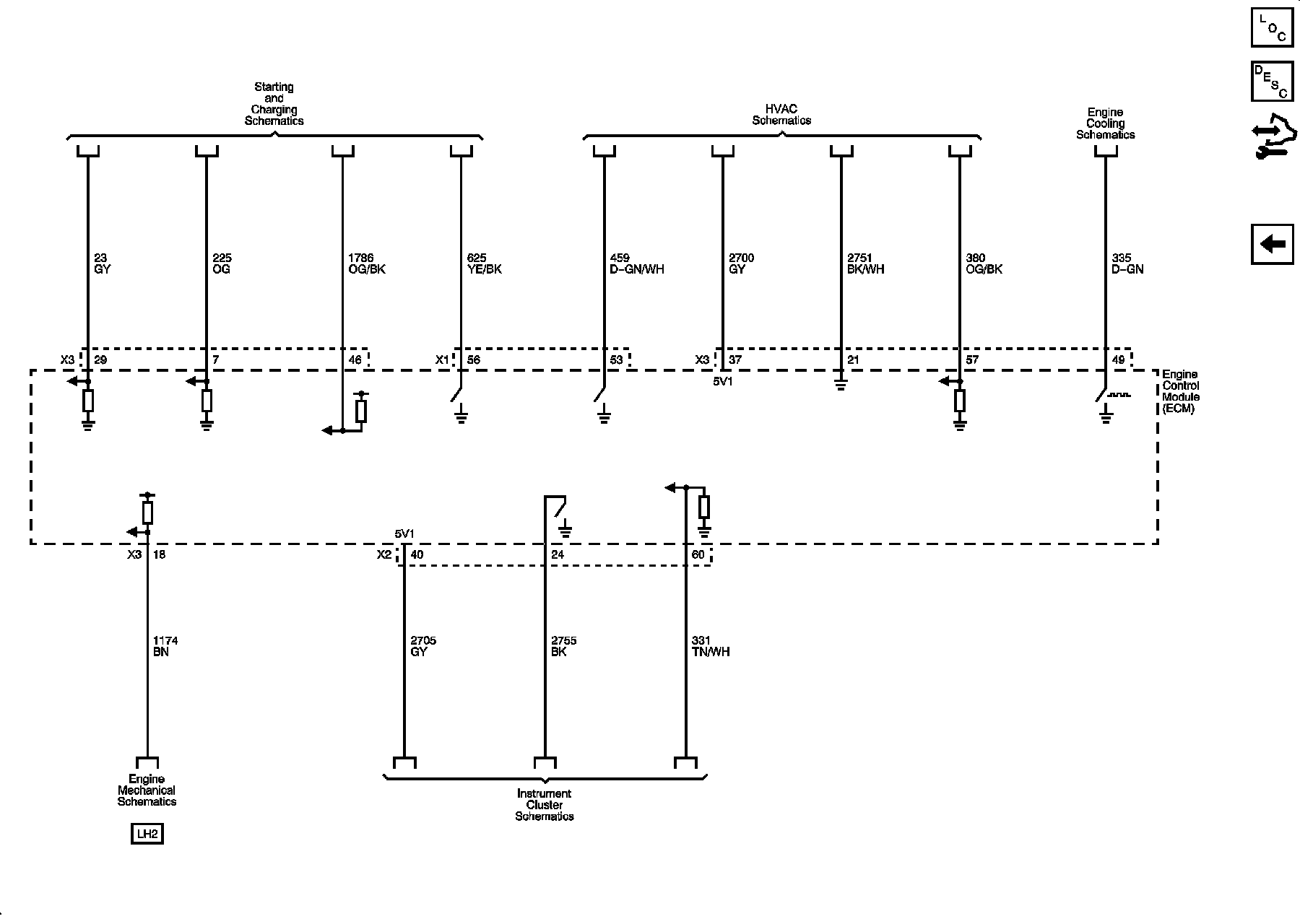

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
