X935

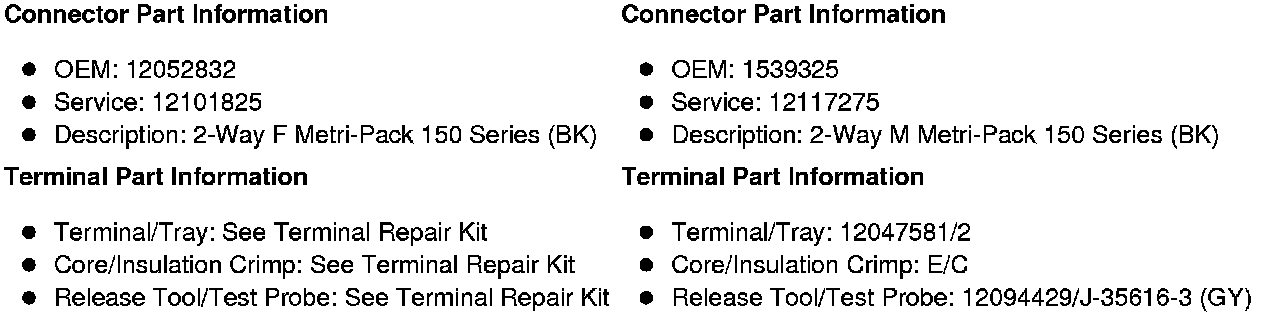

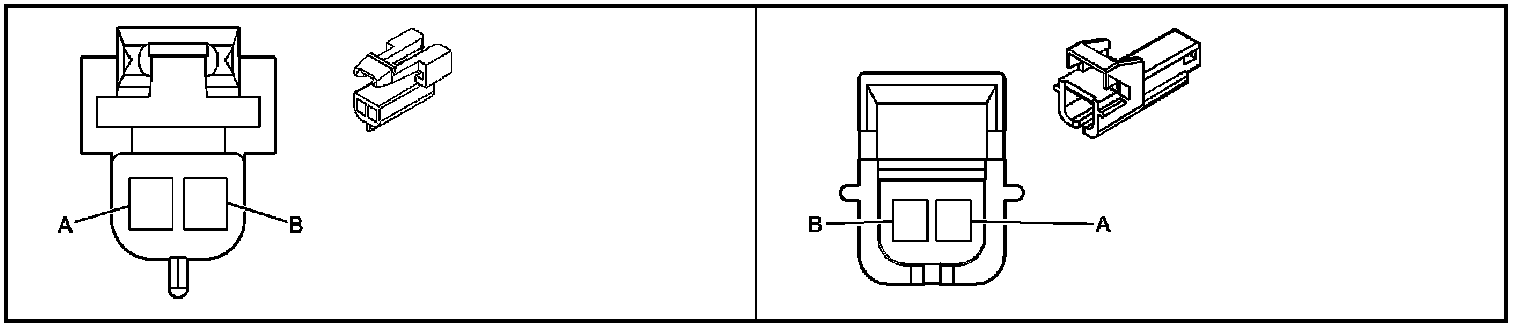

Inline Harness Connector End Views

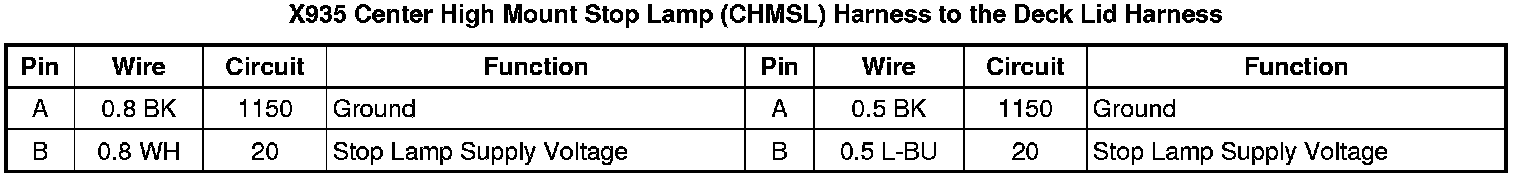

X935 Center High Mount Stop Lamp (CHMSL) Harness to the Deck Lid Harness
