Engine Grounds




Harness Routing Views

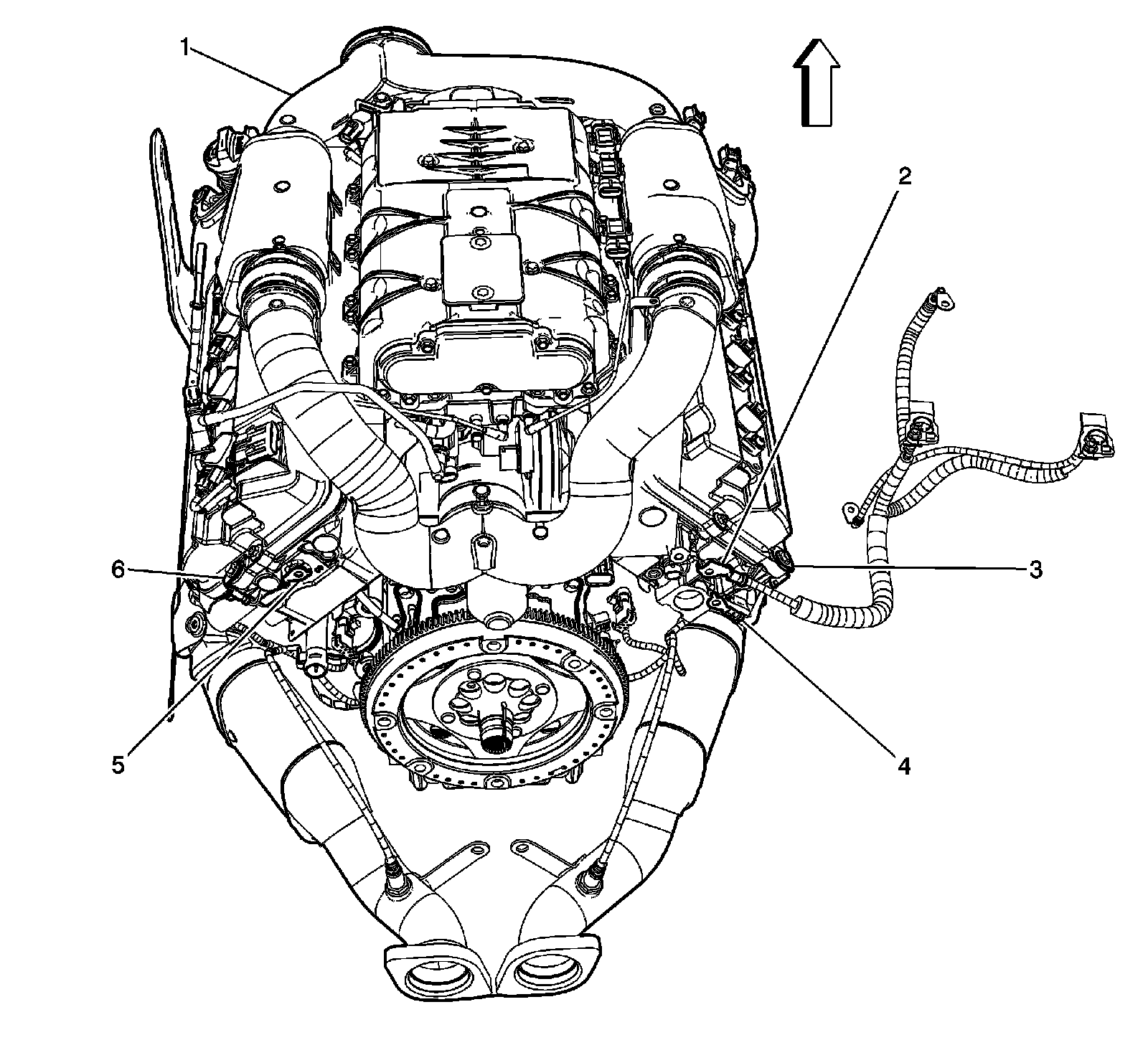

Engine Grounds




1 - Engine Assembly
2 - G107
3 - G112 (LC3)
4 - G111 (LC3)
5 - G110 (LC3)
6 - G109 (LC3)
