Repeater Lamp Bulb Replacement

Repeater Lamp Bulb Replacement

Removal Procedure

1. Remove the wheelhouse filler. Refer to Front Wheelhouse Rear Liner Replacement (Service and Repair).

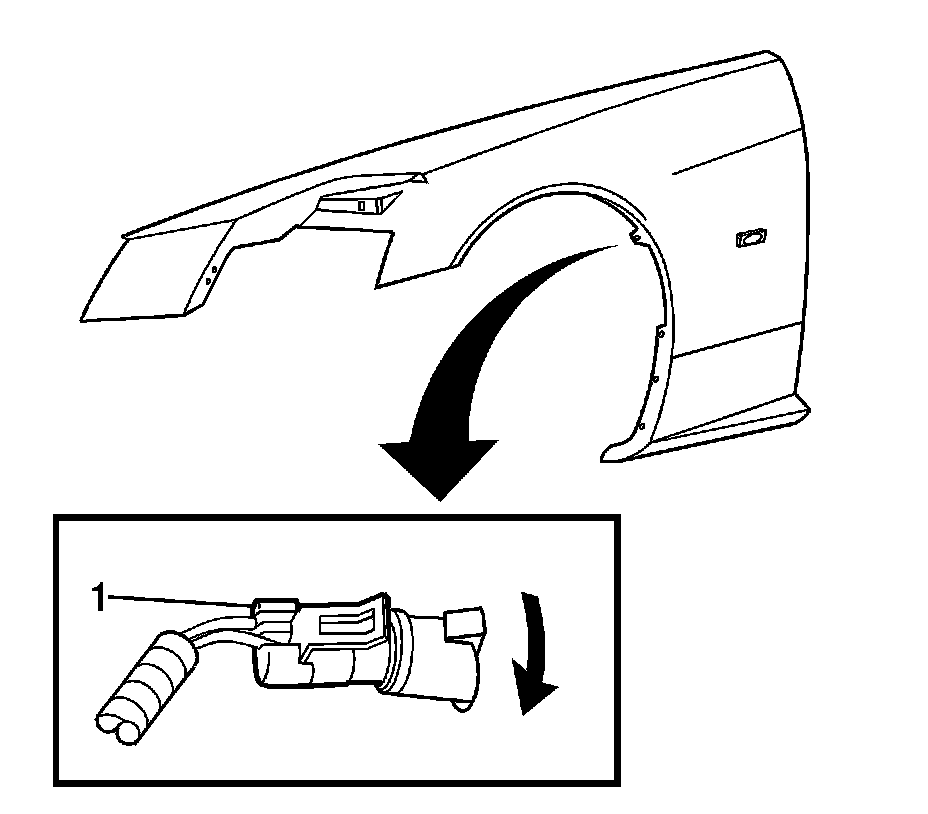

2. Remove the side lamp assembly bulb/socket by rotating the socket counterclockwise (1).

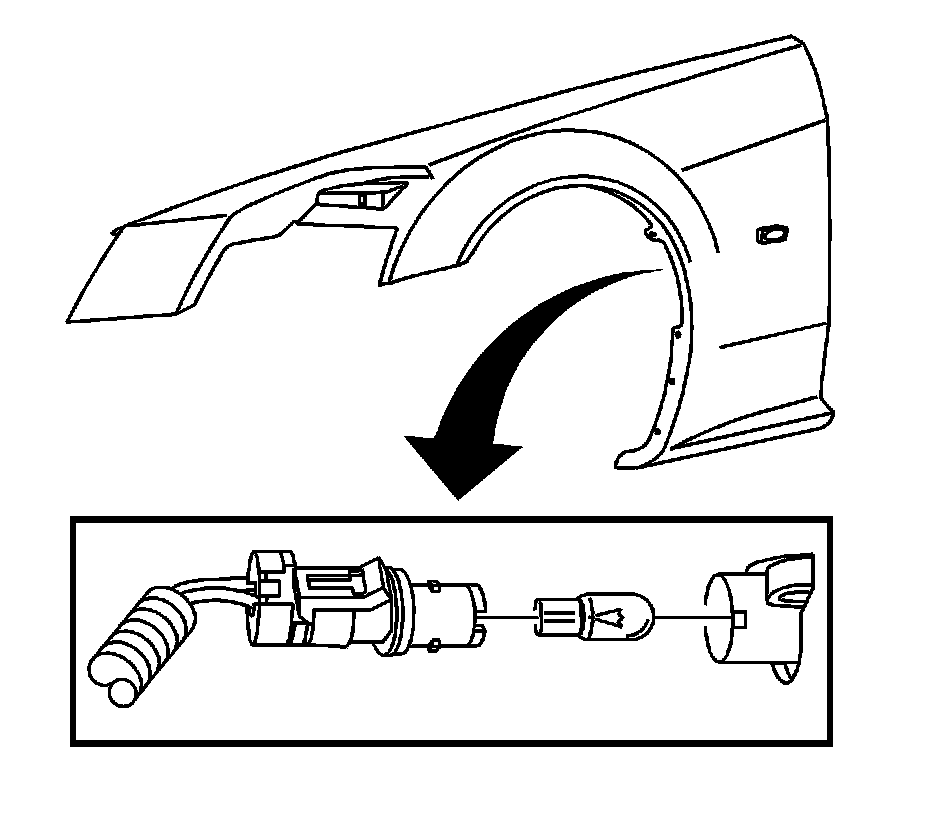

3. Remove the bulb from the socket.

Installation Procedure




1. Install the bulb to the socket.
2. Inspect the bulb for proper operation.
3. Install the side lamp bulb/socket to the side lamp.

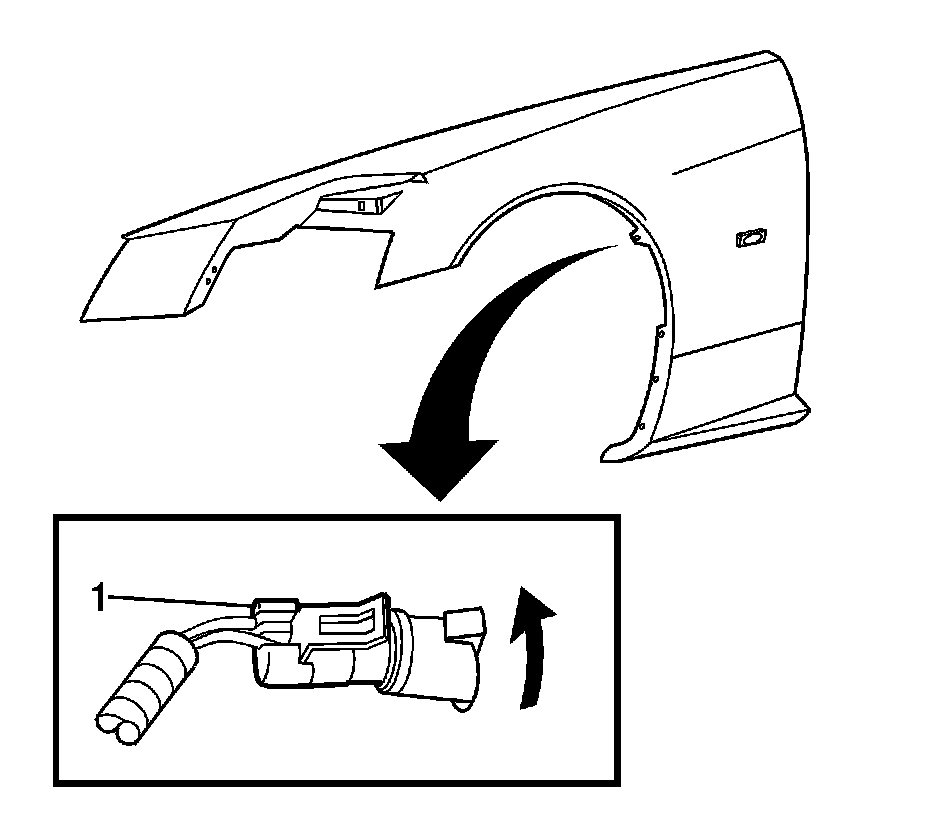

4. Rotate the bulb/socket clockwise (1) until the bulb/socket is fully seated.
5. Install the wheelhouse filler. Refer to Front Wheelhouse Rear Liner Replacement (Service and Repair).
