Home >> Cadillac >> 2009 >> XLR V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Tail Lamp - Left

Tail Lamp - Left

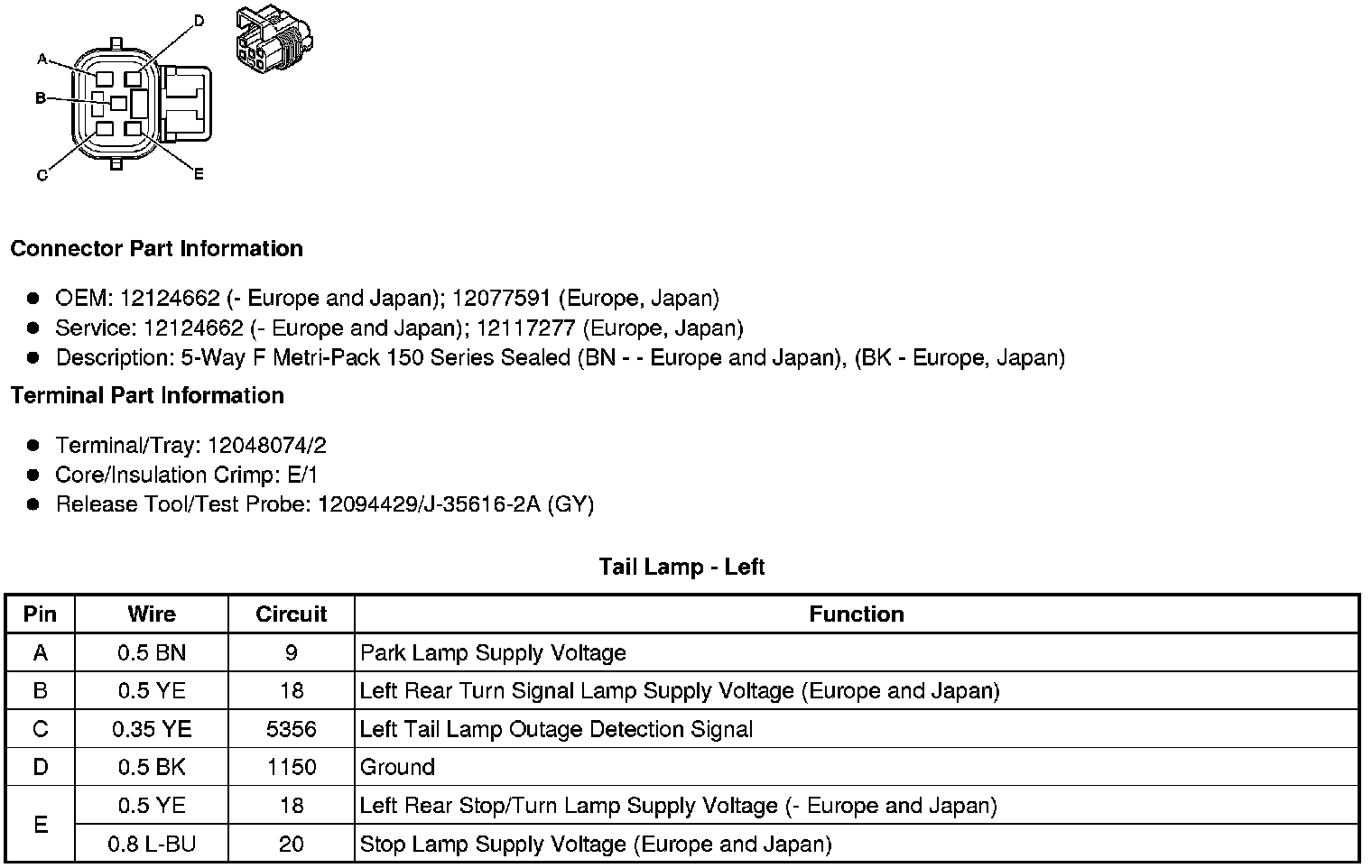

Component Connector End Views

Tail Lamp - Left
