Home >> Cadillac >> 2009 >> XLR V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Diagrams >> Park Lamp - Left Front

Park Lamp - Left Front

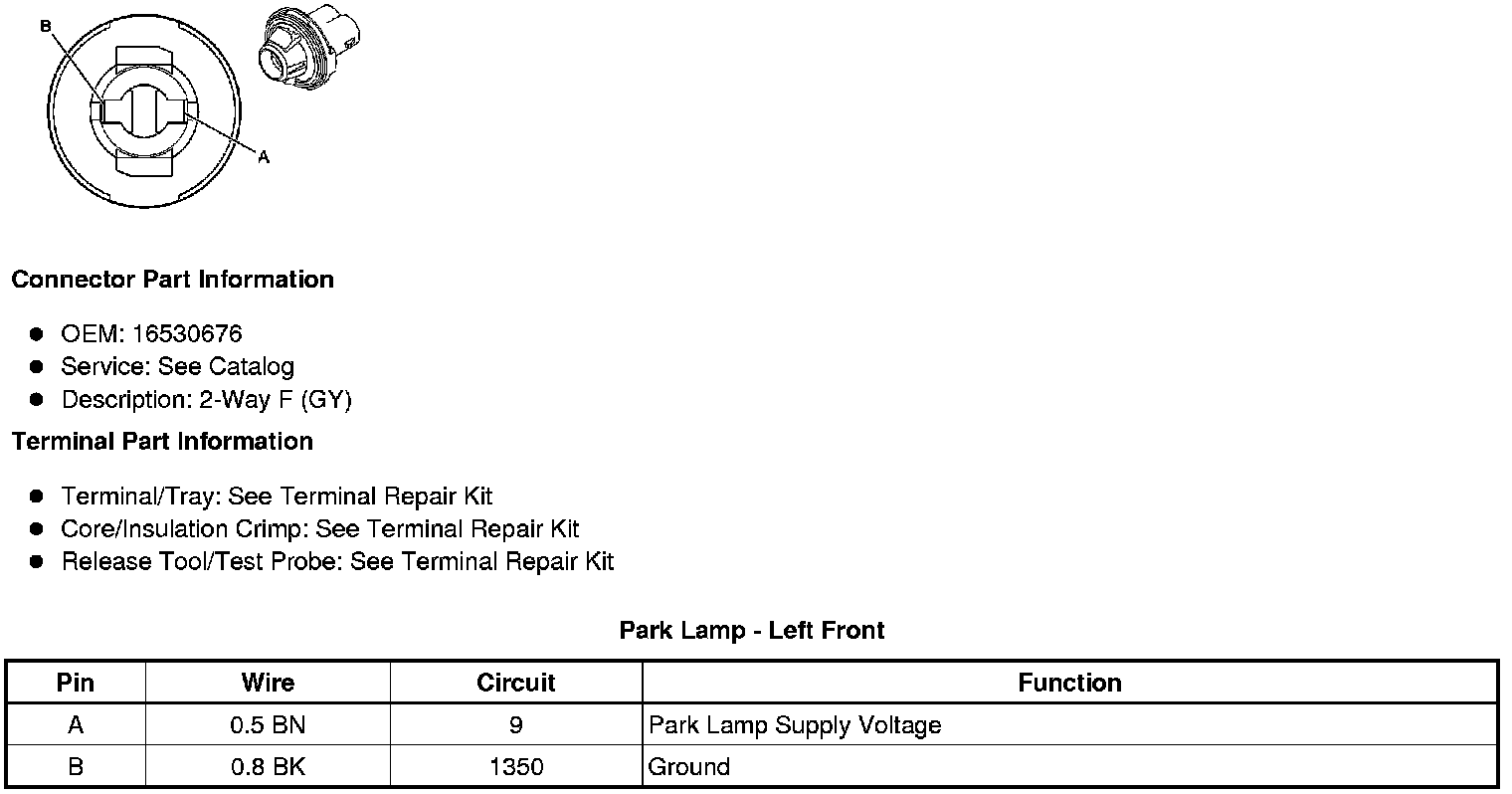

Component Connector End Views

Park Lamp - Left Front
