Headlamp - Right High Beam Solenoid

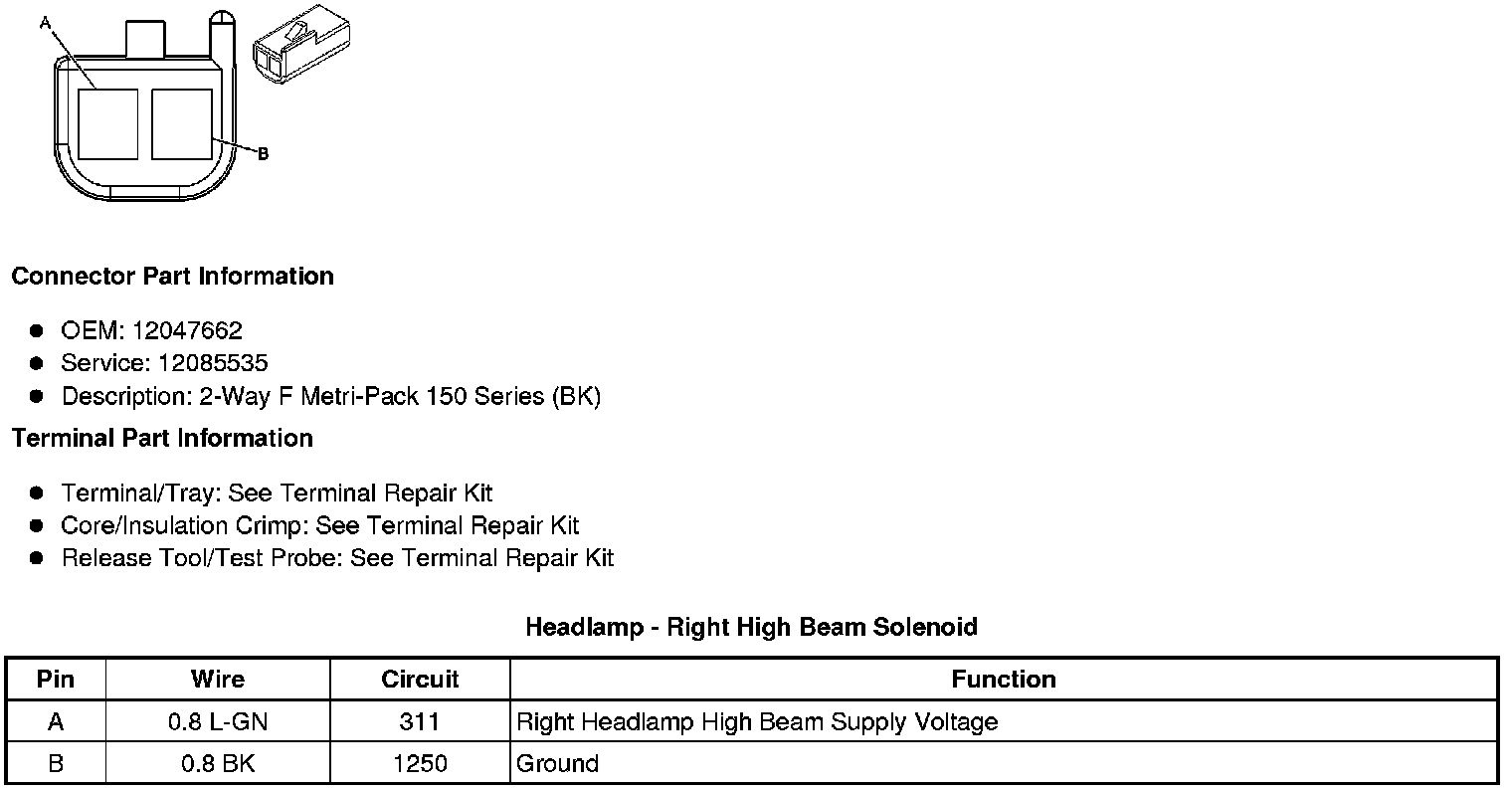

Component Connector End Views

Headlamp - Right High Beam Solenoid
