Home >> Cadillac >> 2009 >> XLR V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Fog Lamp - Left Rear (Europe)

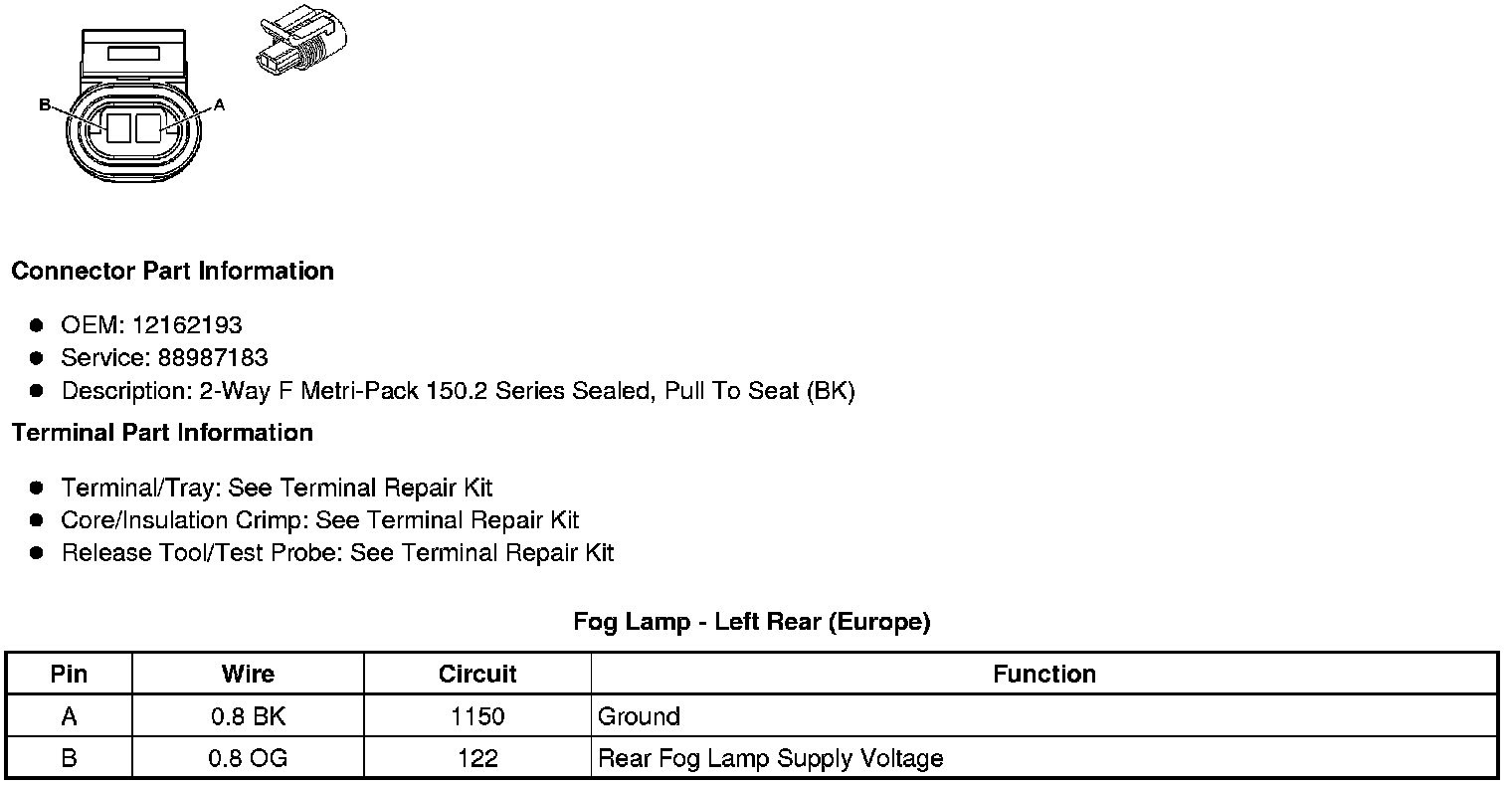

Fog Lamp - Left Rear (Europe)




Component Connector End Views

Fog Lamp - Left Rear (Europe)
