Instrument Panel Courtesy Lamp Bulb Replacement

Instrument Panel Courtesy Lamp Bulb Replacement

Removal Procedure




1. Using a flat-bladed screwdriver or similar tool, unsnap the instrument panel (IP) courtesy lamp from the IP lower closeout panel.

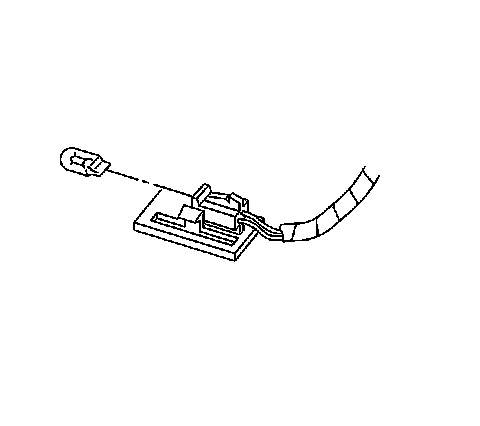

2. Remove the bulb from the socket, if replacing.

Installation Procedure




1. Install the bulb to the socket, if replacing.




2. Install the IP courtesy lamp into the IP lower closeout panel.
Push on the lamp snapping the lamp into the panel.
