Glove Box Lamp: Service and Repair

Instrument Panel Compartment Lamp Bulb Replacement

Removal Procedure




1. Open the instrument panel (IP) passenger compartment door.

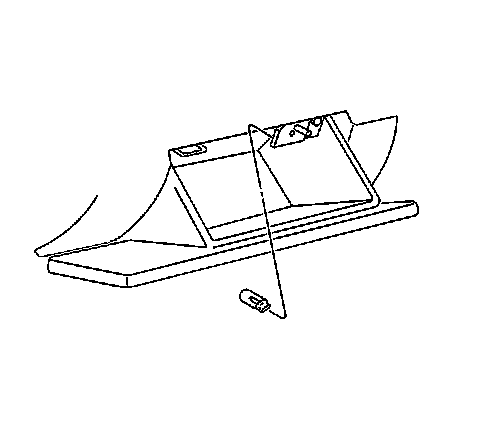

2. Reach behind the IP compartment lamp switch, grasp the bulb, then pull the bulb to remove.

Installation Procedure




1. Install the bulb to the socket in the back of the switch.
2. Close the IP passenger compartment door.
