Glove Box Lamp Switch: Service and Repair

Instrument Panel Compartment Lamp Switch Replacement

Removal Procedure




1. Remove the instrument panel (IP) passenger compartment. Refer to Instrument Panel Compartment Replacement (Service and Repair).

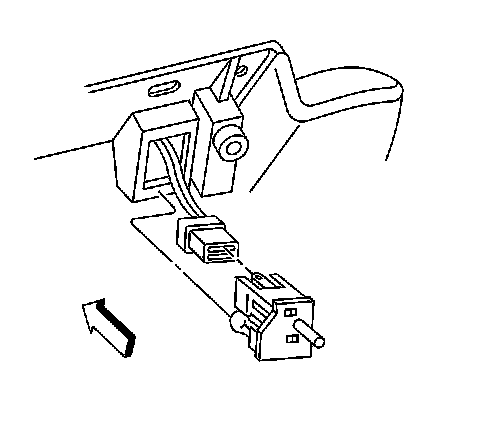

2. Depress the tabs on the sides of the IP compartment lamp switch.
3. Carefully push the switch and lamp unit out of the opening and remove.

Installation Procedure




1. Position the IP compartment lamp and switch unit into the opening in the IP passenger compartment.
2. Push on the switch snapping the switch into the panel.
3. Install the IP passenger compartment. Refer to Instrument Panel Compartment Replacement (Service and Repair).
