Rear Compartment Courtesy Lamp - Left

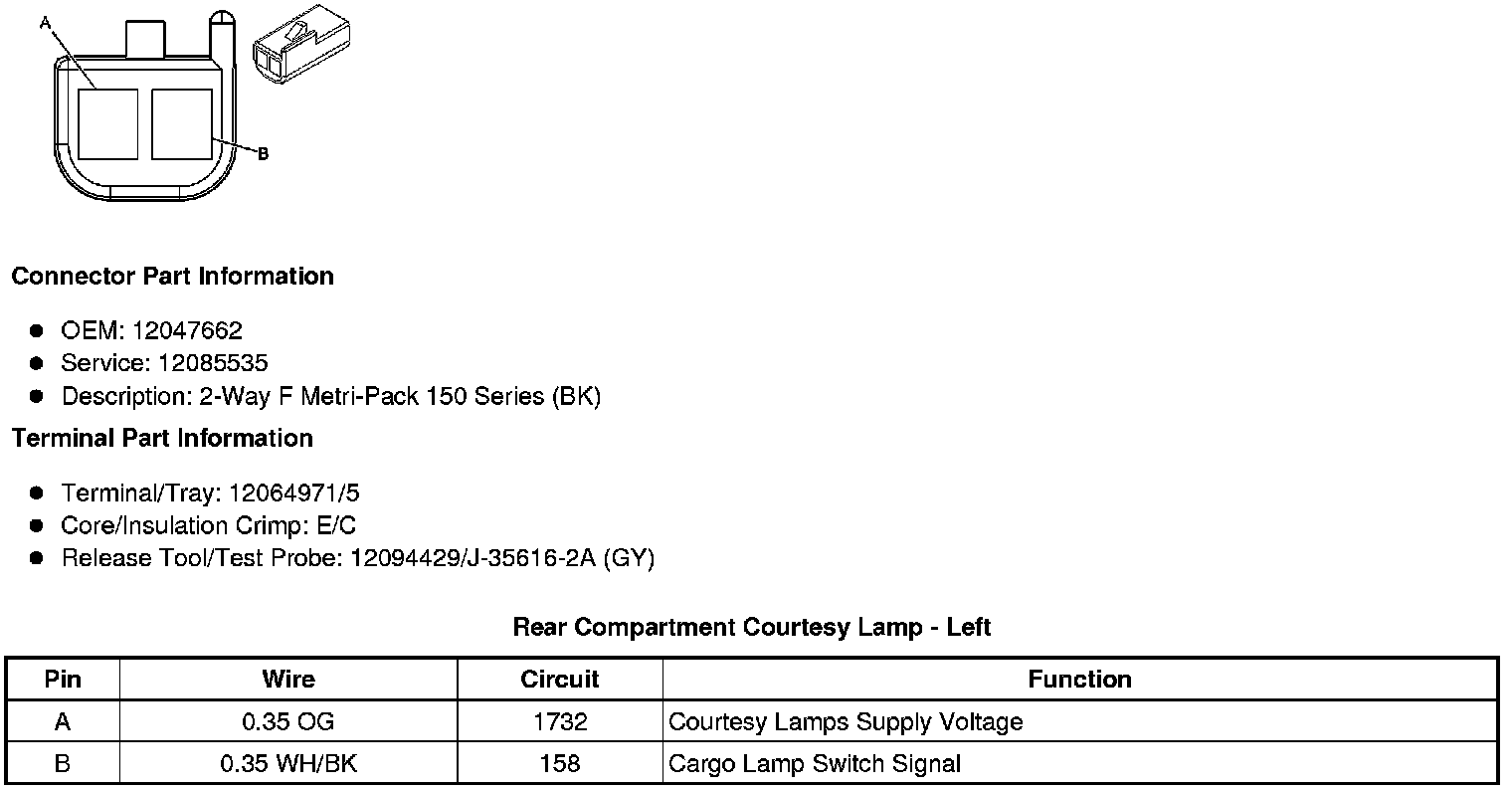

Component Connector End Views

Rear Compartment Courtesy Lamp - Left
