Door Courtesy Lamp - Passenger
Door Courtesy Lamp - Passenger

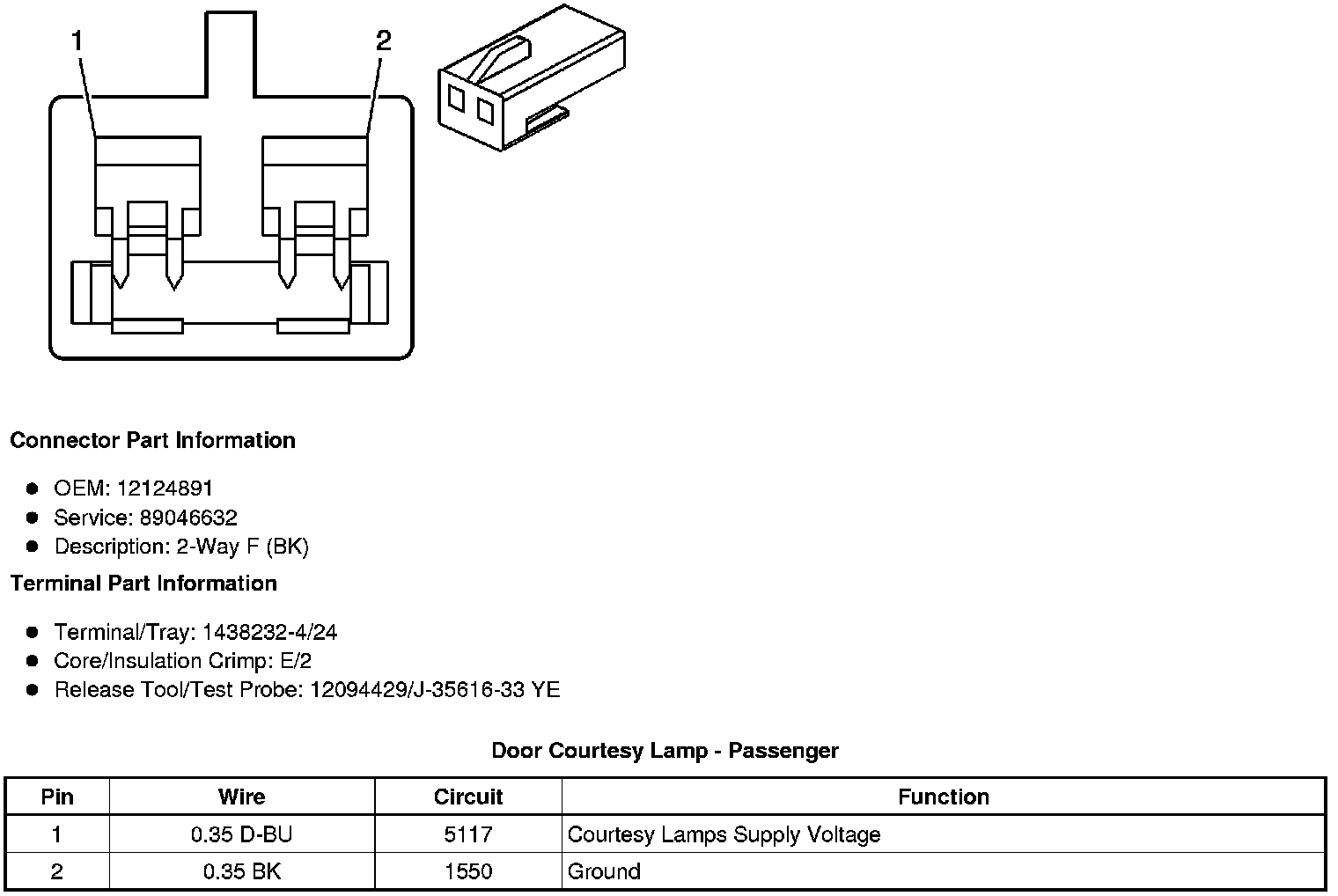

Component Connector End Views
Door Courtesy Lamp - Passenger
