Electrical Diagrams




HVAC Schematics

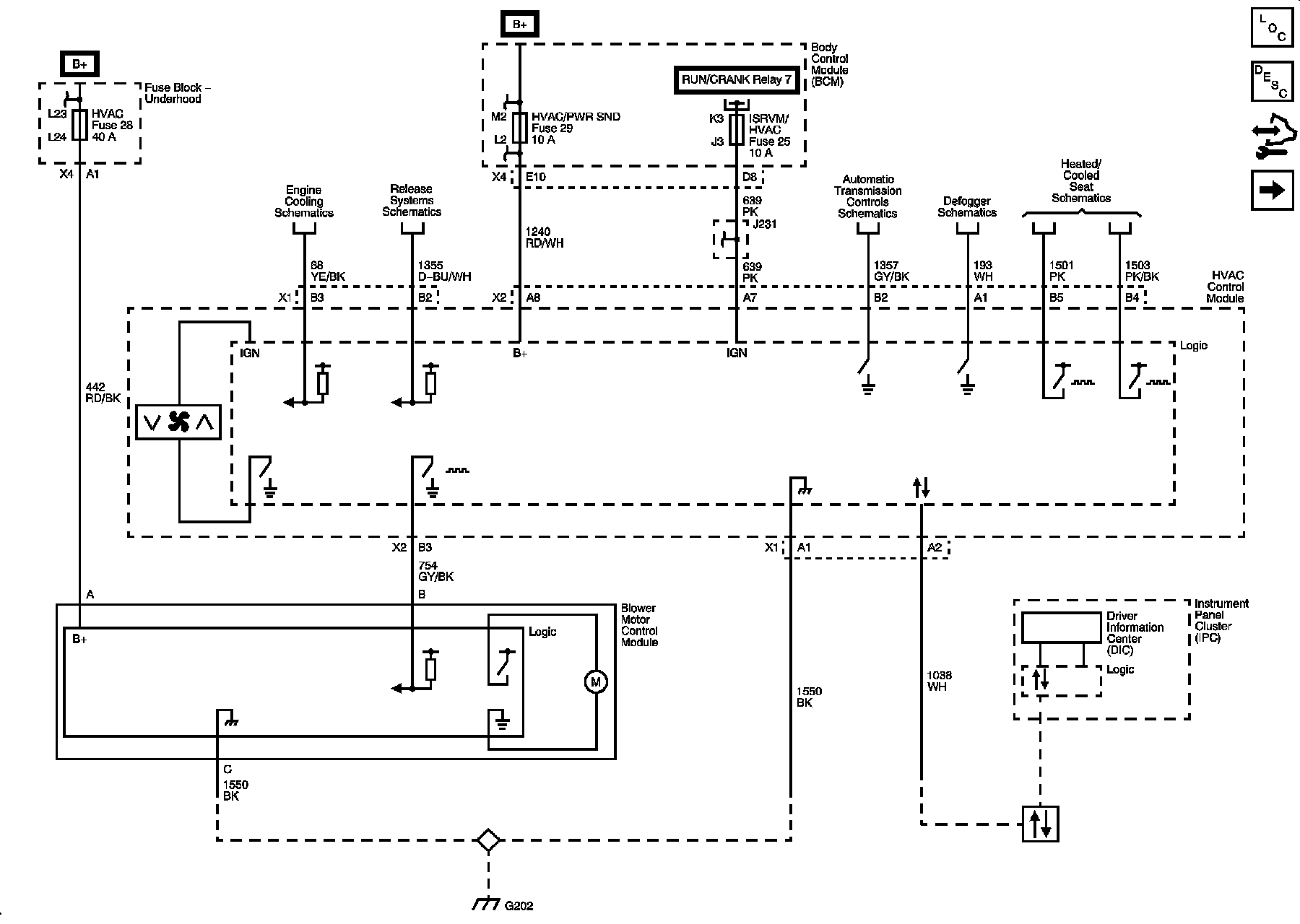

Power, Ground, and Blower Motor Controls

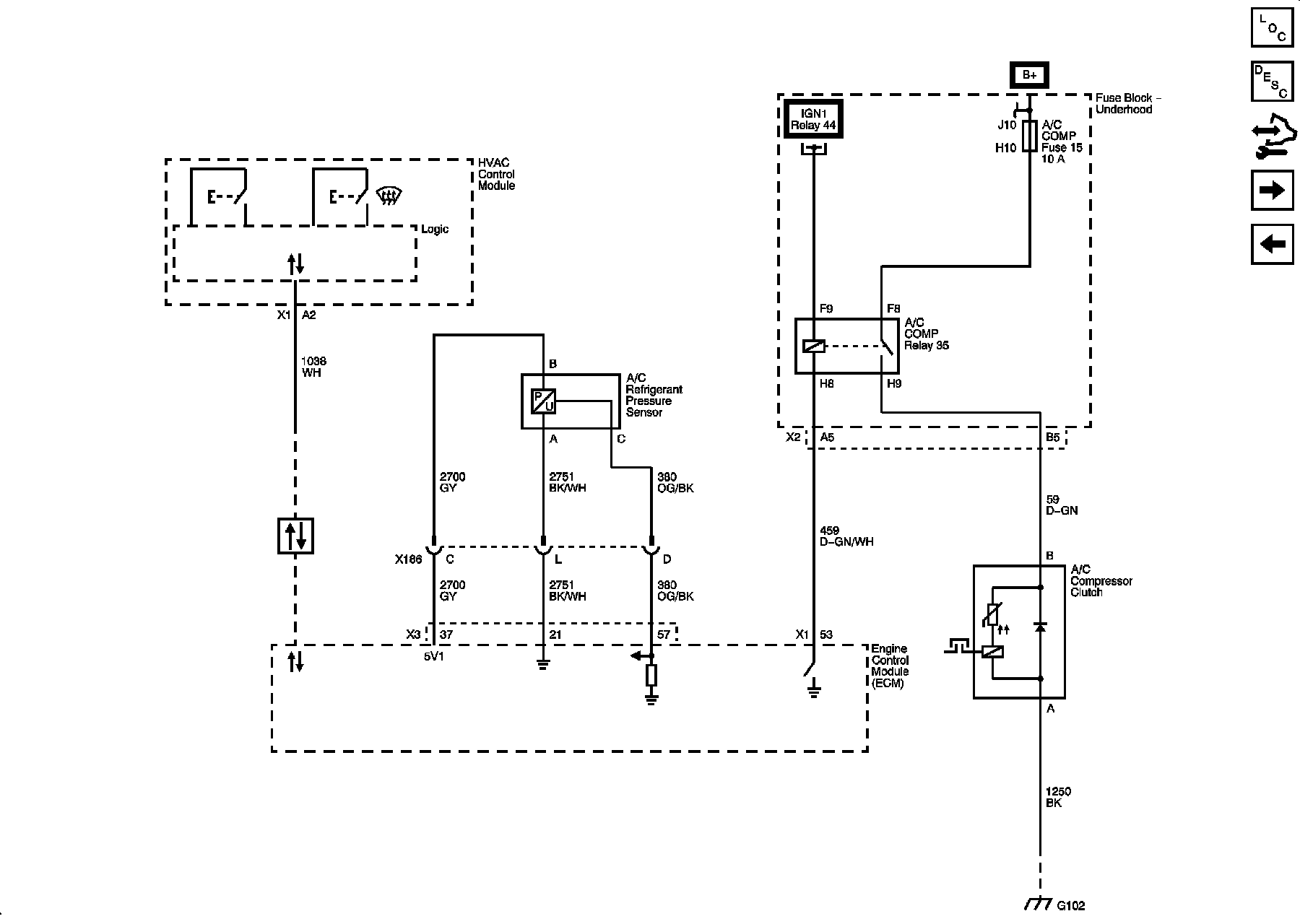

A/C Compressor Controls

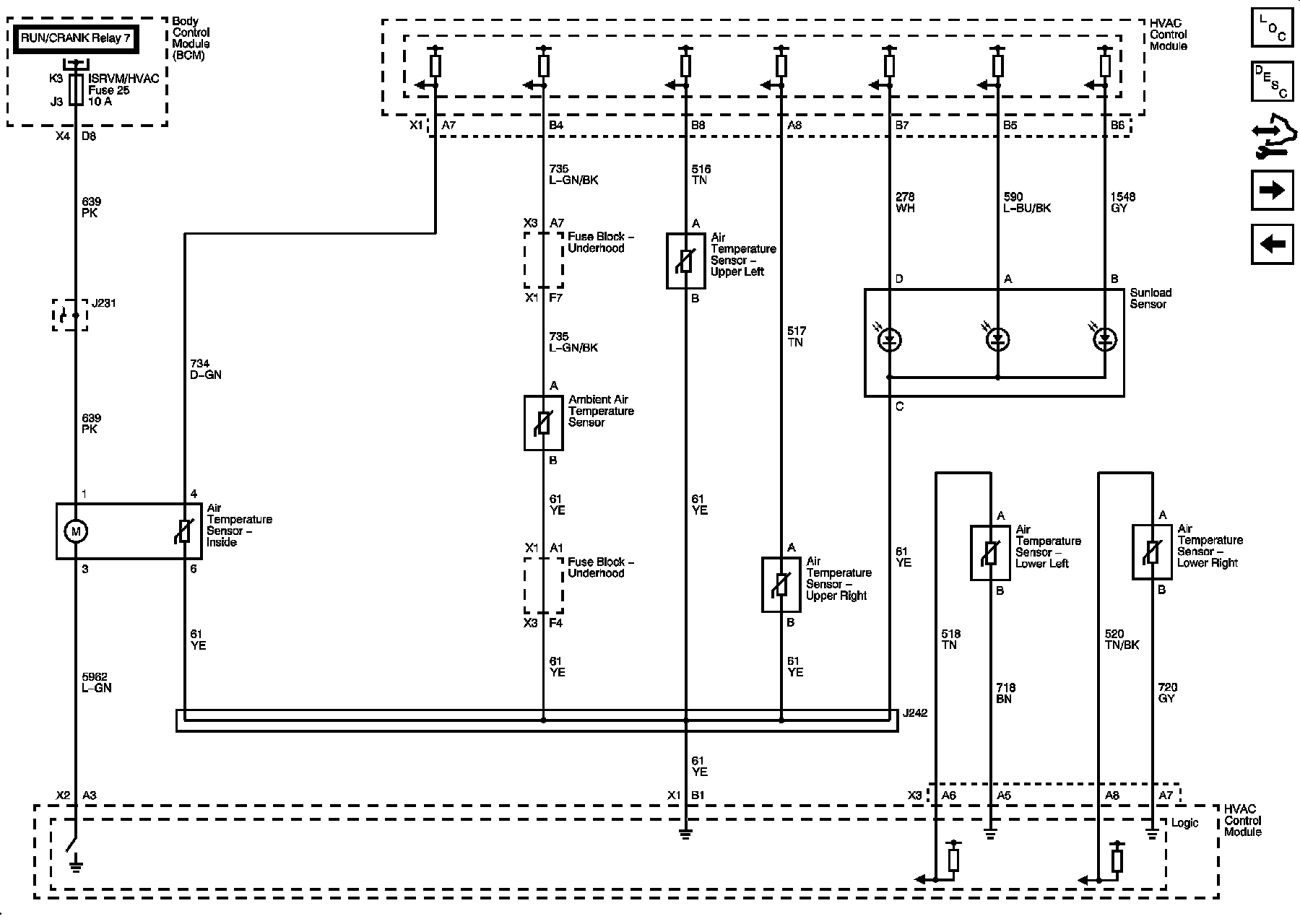

Temperature Sensors

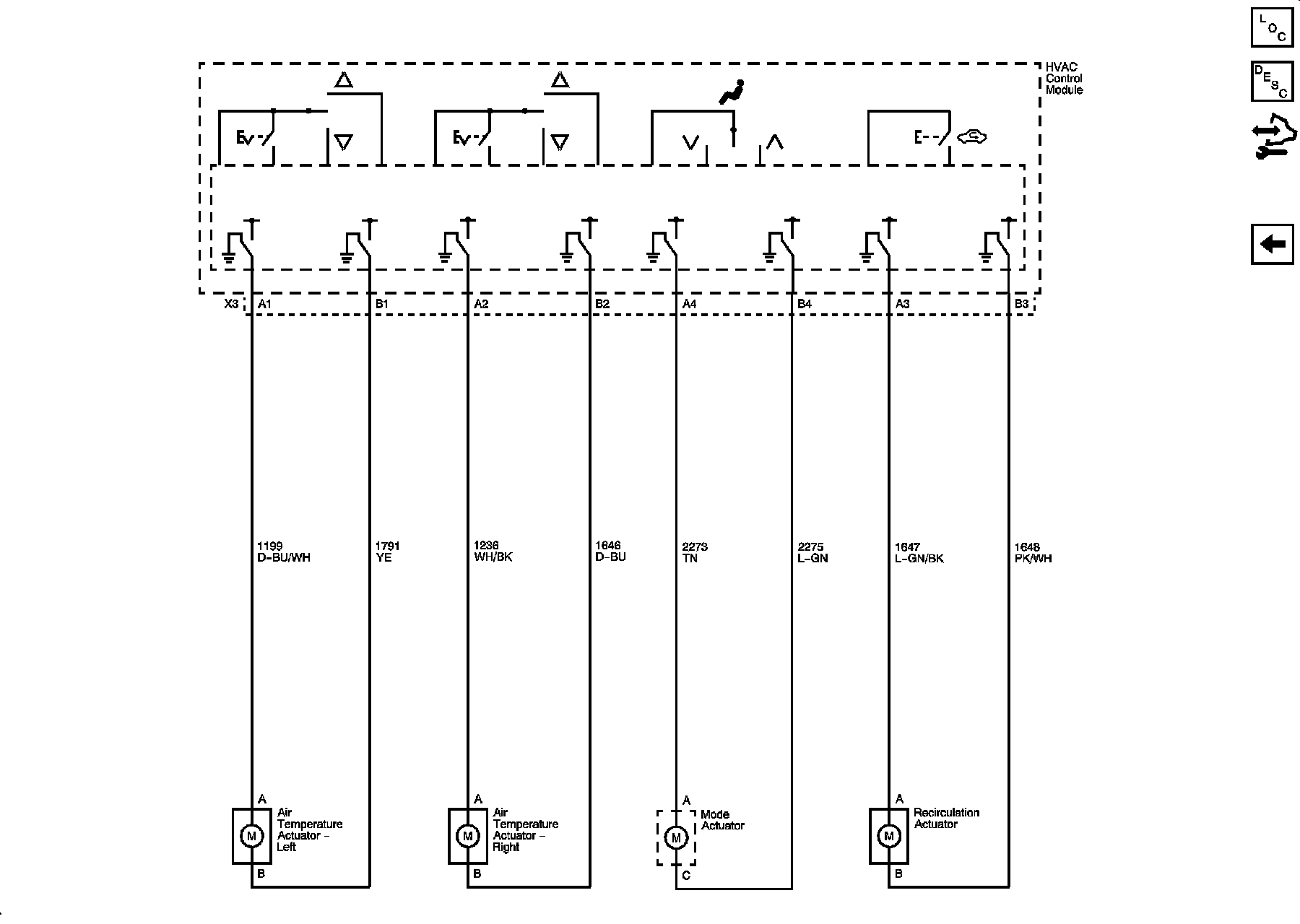

Mode and Air Temperature Controls
