Cabin Ventilation Grille: Service and Repair

Pressure Relief Valve Replacement

Removal Procedure

1. Open the rear compartment.
2. Pull back the rear compartment passenger trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side (Service and Repair).

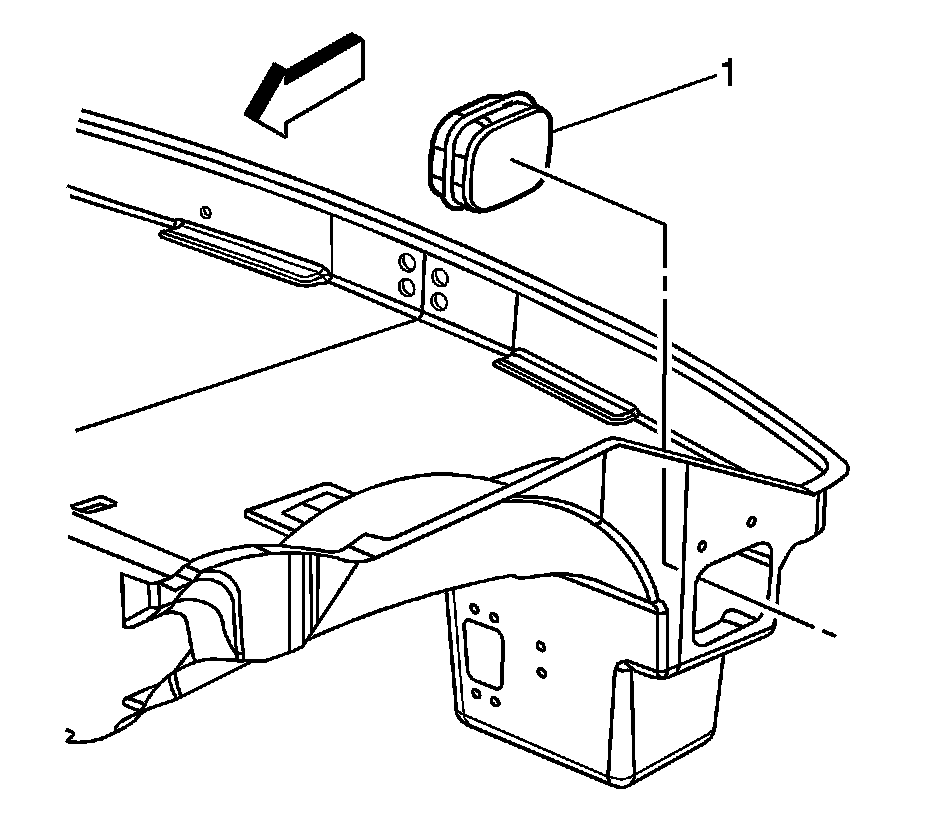

3. Release the tabs attaching the valve (1) to the rear compartment panel.

Installation Procedure




1. Position the valve (1) to the rear compartment panel with the flaps hanging down.
2. Press the valve into place.
3. Re-Position the rear compartment passenger trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side (Service and Repair).
4. Close the rear compartment.
