Air Distributor Duct Replacement

Air Distributor Duct Replacement

Removal Procedure




1. Remove the I/P assembly. Refer to Instrument Panel Carrier Replacement (Service and Repair).

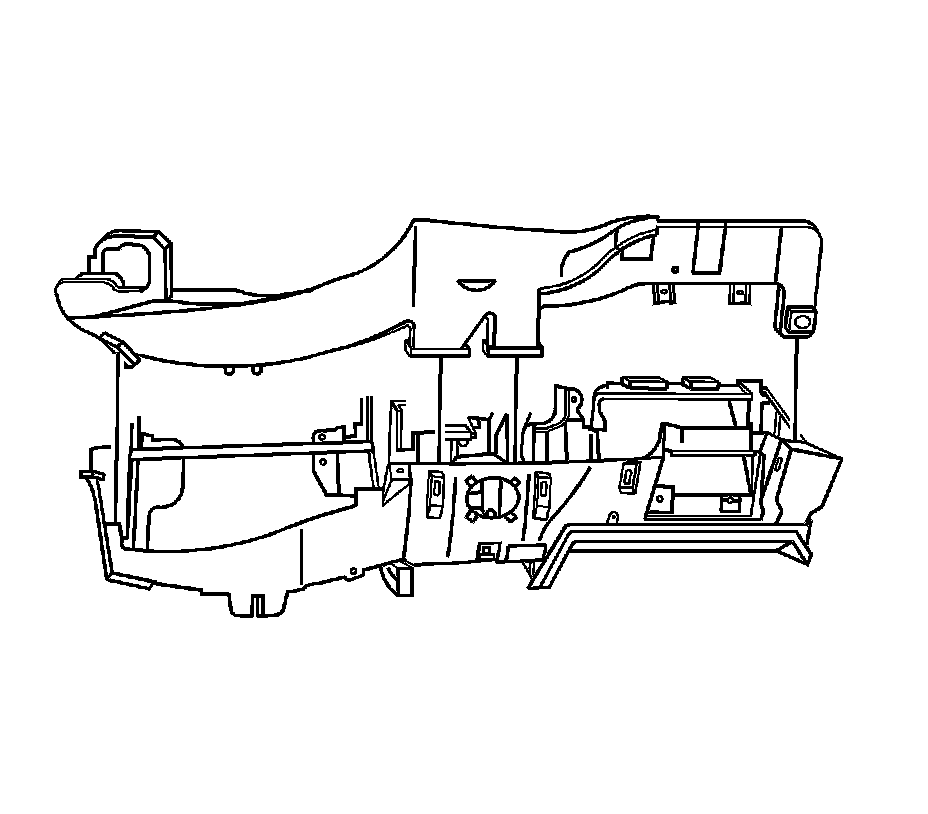

2. Remove the screws retaining the air distribution duct to the underside of the I/P assembly.
3. Remove the air distribution duct.
4. Remove the DTM sensors from the air distribution duct.

Installation Procedure

1. Install the DTM sensors to the air distribution duct.




2. Install the air distribution duct into position on the I/P assembly.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the retaining screws to the underside of the I/P assembly and tighten to 1.6 Nm (14 lb in).
4. Install the I/P assembly. Refer to Instrument Panel Carrier Replacement (Service and Repair).
