Air Door Actuator / Motor: Locations

Instrument Panel/Center Console Component Views

Instrument Panel




1 - Recirculation Actuator

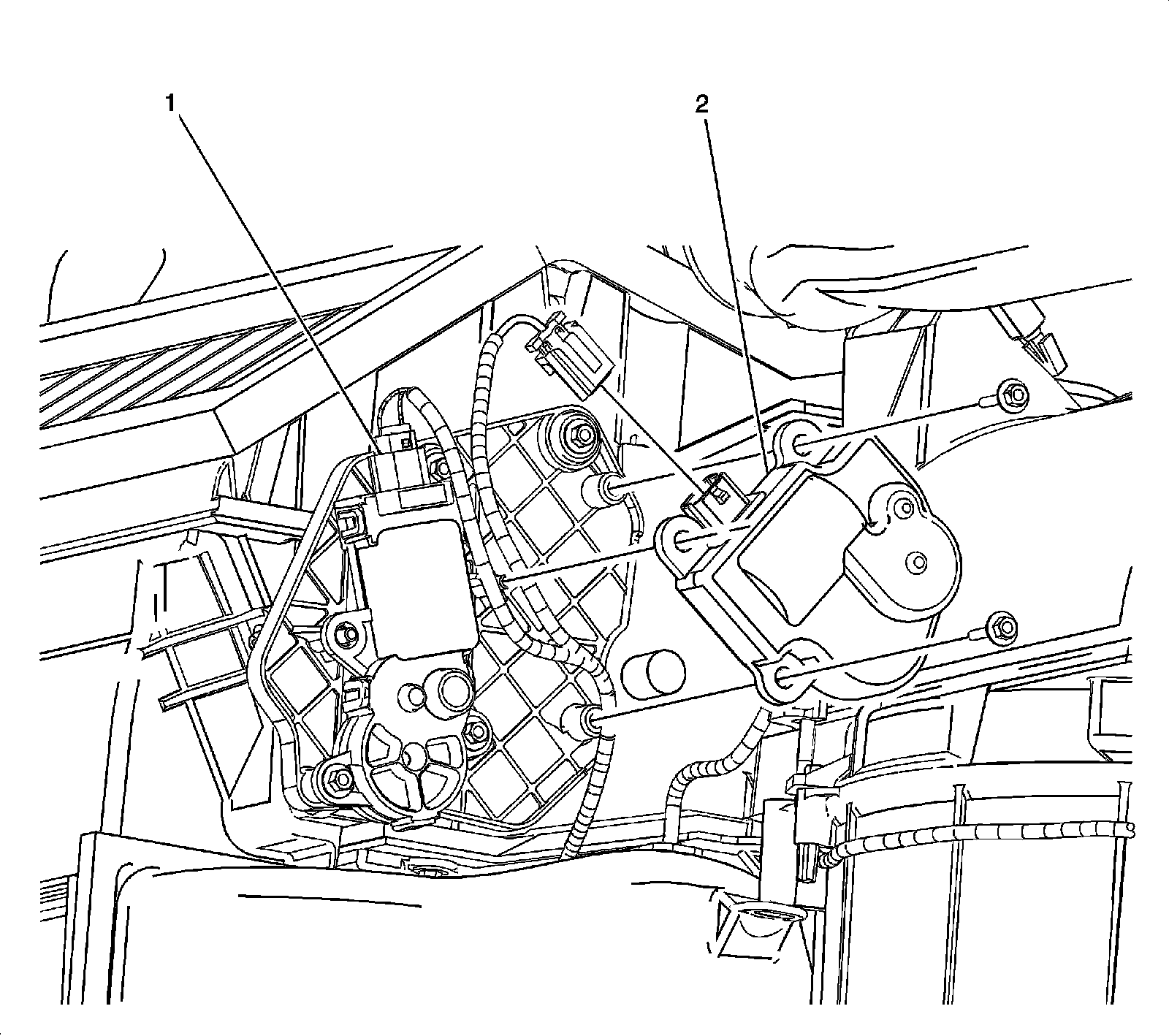

Right Side of HVAC Module




1 - Mode Actuator
2 - Air Temperature Actuator - Right
