76. Oil Pan Disassemble

Oil Pan Disassemble

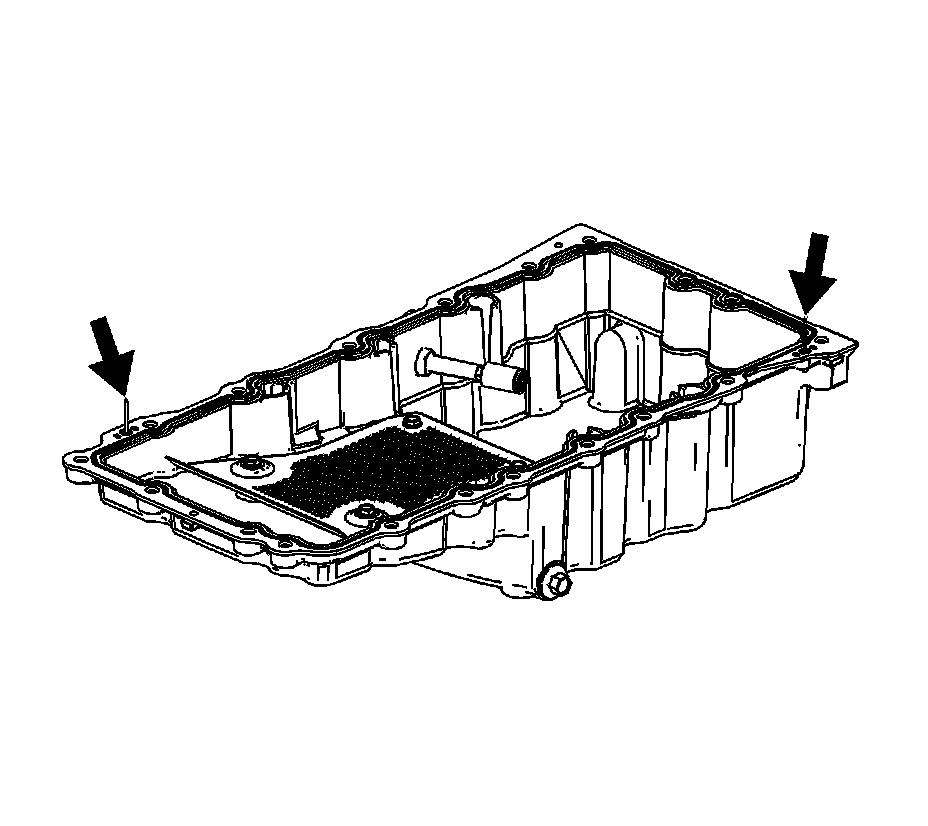

1. Drill out the oil pan gasket rivets.

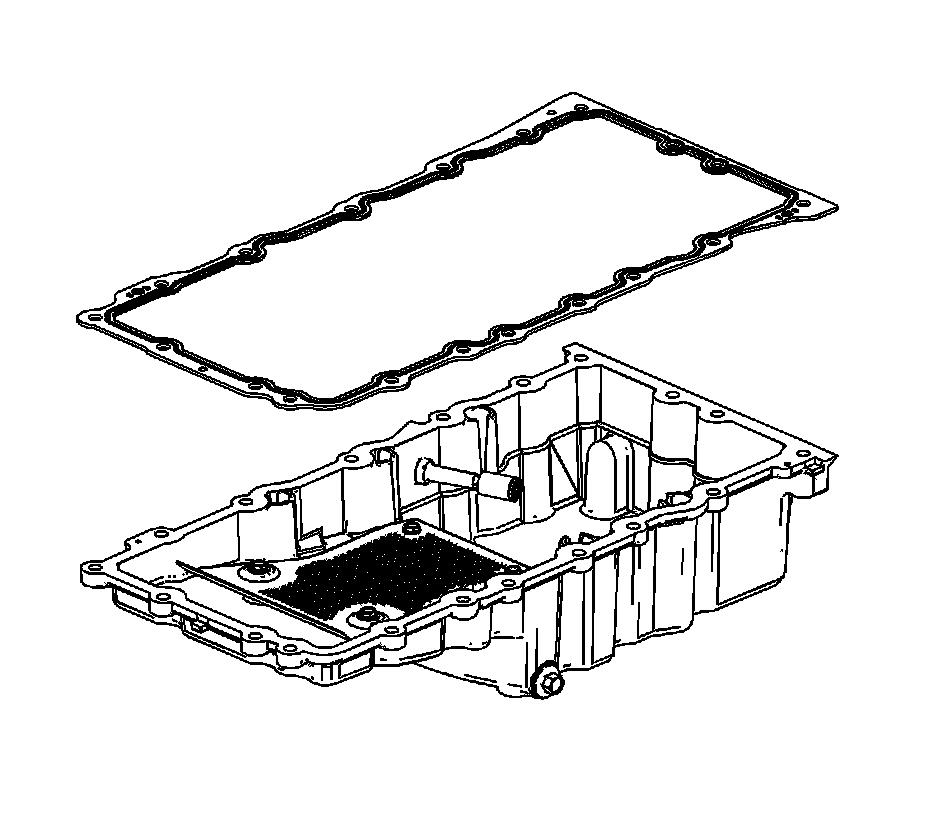

2. Remove and discard the oil pan gasket.

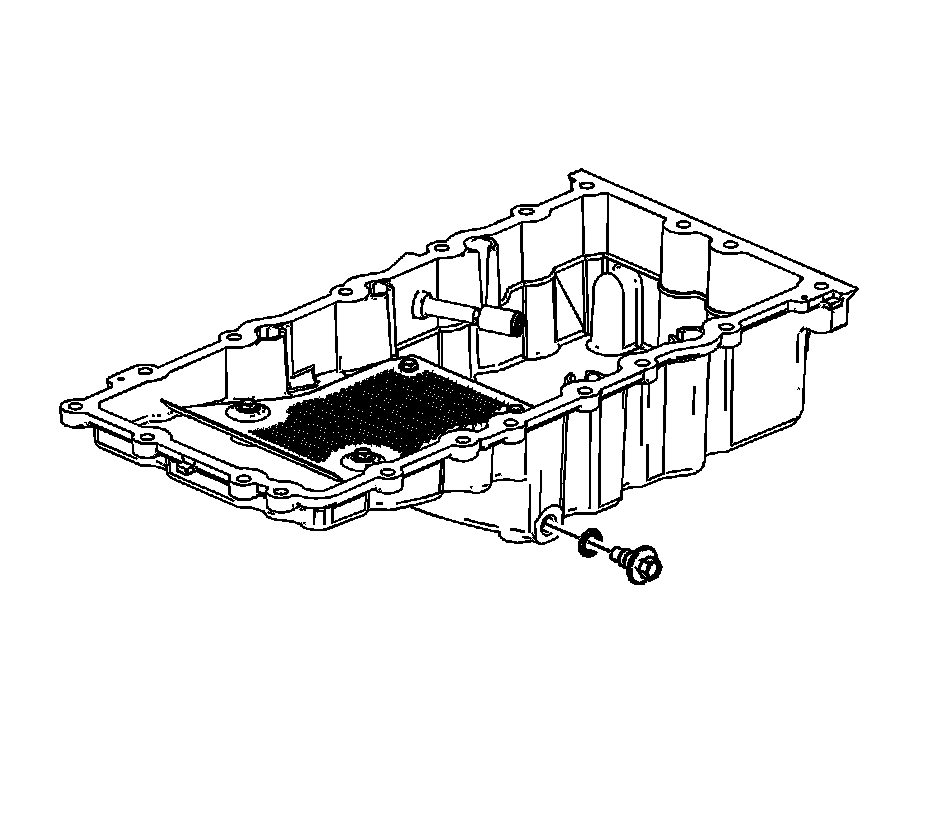

3. Remove the oil drain plug.

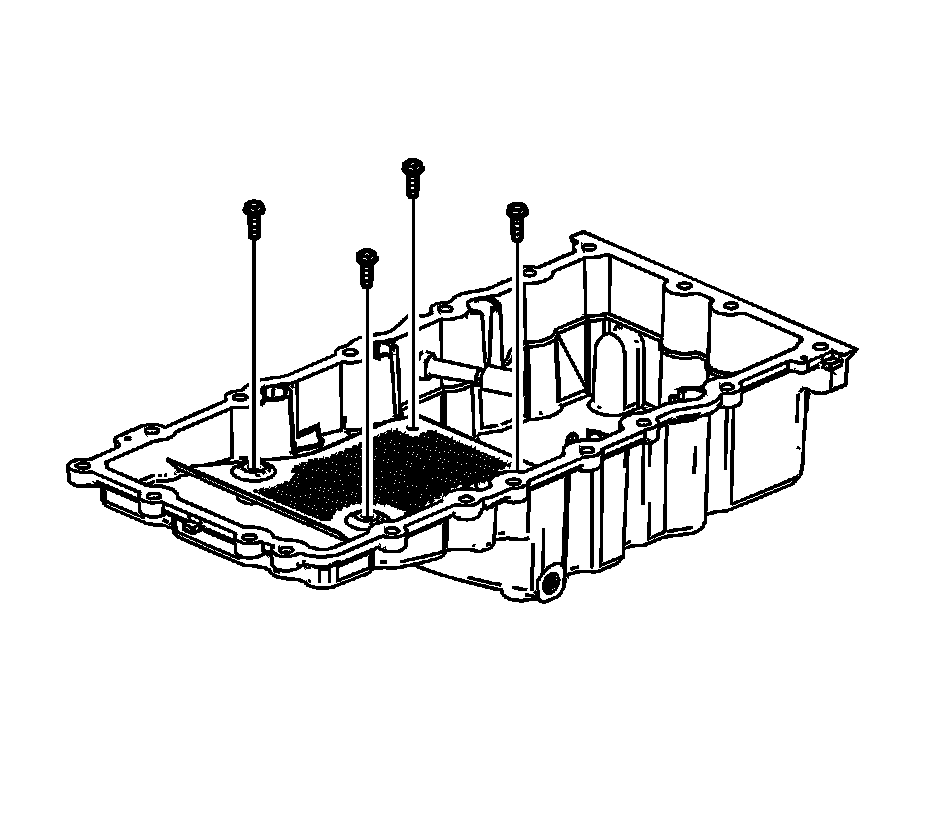

4. Remove the oil pan baffle bolts.

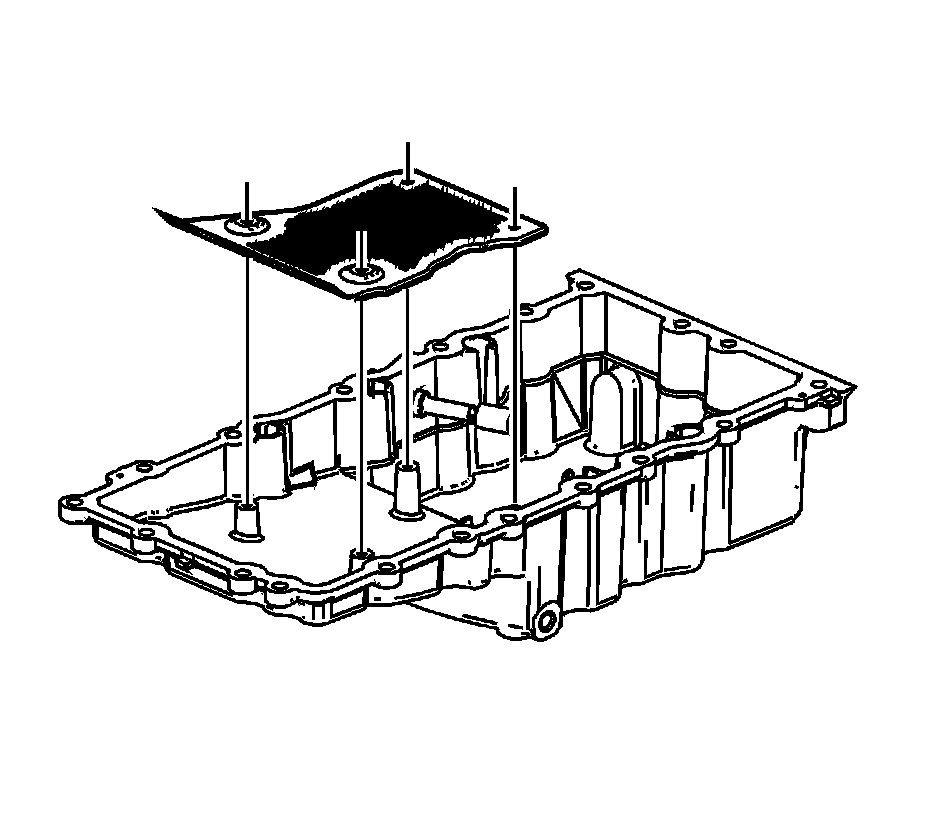

5. Remove the oil pan baffle.

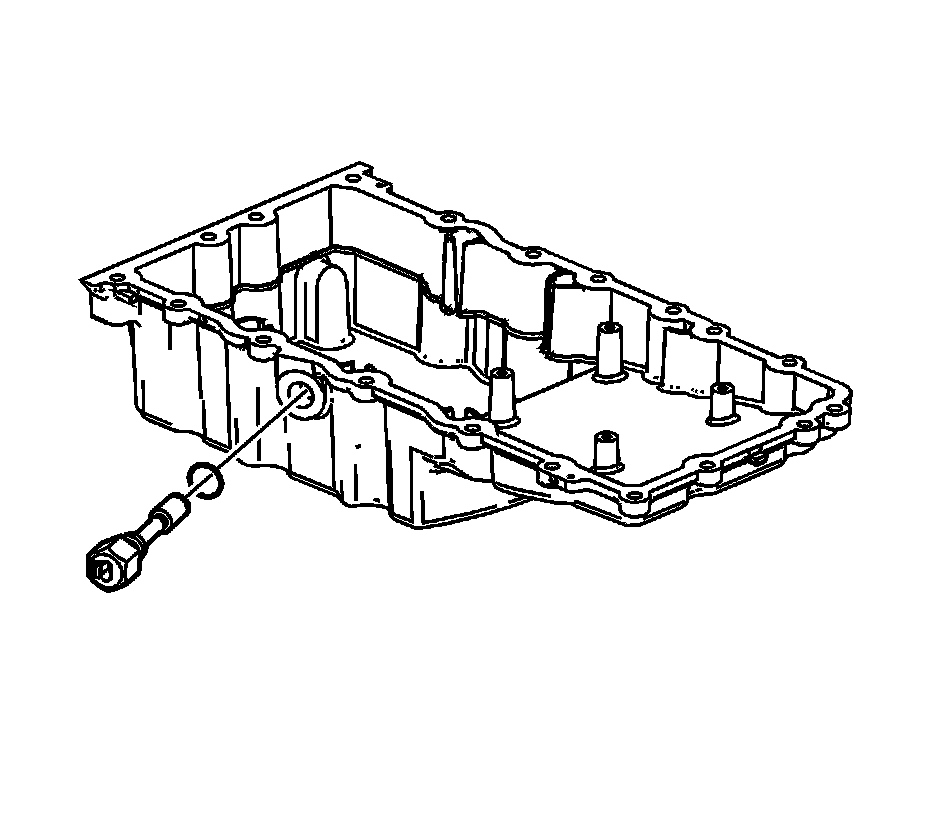

6. Remove the oil pan oil level sensor.
7. Remove the oil level sensor and oil drain plug O-rings and discard.
