6. Drive Belt Idler Pulley Removal

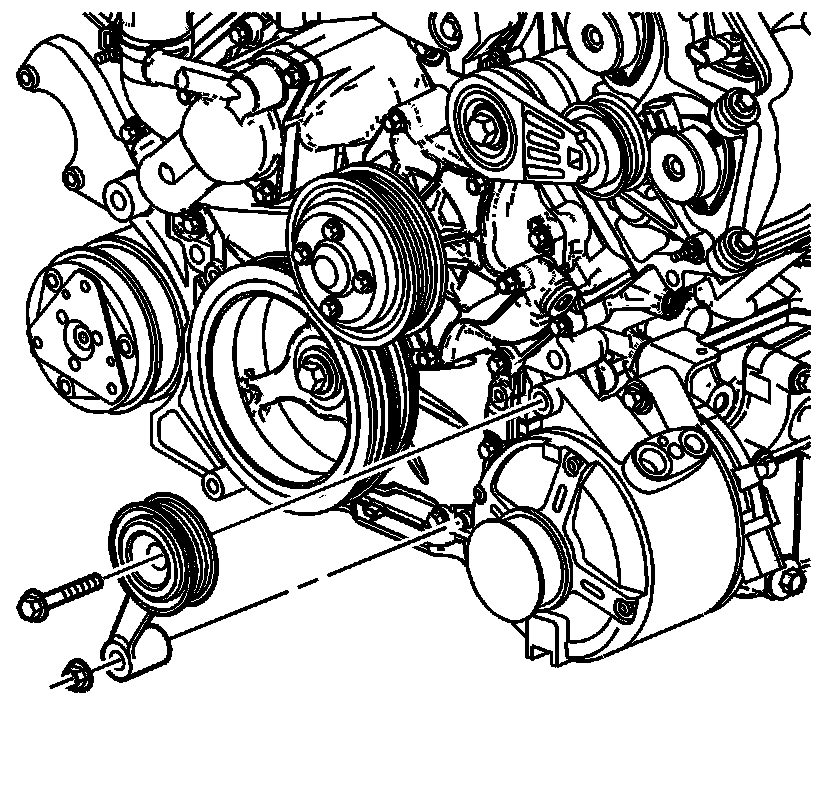

Drive Belt Idler Pulley Removal




1. Loosen the drive belt idler pulley bolt.
2. Remove the drive belt idler pulley bracket nut.
3. Remove the drive belt idler pulley.
