5. Power Steering Pump Removal




Power Steering Pump Removal

Tool Required

J 25034-C Pulley Remover

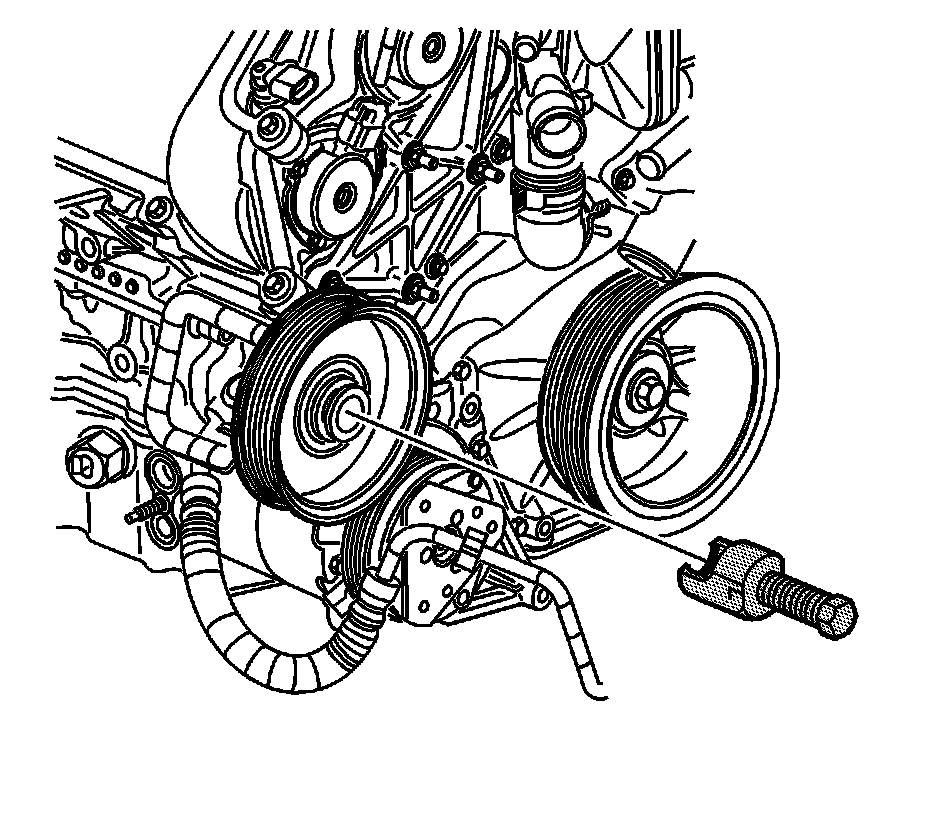

1. If necessary, using the J 25034-C , remove the power steering pump pulley in order to access the power steering pump mounting bolts.

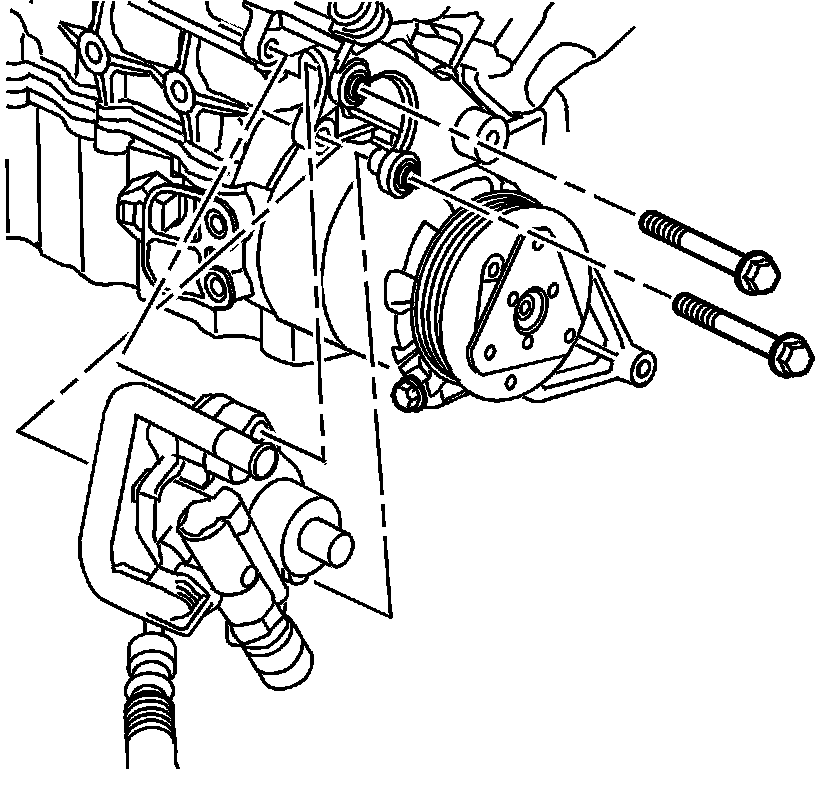

2. Remove the power steering pump mounting bolts.
3. Remove the power steering pump.
