Engine Mount Bracket Replacement - Right




Engine Mount Bracket Replacement - Right Side

Removal Procedure

1. Remove the right engine mount. Refer to Engine Mount Replacement - Right Side (Service and Repair).

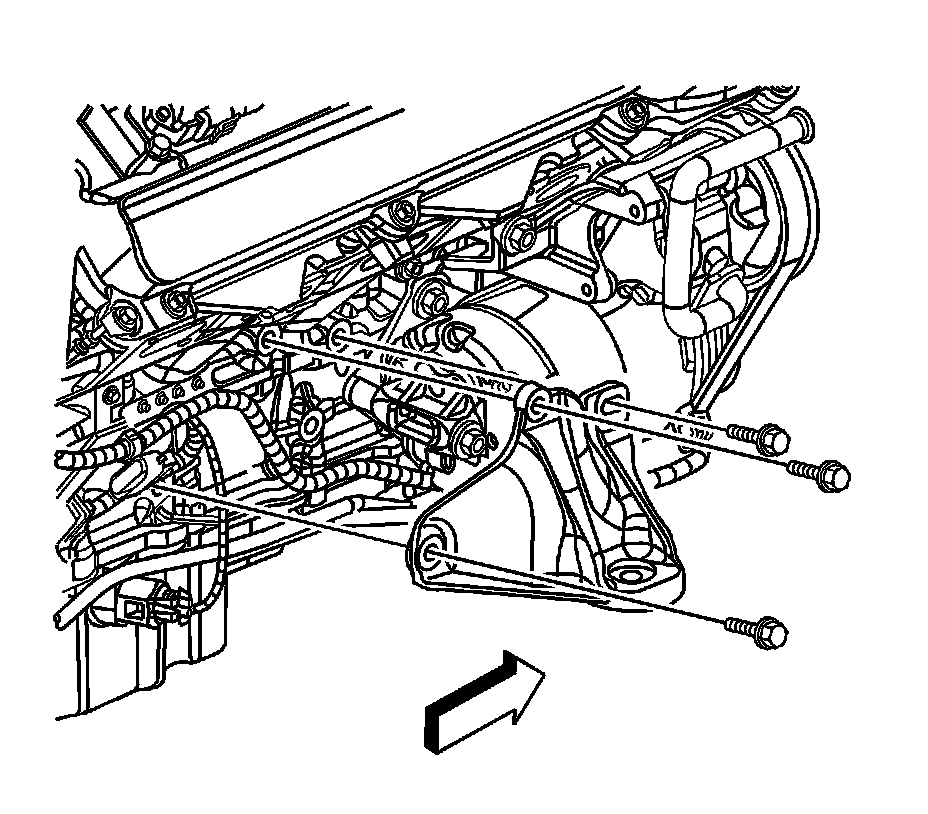

2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.

Installation Procedure

1. Install the engine mount bracket.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the engine mount bracket bolts and tighten to 58 Nm (43 lb ft).
3. Install the right engine mount. Refer to Engine Mount Replacement - Right Side (Service and Repair).
