Engine Mount Bracket Replacement - Left




Engine Mount Bracket Replacement - Left Side

Removal Procedure

1. Remove the left engine mount. Refer to Engine Mount Replacement - Left Side (Service and Repair).

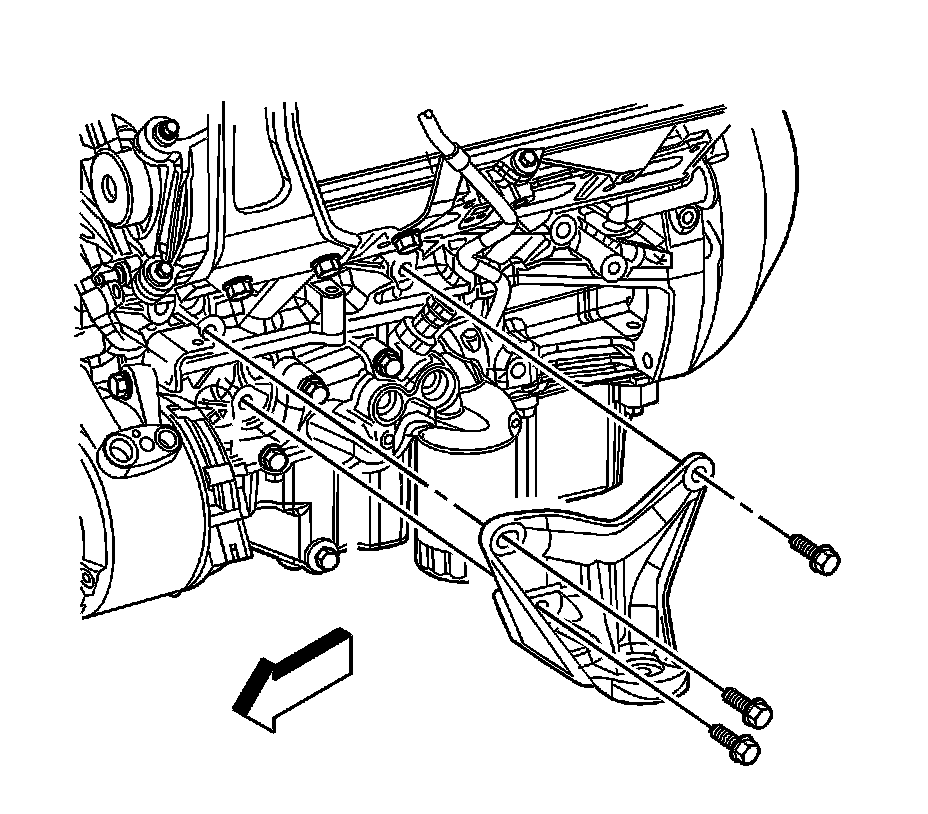

2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.

Installation Procedure

1. Install the engine mount bracket.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the engine mount bracket bolts and tighten to 58 Nm (43 lb ft).
3. Install the left engine mount. Refer to Engine Mount Replacement - Left Side (Service and Repair).
