Master Splice List
Master Splice List
Master Electrical Component List
X960 (-T79) (2 Cavities) - J131:

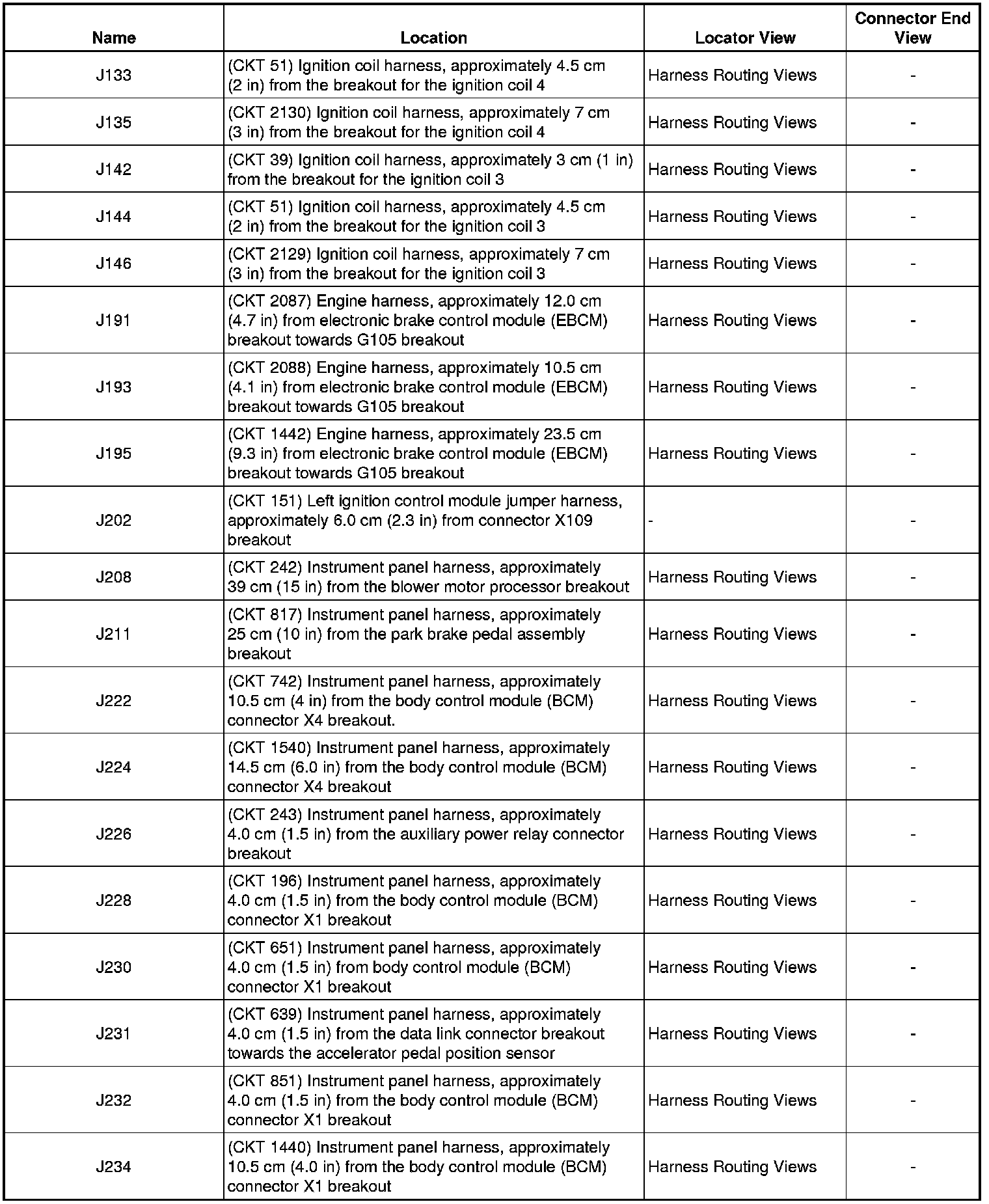

J133 - J234:

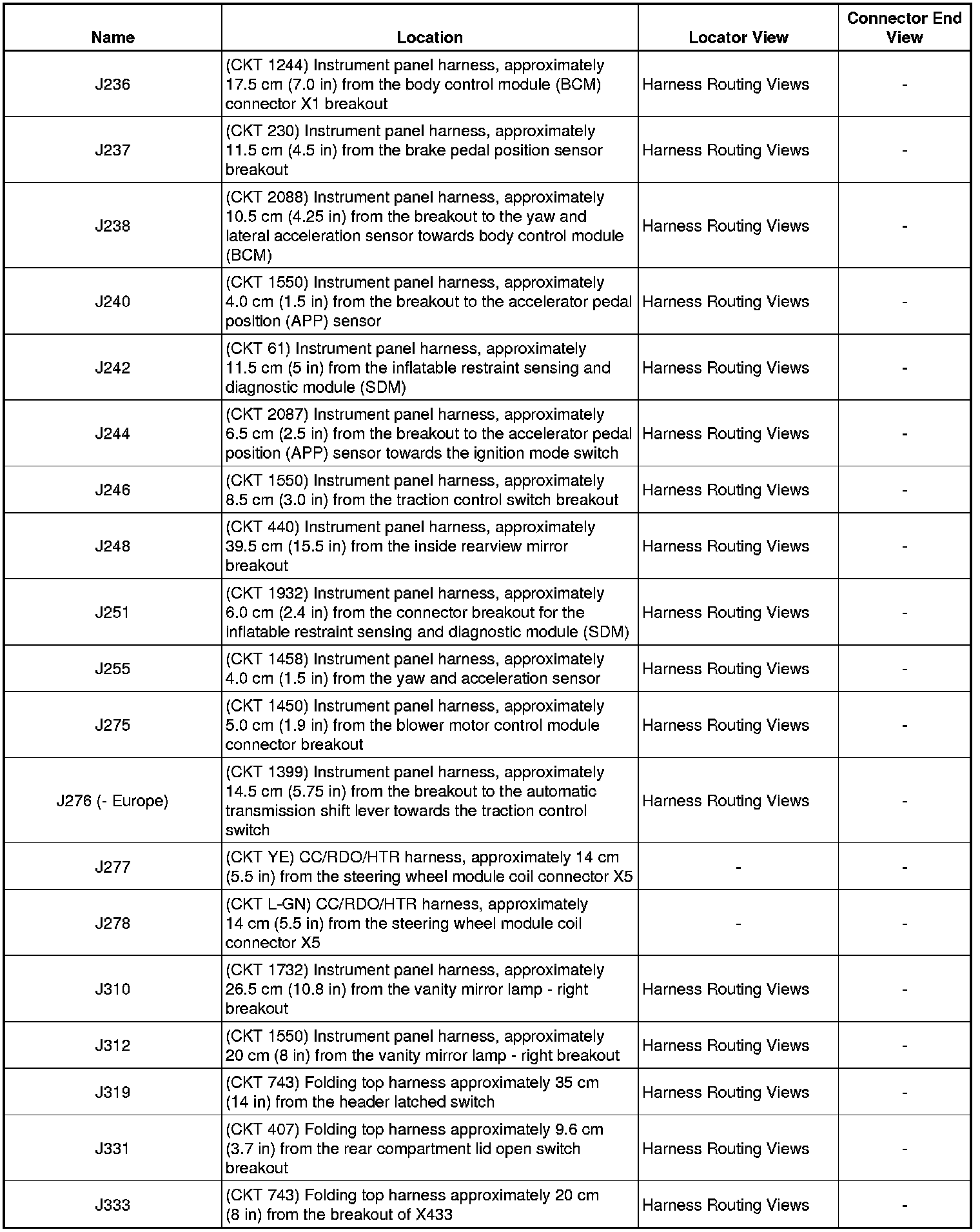

J236 - J333:

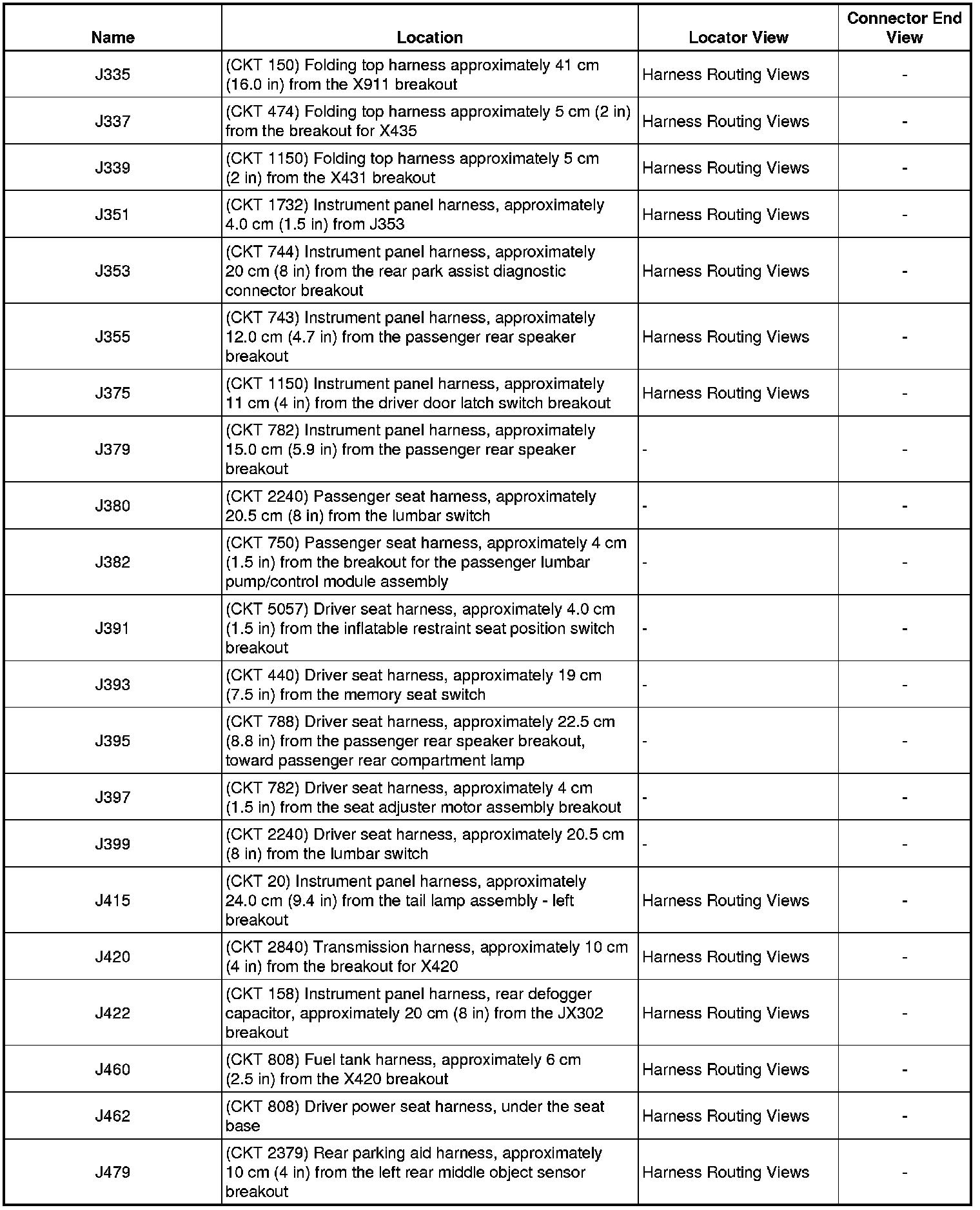

J335 - J479:

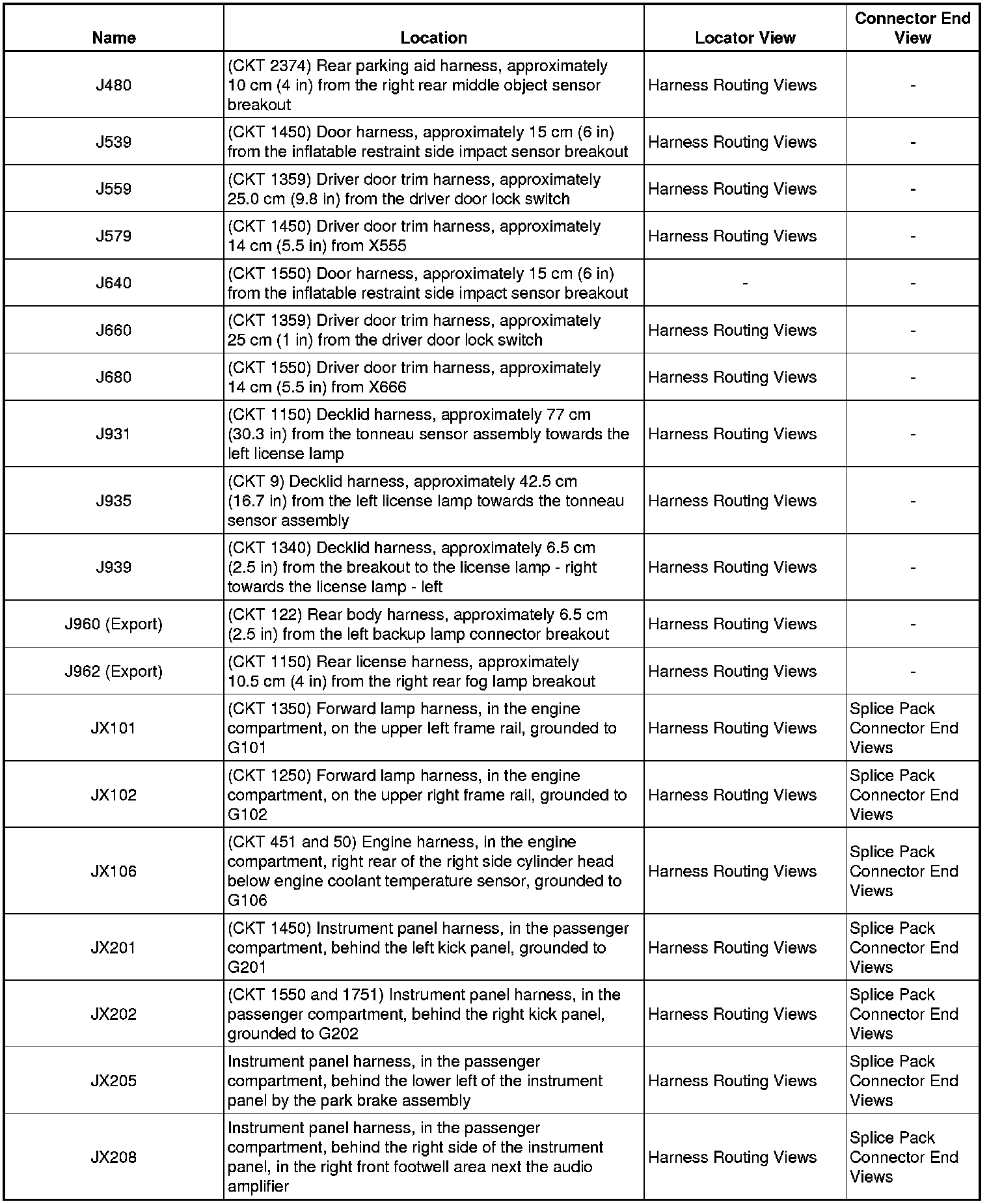

J480 - JX208:

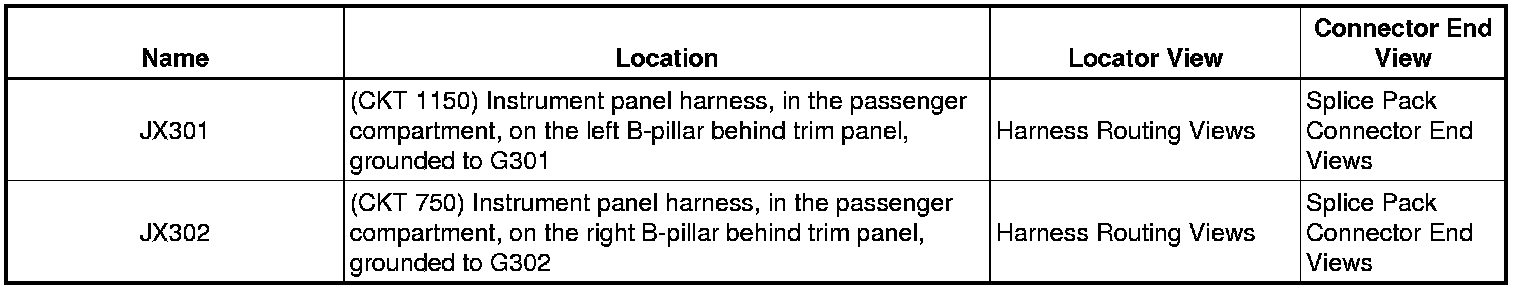

JX301 - JX302:
