Instrument Panel Body Harness Splices

Harness Routing Views

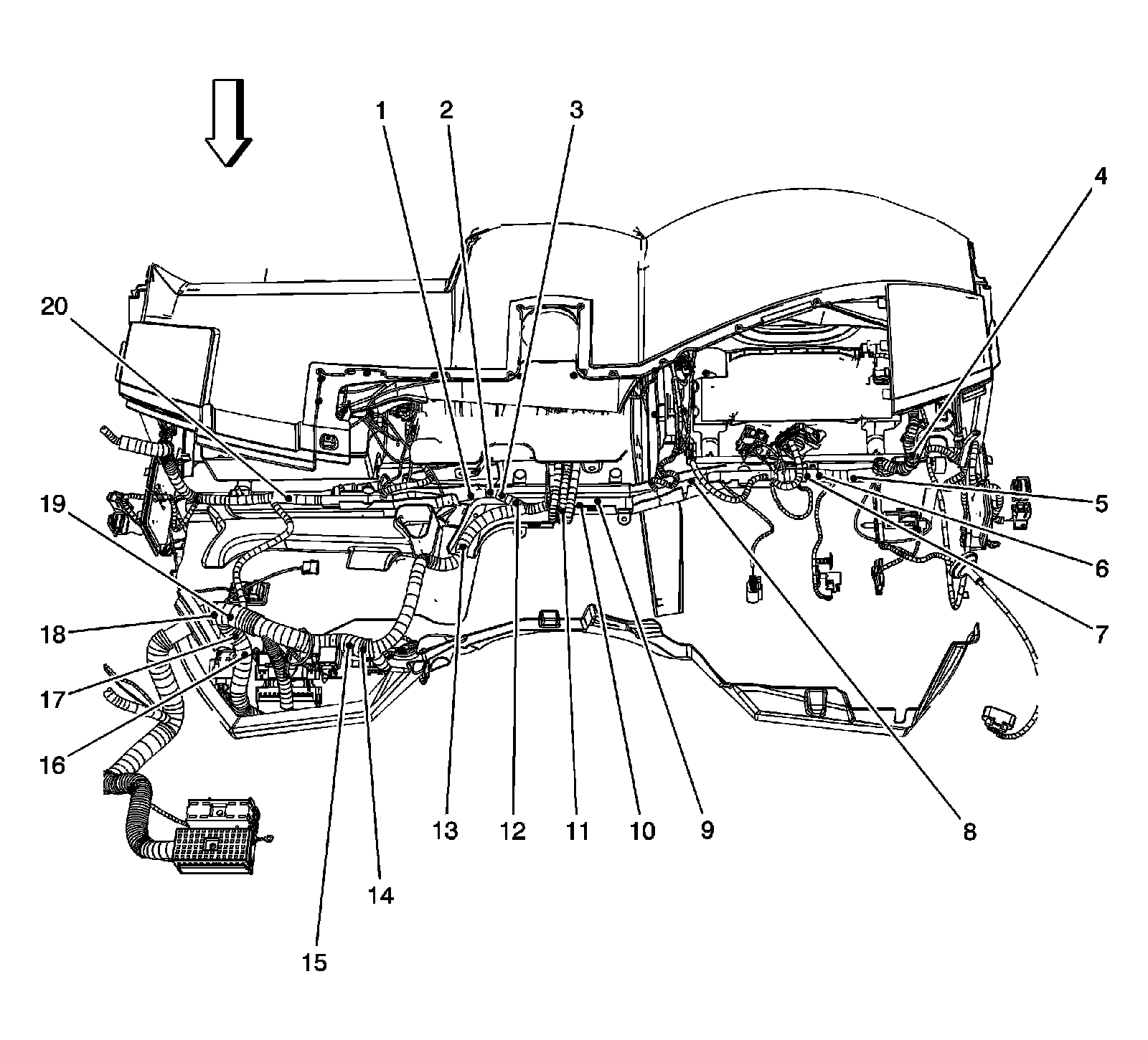

Instrument Panel Body Harness Splices




1 - J238
2 - J236
3 - J234
4 - J211
5 - J237
6 - J231
7 - J240
8 - J244
9 - J251
10 - J242
11 - J255
12 - J232
13 - J248
14 - J228
15 - J230
16 - J222
17 - J224
18 - J226
19 - J227
20 - J275
