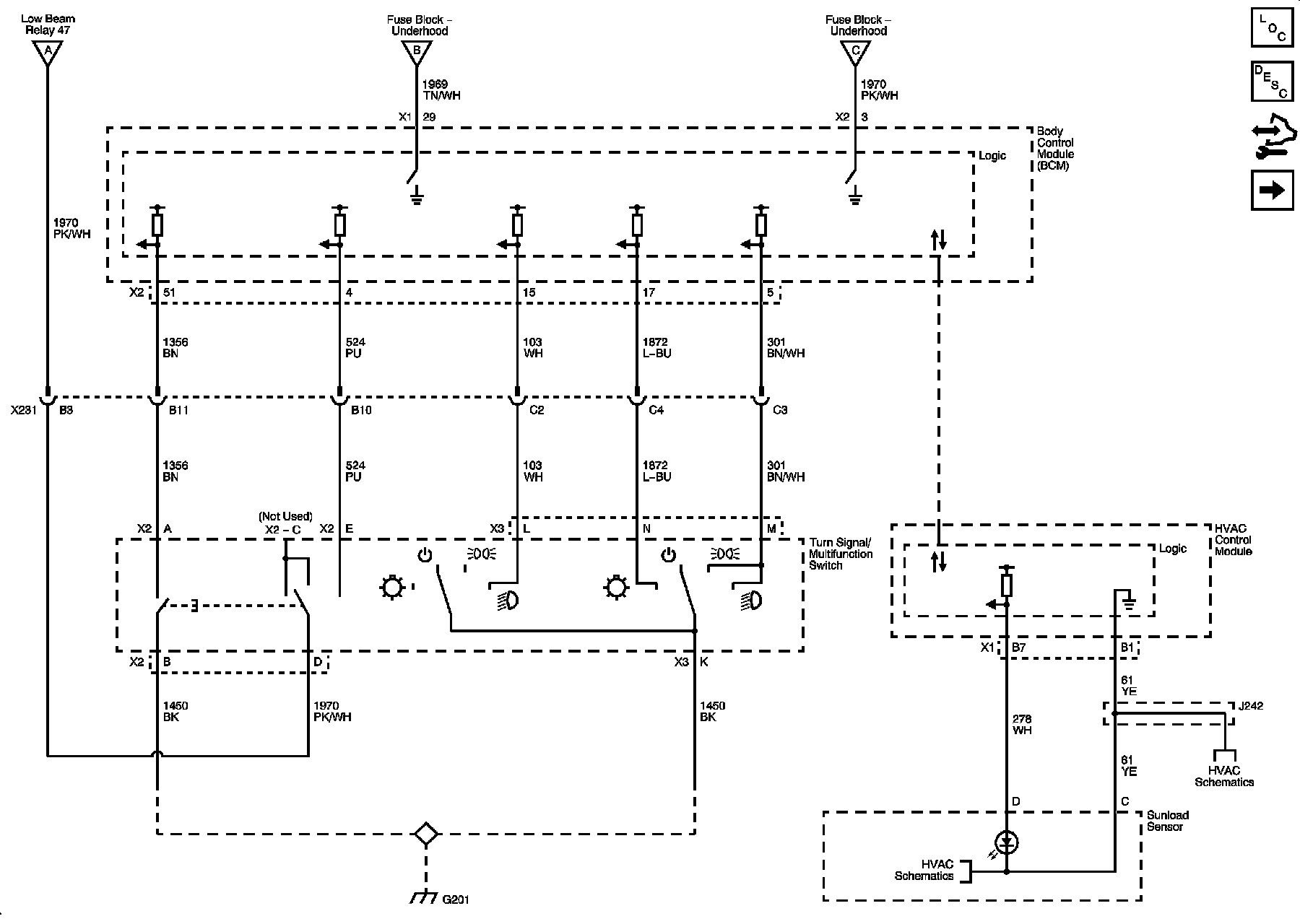

Headlights/Daytime Running Lights (DRL) Schematic 1




Headlights/Daytime Running Lights (DRL) Schematics

Headlamp/DRL Control
