Wheel Speed Sensor
>>

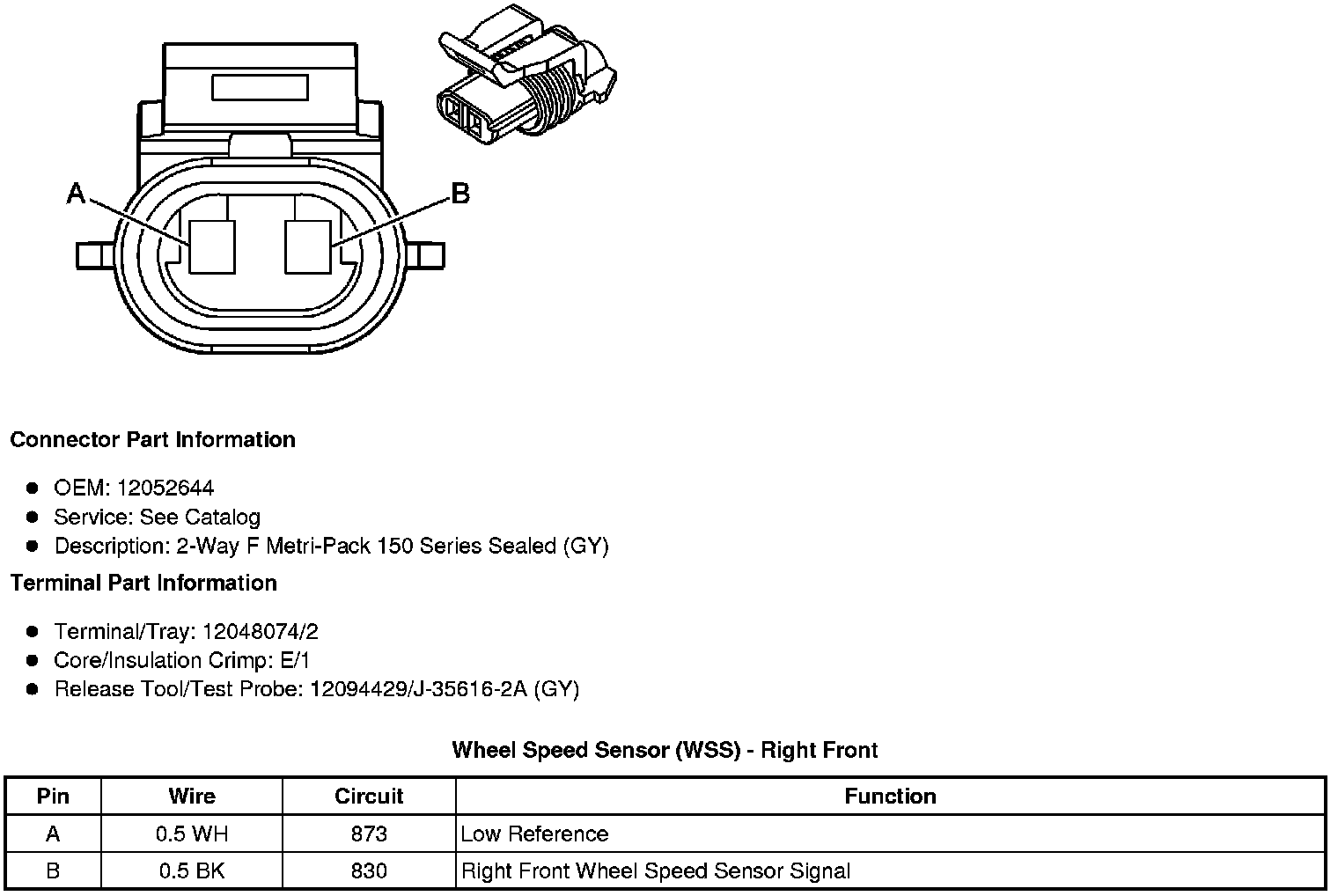

Wheel Speed Sensor (WSS) - Right Front
Wheel Speed Sensor (WSS) - Right Front
Component Connector End Views
Wheel Speed Sensor
(WSS) - Right Front
