Bank 2 Intake

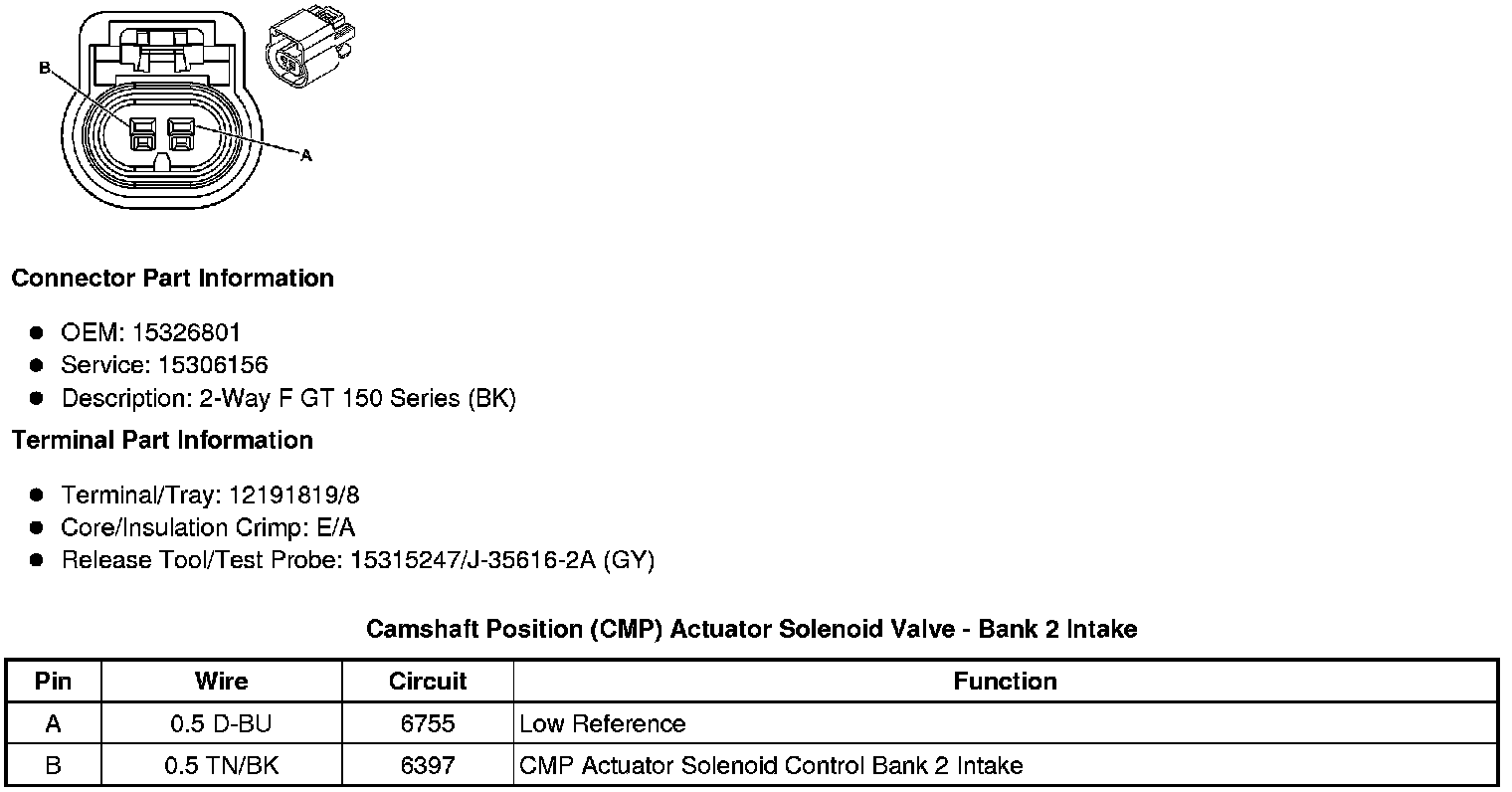

Component Connector End Views

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake
