Repeater Lamp - Left Front (T90)
Repeater Lamp - Left Front (T90)

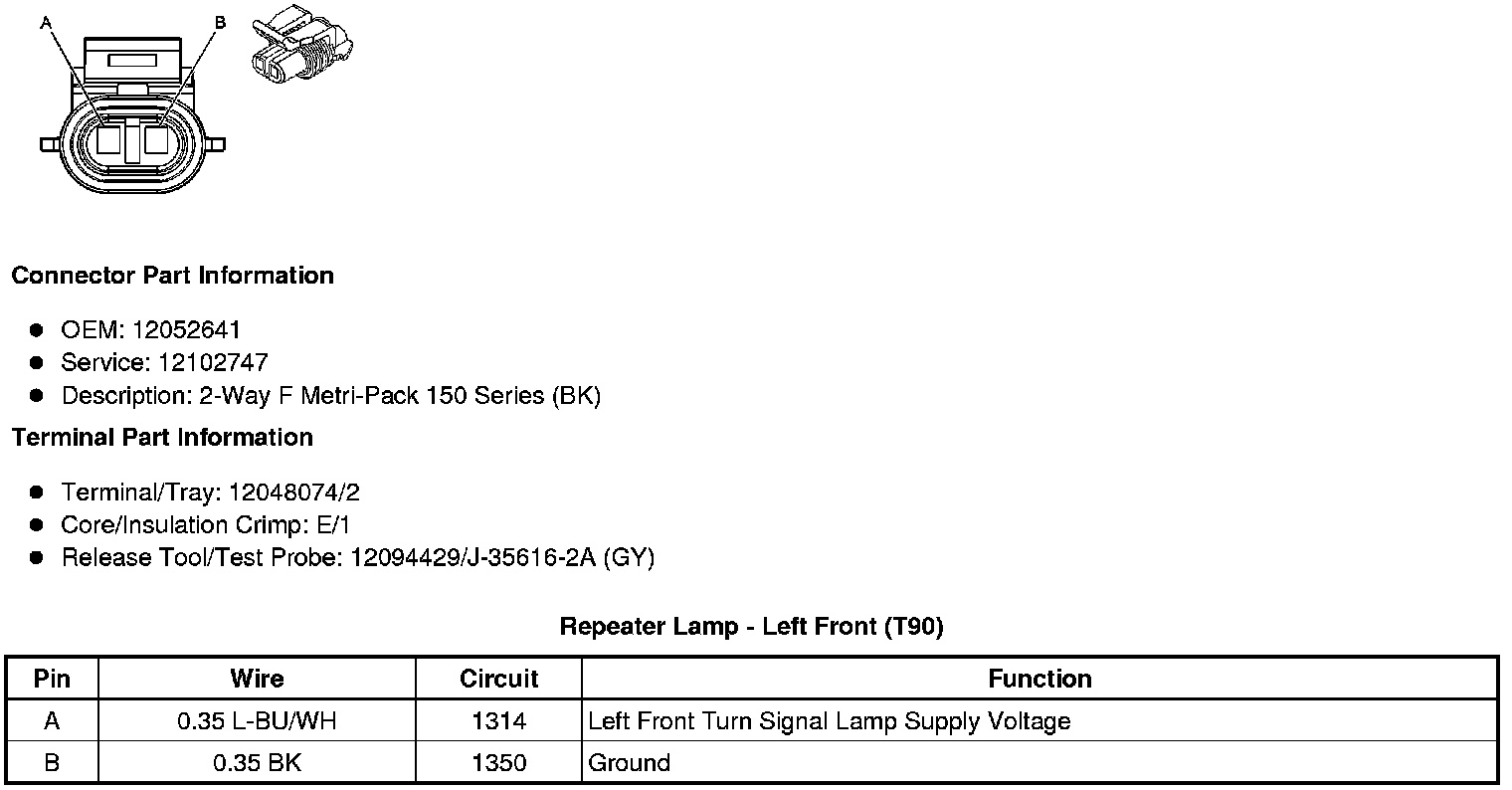

Component Connector End Views
Repeater Lamp - Left Front (T90)
