Speaker
>>
Speaker - Right Front Subwoofer

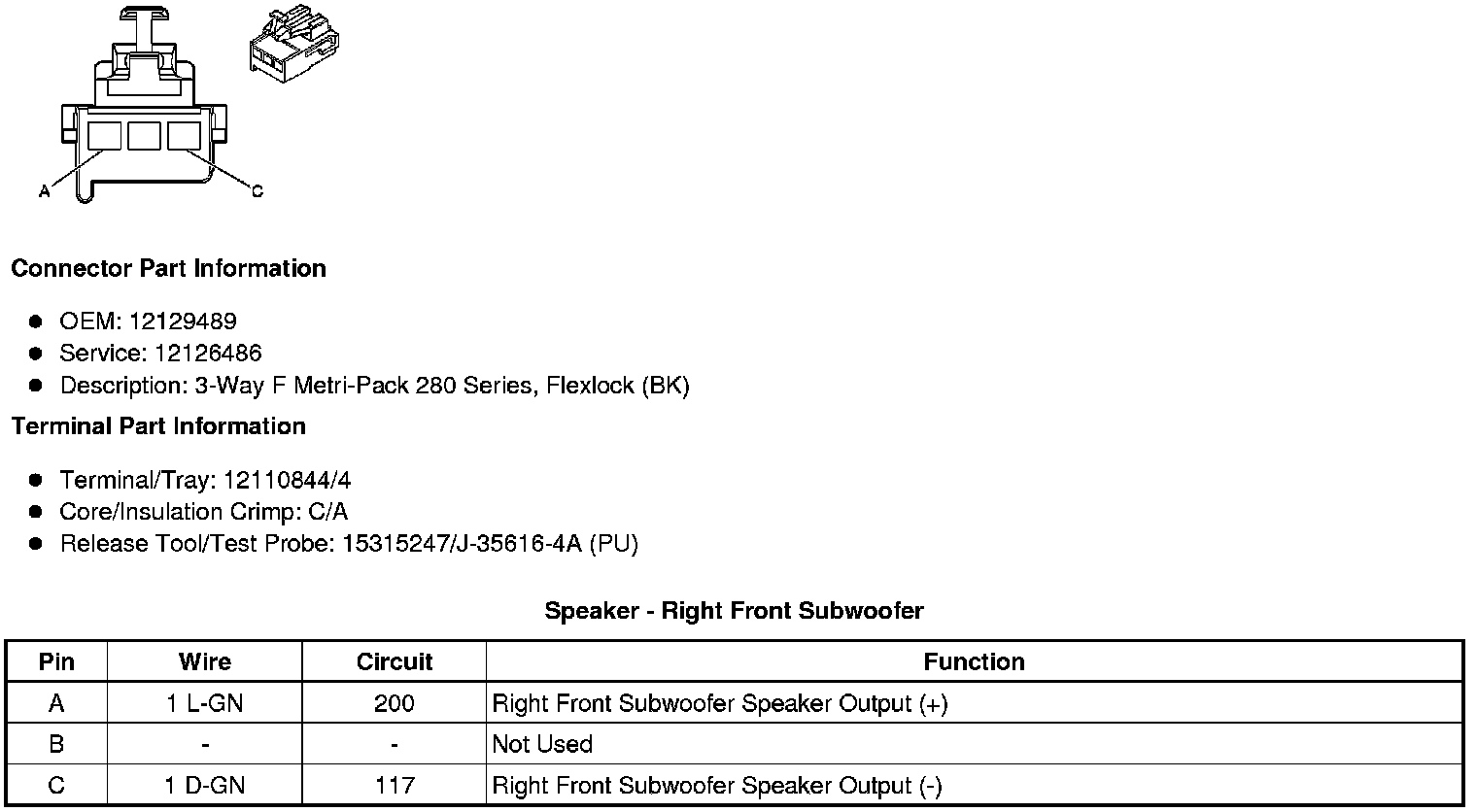

Speaker - Right Front Subwoofer
Component Connector End Views
Speaker - Right Front Subwoofer
