Seat Cushion Ventilation Heating and Cooling Module - Passenger

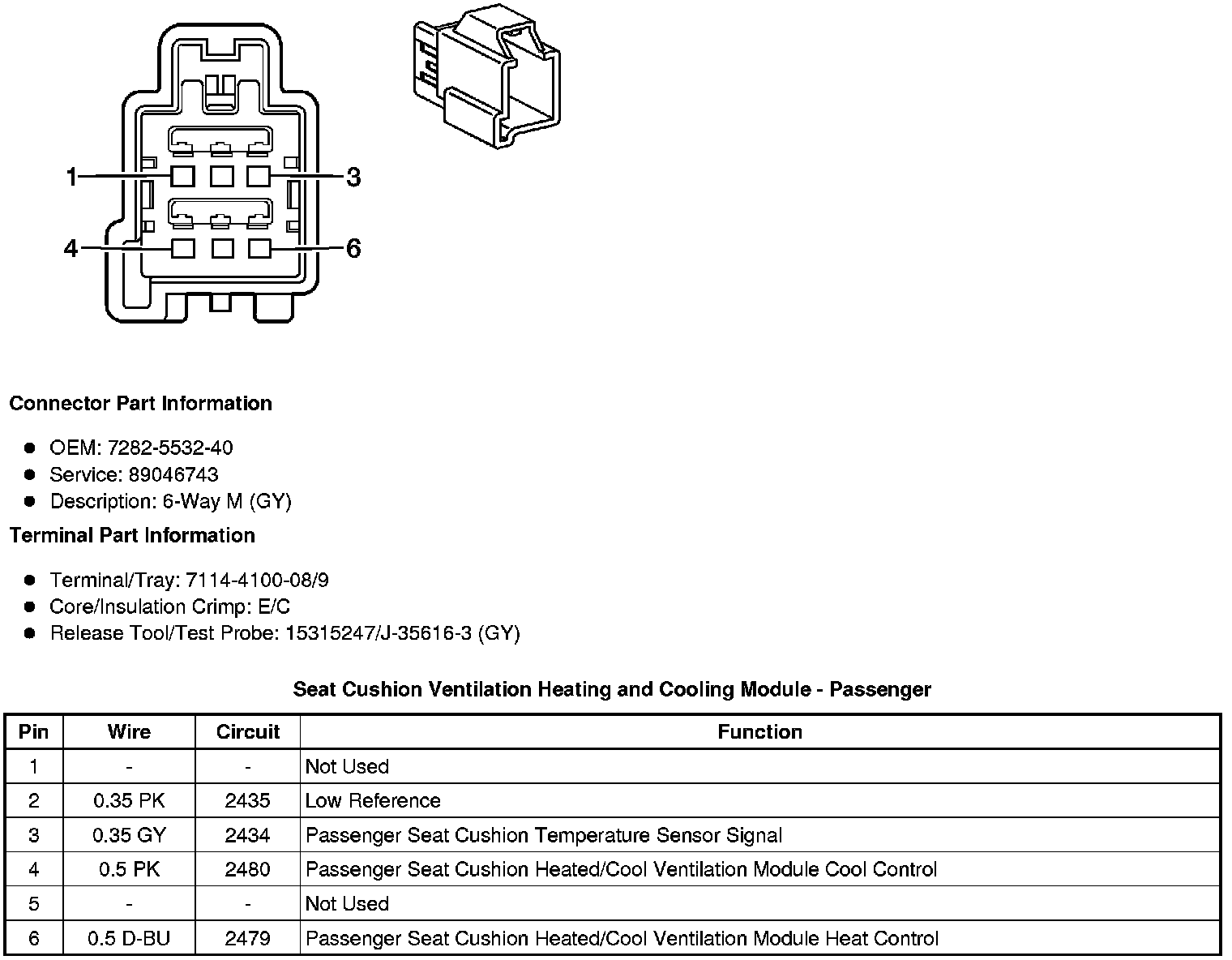

Component Connector End Views

Seat Cushion Ventilation Heating and Cooling Module - Passenger
