Inflatable Restraint Seat Position Sensor - Passenger

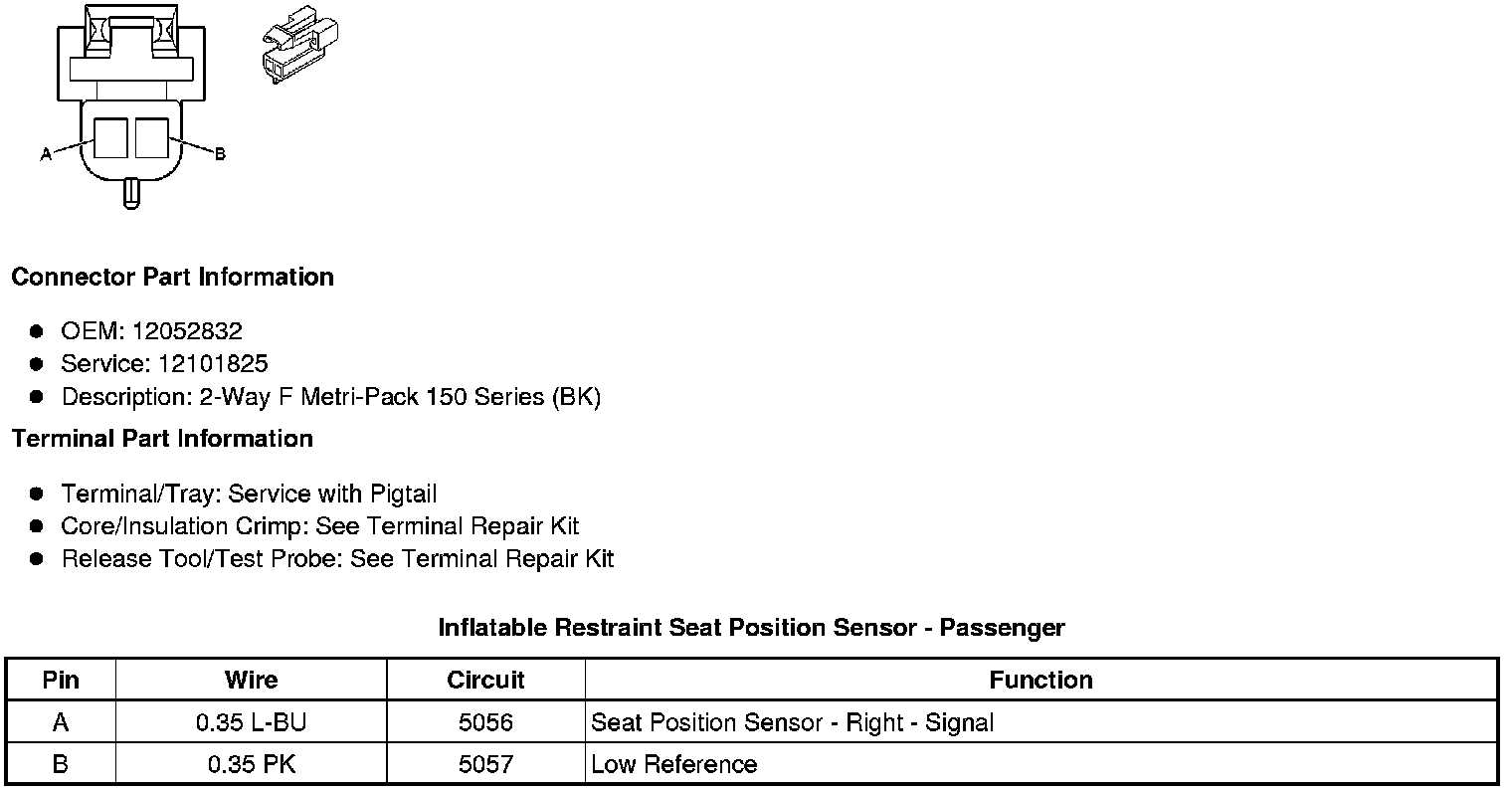

Component Connector End Views

Inflatable Restraint Seat Position Sensor - Passenger
