Inflatable Restraint Seat Belt Tension Sensor - Passenger

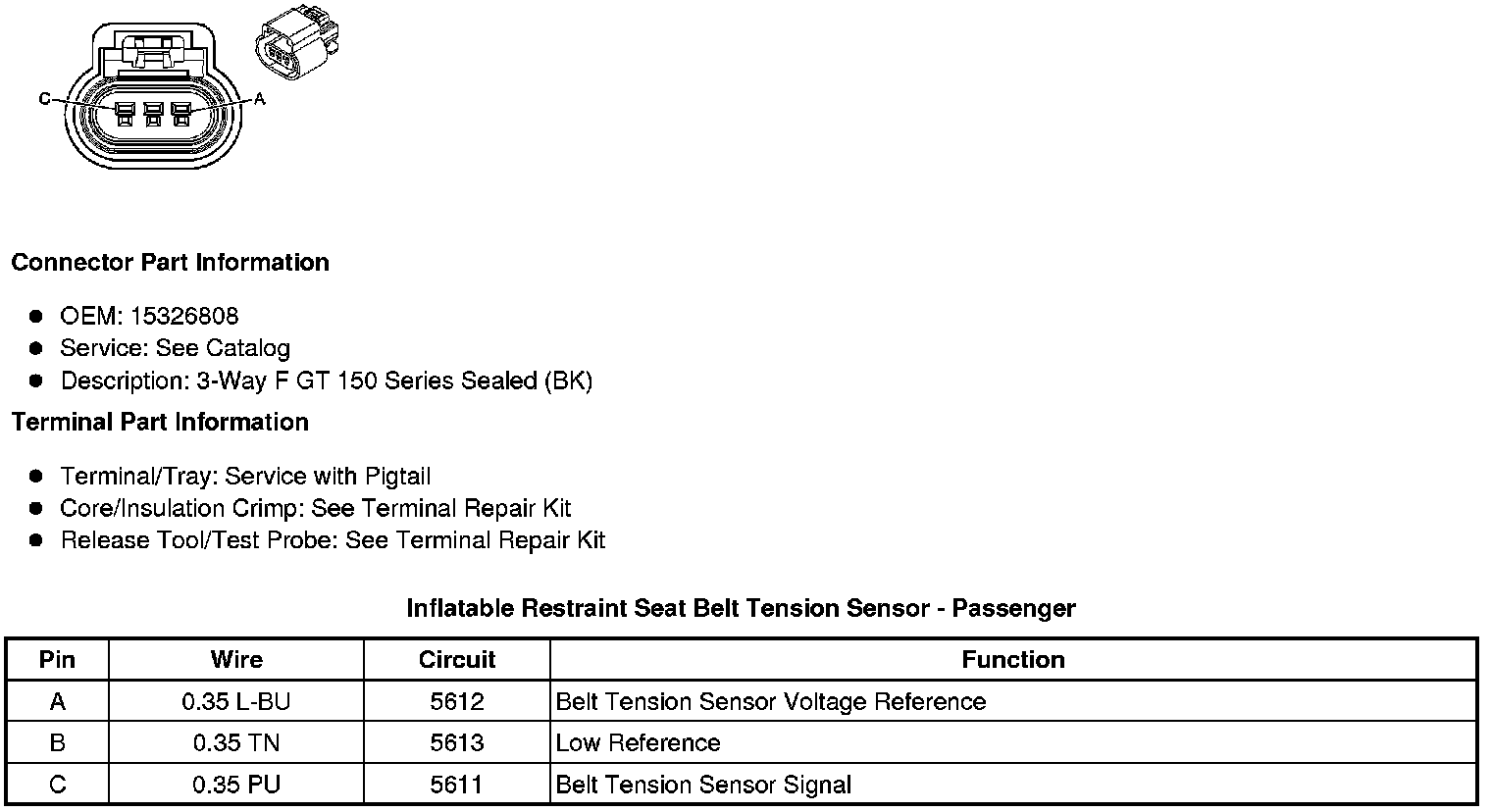

Component Connector End Views

Inflatable Restraint Seat Belt Tension Sensor - Passenger
