Seat Belt Switch - Passenger
Seat Belt Switch - Passenger

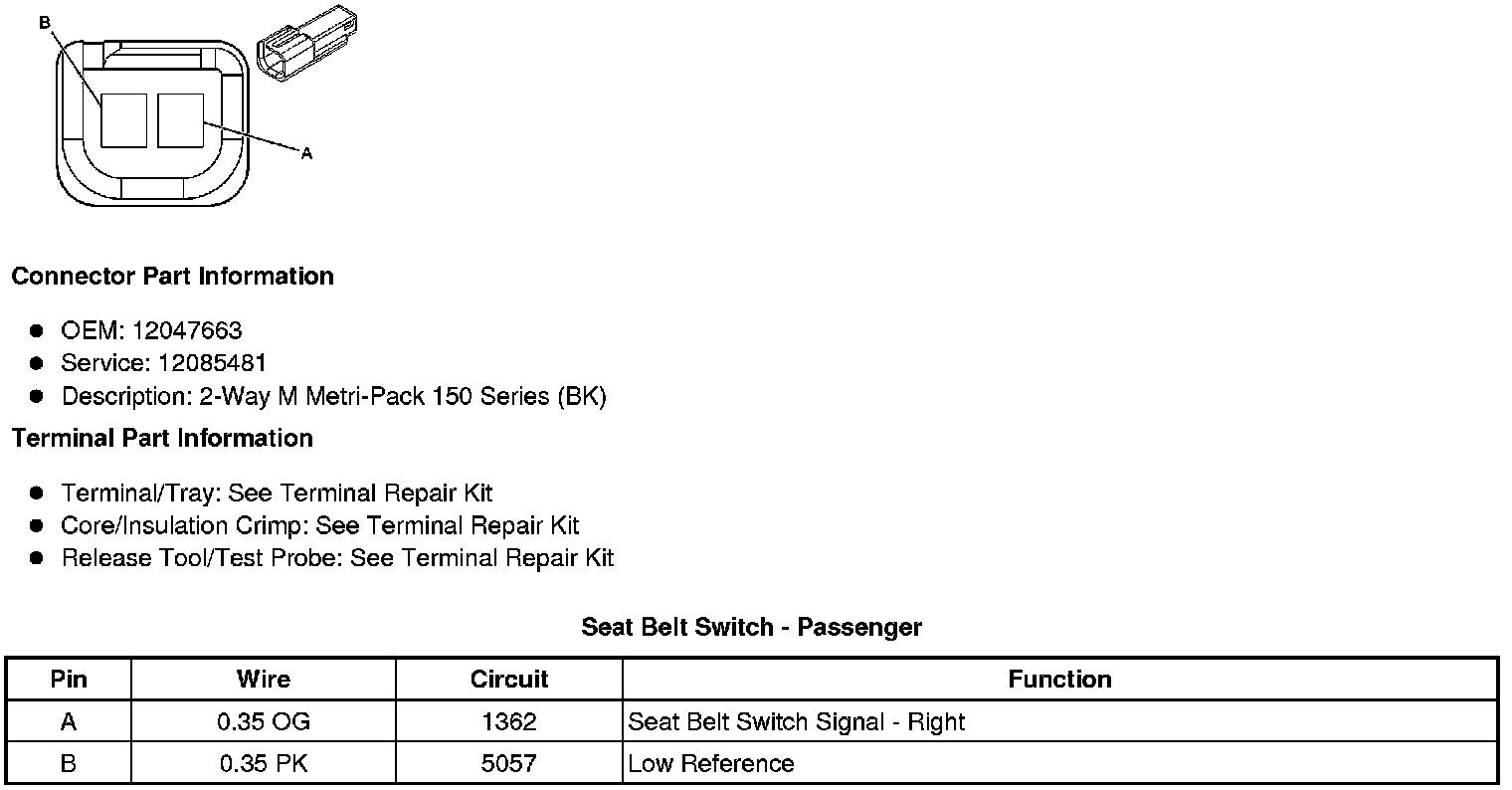

Component Connector End Views
Seat Belt Switch - Passenger
