Seat Lumbar Adjuster Switch - Driver Upper

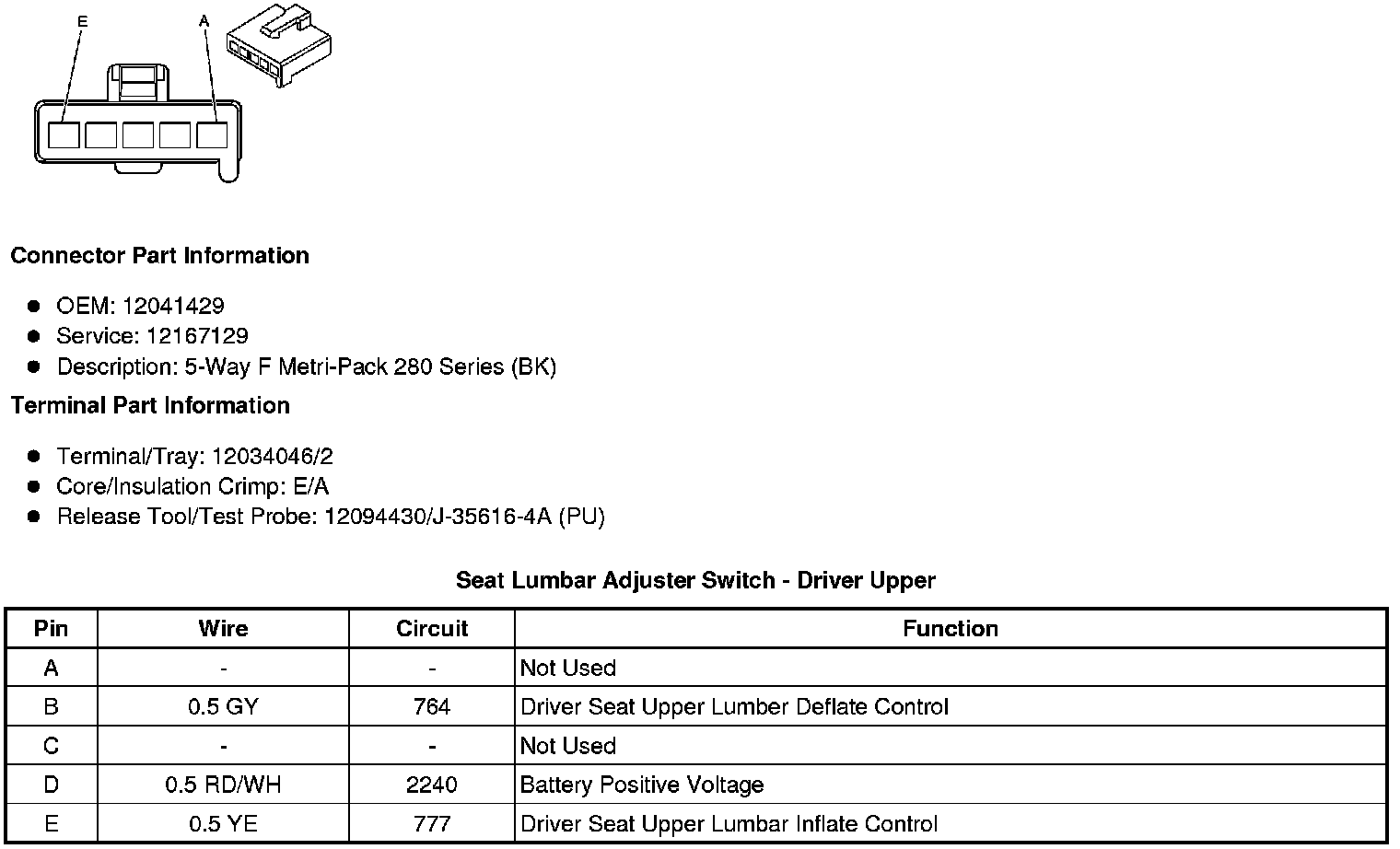

Component Connector End Views

Seat Lumbar Adjuster Switch - Driver Upper
